Diagnostic Test

  1. 1) ACTIVE DTC
    NOTE: Make sure the Stop Lamp Switch is adjusted properly before continuing.
    NOTE: Make sure the Stop Lamp Switch is properly wired, such as (B15) Brake Switch No. 1 and (B16) Brake Switch No. 2 Signal circuit are not switched at the harness connector.

    Ignition on, engine not running.

    With a scan tool, select View DTCs.

    Is the DTC Active at this time?

    Yes

    1. Go to  2).

    No

    1. Refer to INTERMITTENT CONDITION Diagnostic Procedure.
  2. 2) (F942) FUSED IGNITION SWITCH CIRCUIT
    Fig 1: Checking Fused Ignition Switch Output Circuit
    GC0027163Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Stop Lamp Switch harness connector.

    Using a 12-volt test light connected to ground, probe the (F942) Fused Ignition Switch Output circuit in the Stop Lamp Switch harness connector.

    Does the test light illuminate brightly?

    Yes

    1. Go to  3).

    No

    1. Repair the open or short to ground in the (F942) Fused Ignition Switch Output circuit. Inspect the related fuse and repair as necessary.
    2. Perform POWERTRAIN VERIFICATION TEST .
  3. 3) STOP LAMP SWITCH

    Turn the ignition off.

    Measure the resistance between the (F942) Fused Ignition Switch Output circuit terminal and the (B16) Brake Switch No. 2 Signal circuit terminal in the Stop Lamp Switch.

    Measure the resistance between the (Z904) Ground circuit terminal and the (B15) Brake Switch No. 1 Signal terminal in the Stop Lamp Switch.

    Apply and release the Stop Lamp Switch while monitoring the ohmmeter.

    Does the resistance change from below 5.0 ohms to open circuit for each circuit check?

    Yes

    1. Go to  4).

    No

    1. Replace the Stop Lamp Switch.
    2. Perform POWERTRAIN VERIFICATION TEST .
  4. 4) (B16) BRAKE SWITCH NO. 2 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE

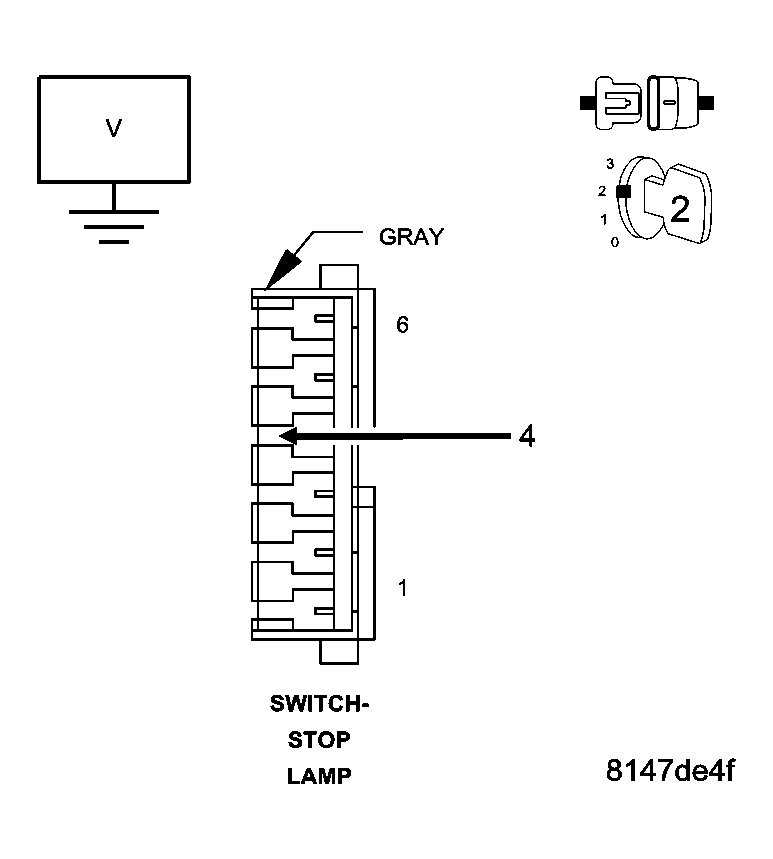

    Fig 2: Checking Brake Switch No. 2 Signal Circuit
    GC0027185Courtesy of CHRYSLER LLC

    Disconnect the C3 PCM harness connector.

    Measure the voltage on the (B16) Brake Switch No. 2 Signal circuit in the Stop Lamp Switch harness connector.

    Ignition on, engine not running.

    Is the voltage above 0 volts?

    Yes

    1. Repair the short to battery voltage in the (B16) Brake Switch No. 2 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  5).
  5. 5) (B16) BRAKE SWITCH NO. 2 SIGNAL CIRCUIT OPEN

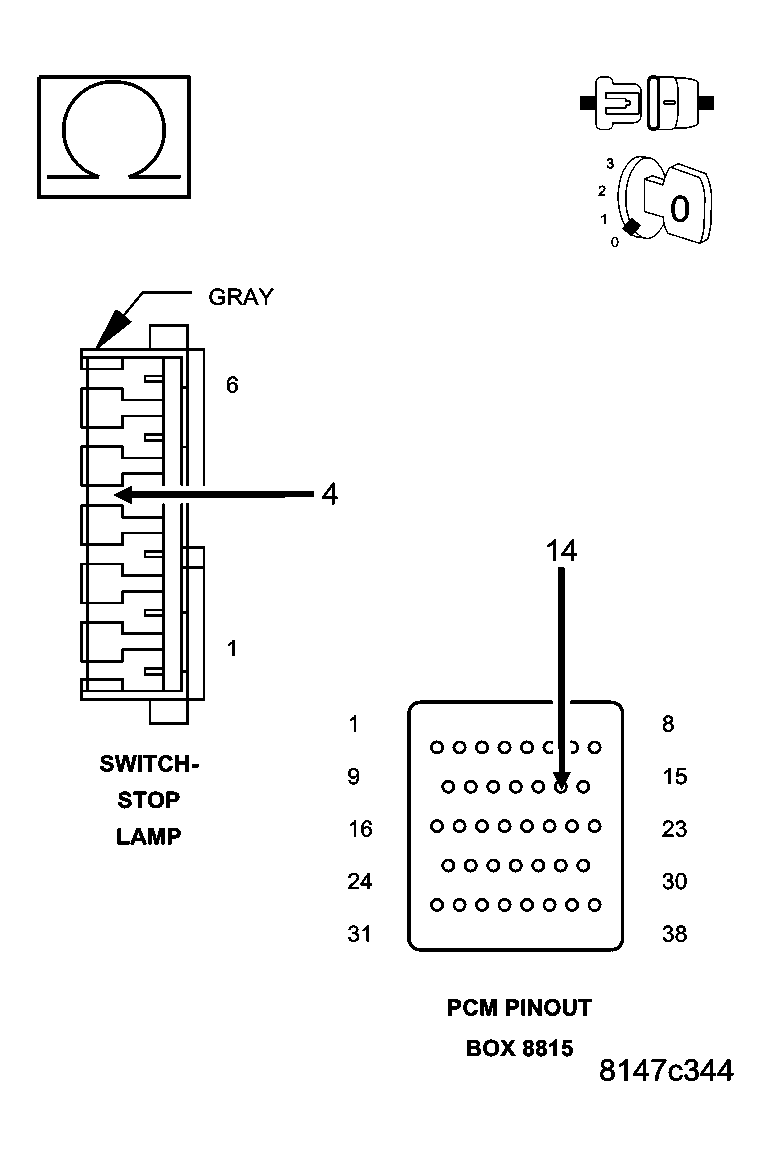

    Fig 3: Checking Brake Switch No. 2 Signal Circuit For Open
    GC0027145Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Measure the resistance of the (B16) Brake Switch No. 2 Signal circuit from the Stop Lamp Switch harness connector to the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  6).

    No

    1. Repair the open in the (B16) Brake Switch No. 2 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .
  6. 6) (B16) BRAKE SWITCH NO. 2 SIGNAL CIRCUIT SHORTED TO GROUND
    Fig 4: Checking Speed Control Supply/Brake Switch No. 2 Signal Circuit Short To Ground
    GC0027146Courtesy of CHRYSLER LLC

    Measure the resistance between ground and the (B16) Brake Switch No. 2 Signal circuit in the Stop Lamp Switch harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Repair the short to ground in the (B16) Brake Switch No. 2 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go to  7).
  7. 7) (B15) BRAKE SWITCH NO. 1 SIGNAL CIRCUIT OPEN

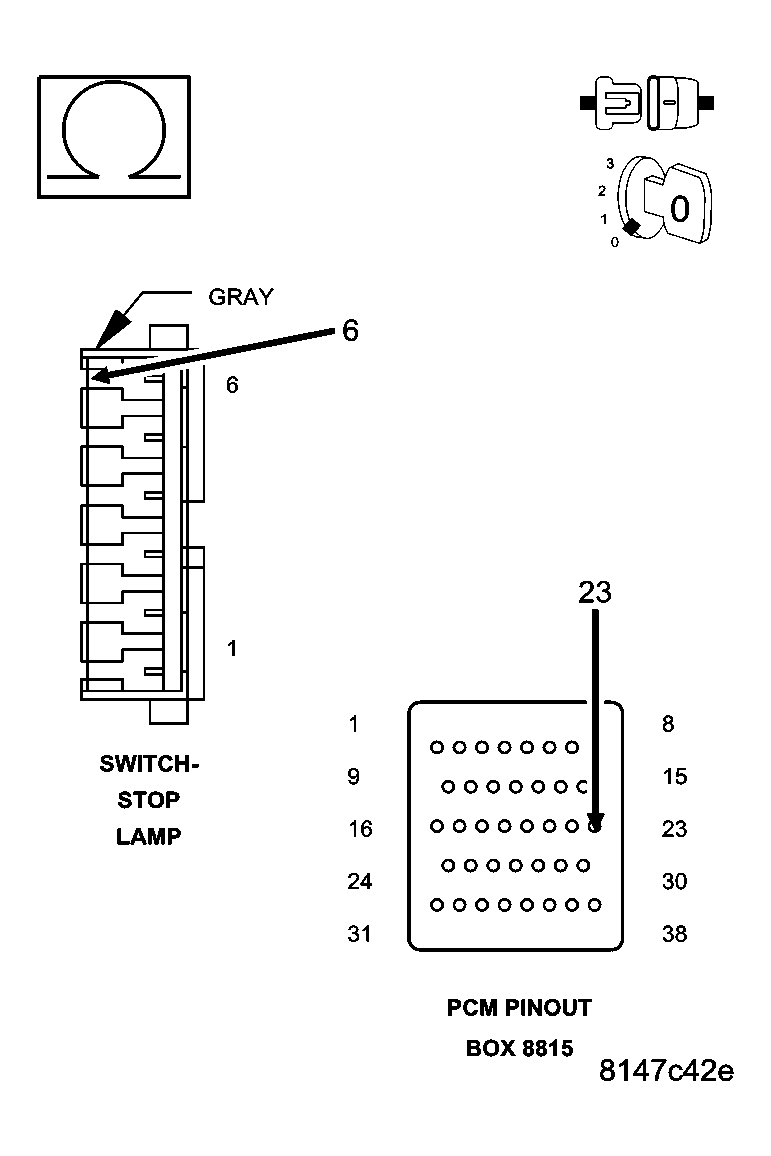

    Fig 5: Checking Brake Switch No. 1 Signal Circuit Open
    GC0027149Courtesy of CHRYSLER LLC

    Measure the resistance of the (B15) Brake Switch No. 1 Signal circuit from the Stop Lamp Switch harness connector to the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  8).

    No

    1. Repair the open in the (B15) Brake Switch No. 1 Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .
  8. 8) PCM
    NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

    Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Replace and program the Powertrain Control Module per Service Information.
    2. Perform POWERTRAIN VERIFICATION TEST .
