Diagnostic Test

1) ACTIVE DTC
Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.

NOTE: Diagnose and repair any system voltage DTCs before continuing with this test.

With the scan tool, select View DTCs.

Is the DTC Active at this time?

Yes
1. Go to 2).
No
1. Refer to INTERMITTENT CONDITION Diagnostic Procedure.
2) ENGINE OIL TEMP SENSOR

Fig 1: Checking Engine Oil Temperature Sensor Signal Circuit & Ground Circuit
Courtesy of CHRYSLER LLC

With the scan tool, clear the DTC.

Turn the ignition off.

Disconnect the Engine Oil Temp Sensor harness connector.

Connect a jumper wire between the (G224) Engine Oil Temp Signal circuit and the (K900) Sensor ground circuit in the Engine Oil Temp Sensor harness connector.

Ignition on, engine not running.

With a scan tool, select View DTCs.

Does the P0197-ENGINE OIL TEMPERATURE SENSOR CIRCUIT LOW DTC set?

Yes
1. Replace the Engine Oil Temp Sensor.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Go to 3).
  NOTE: Remove the jumper wire before continuing.
3) (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO VOLTAGE

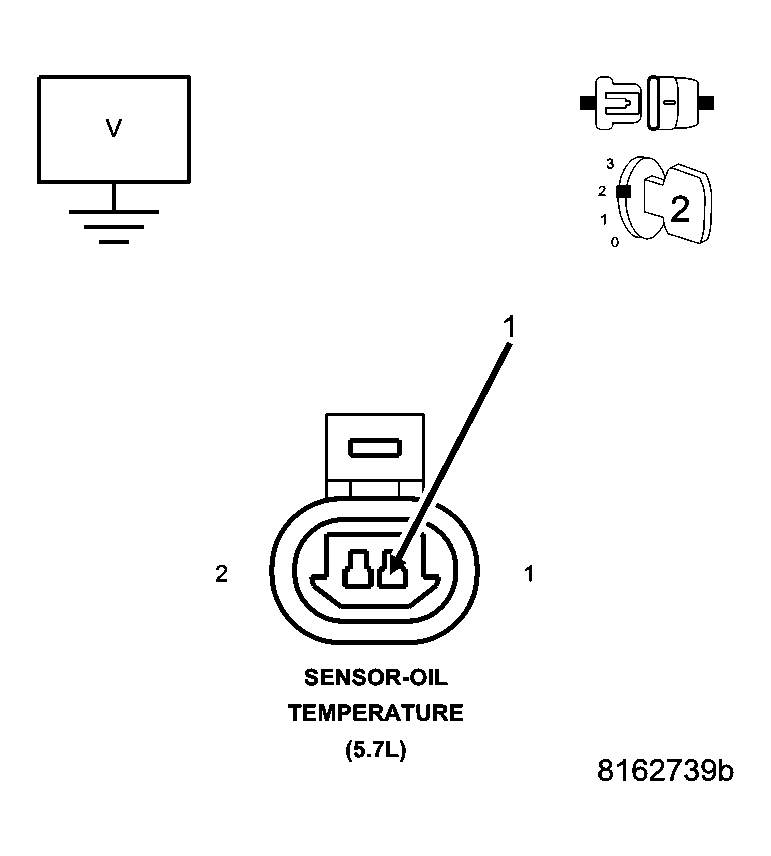

Fig 2: Checking Engine Oil Temperature Sensor Signal Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the C2 and C3 PCM harness connectors.

Ignition on, engine not running.

Measure the voltage on the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.

Is there any voltage present?

Yes
1. Repair the short to voltage in the (G224) Engine Oil Temp Signal circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Go to 4).
4) (G224) ENGINE OIL TEMP SIGNAL CIRCUIT OPEN

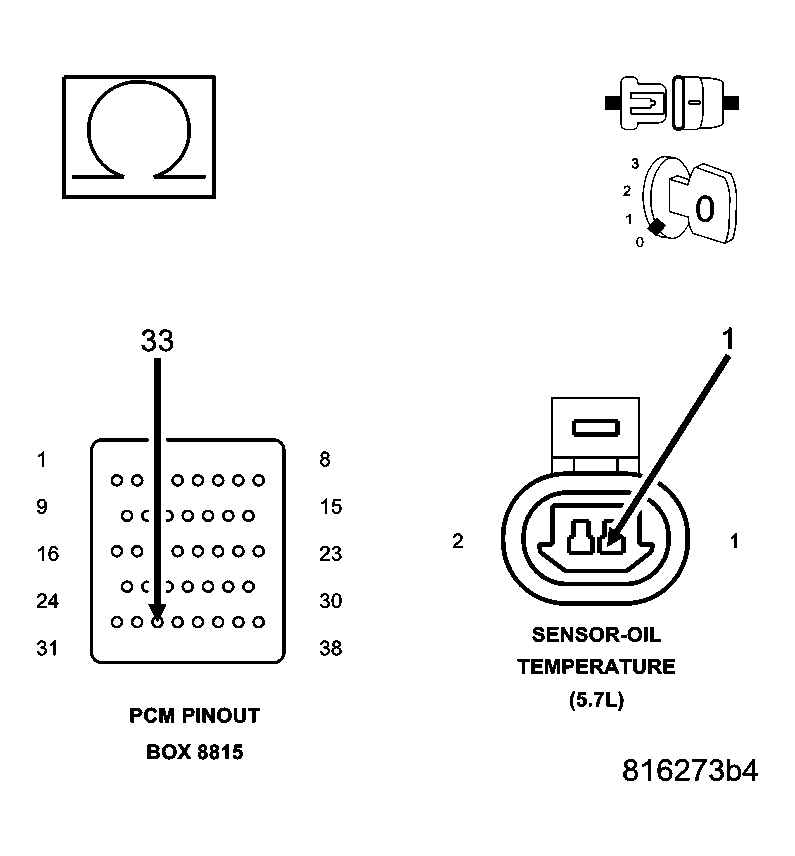

Fig 3: Checking Engine Oil Temperature Sensor Signal Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

Measure the resistance of the (G224) Engine Oil Temp Signal circuit from the Engine Oil Temp Sensor harness connector to the appropriate terminal of special tool #8815.

Is the resistance below 5.0 ohms?

Yes
1. Go to 5).
No
1. Repair the open in the (G224) Engine Oil Temp Signal circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
5) (K900) SENSOR GROUND CIRCUIT OPEN

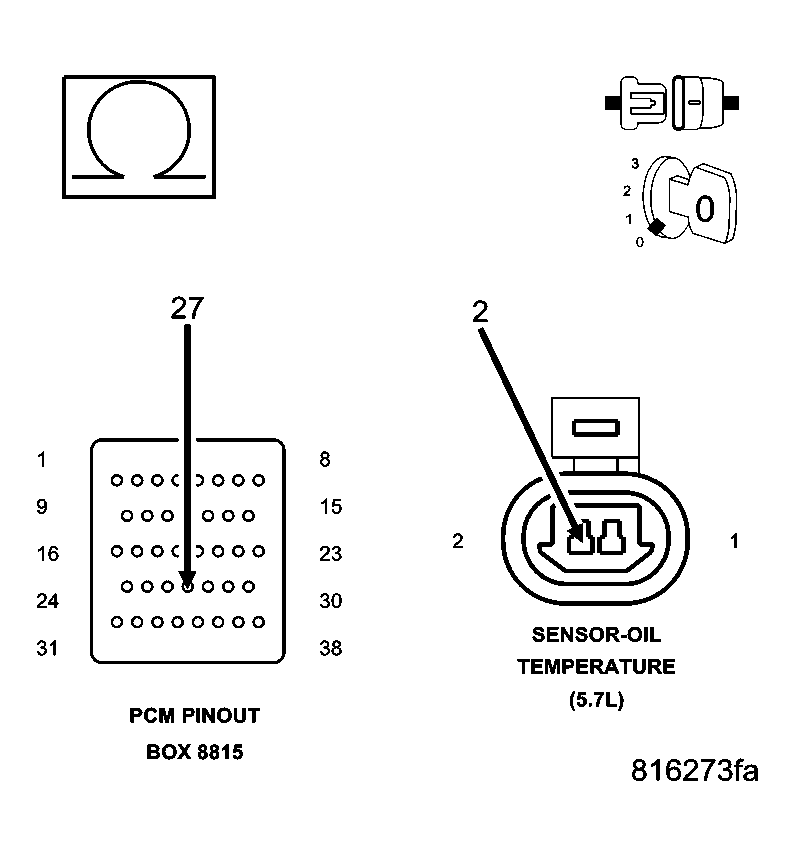

Fig 4: Checking Engine Oil Temperature Sensor Ground Circuit
Courtesy of CHRYSLER LLC

Measure the resistance of the (K900) Sensor ground circuit from the Engine Oil Temp Sensor harness connector to the appropriate terminal of special tool #8815.

Is the resistance below 5.0 ohms?

Yes
1. Go to 6).
No
1. Repair the open in the (K900) Sensor ground circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
6) PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes
1. Repair as necessary.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Replace and program the Powertrain Control Module per Service Information.
2. Perform POWERTRAIN VERIFICATION TEST .
