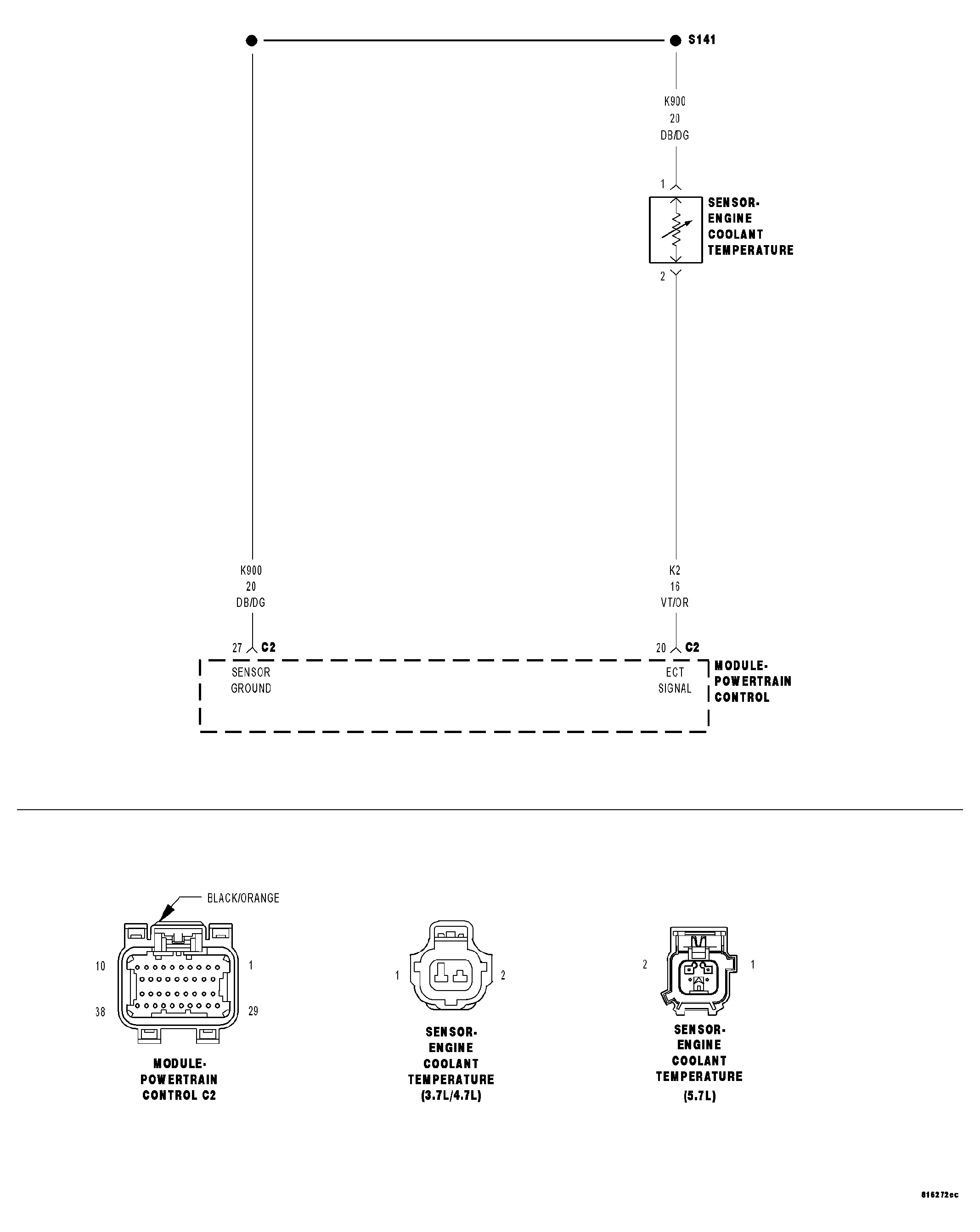

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0123 To P0174 >> P0125-Insufficient Coolant Temperature For Closed-Loop Fuel Control >> Circuit Schematic
