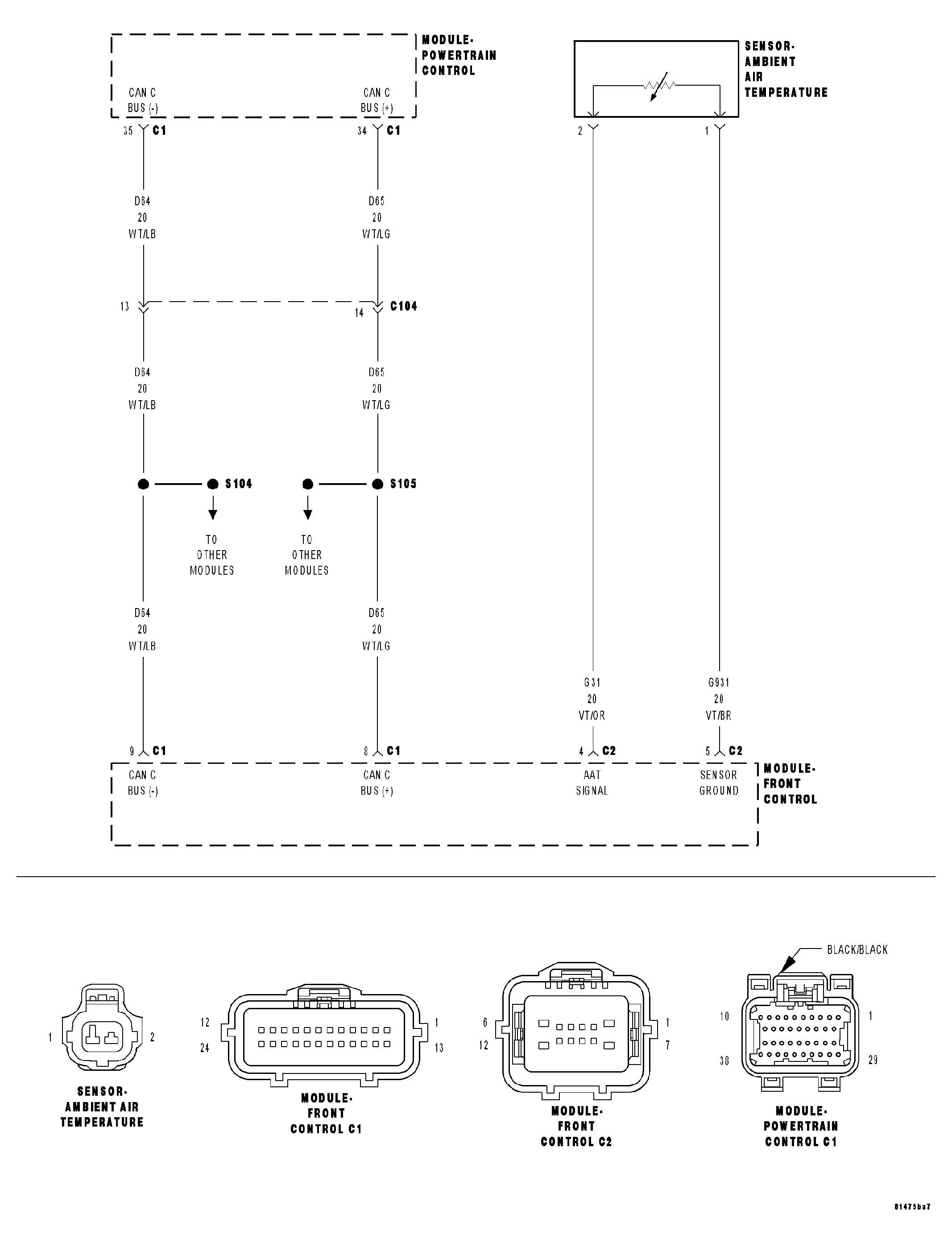

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0016 To P0122, Pre-Diagnostic Troubleshooting Procedure, Intermittent Condition >> P0071-Ambient Air Temperature Sensor Performance >> Circuit Schematic
