Engine Firing Order-5.7L V-8

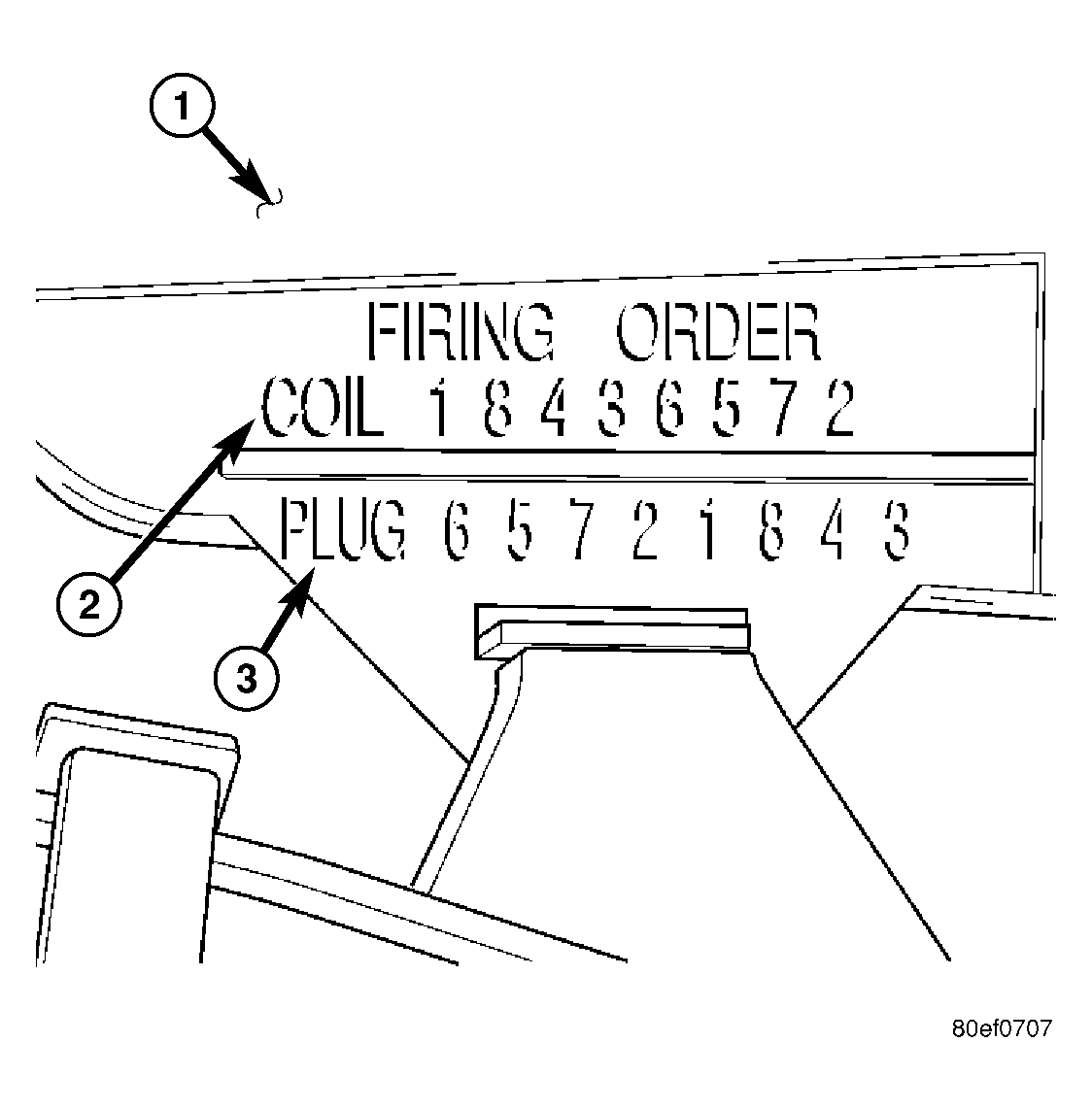

Fig 1: Firing Order/Cable Routing - 5.7L
GC0012245Courtesy of CHRYSLER LLC

These numbers (2) and (3) can also be found on the top of the intake manifold (1) to the right of the throttle body.
