Accelerator Pedal Position Sensor (Apps) - ECM Input

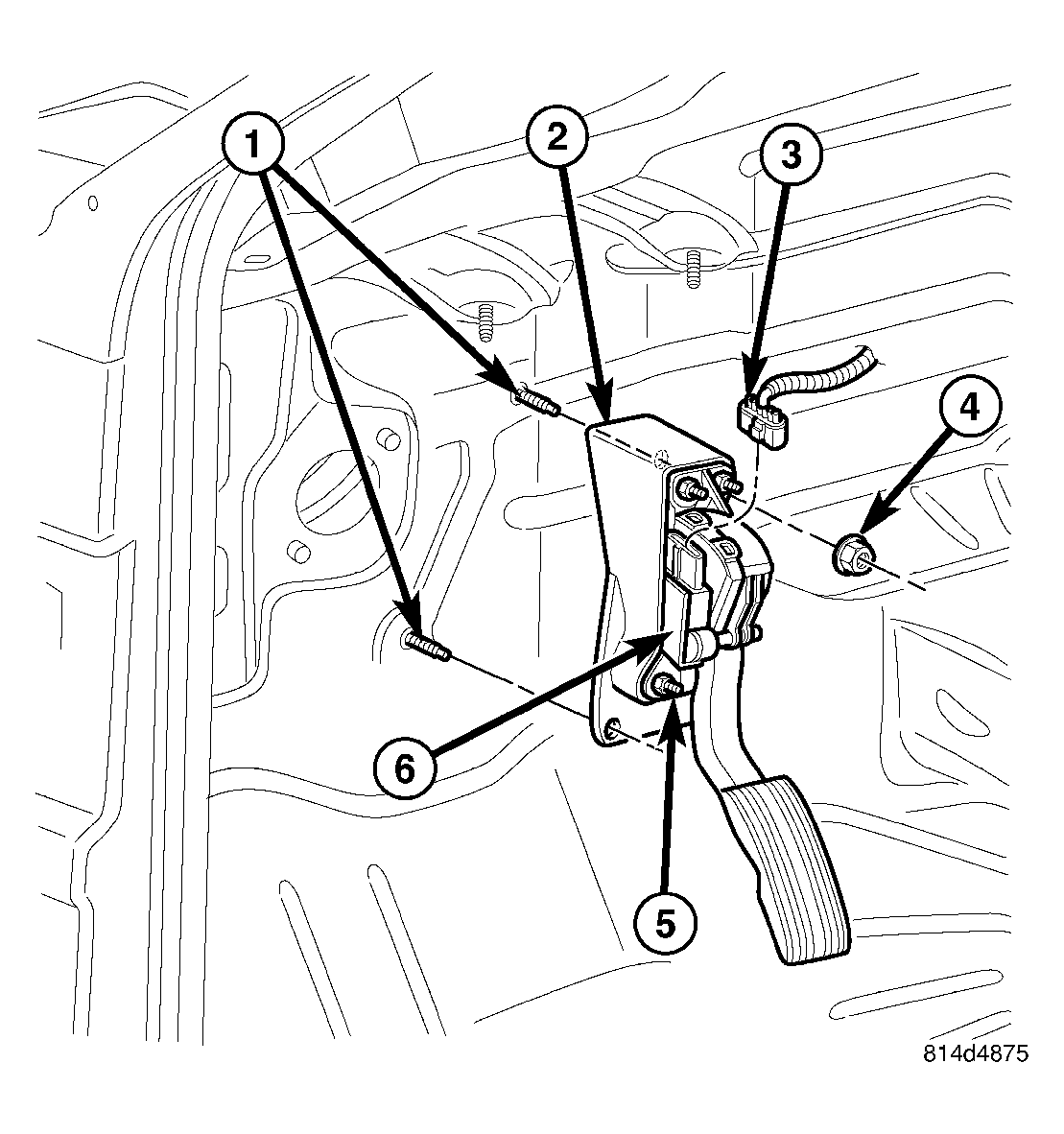

Fig 1: Accelerator Pedal W/Accelerator Pedal Position Sensor
GC0027832Courtesy of CHRYSLER LLC

The Accelerator Pedal Position Sensor (APPS) (6) is attached to the accelerator pedal assembly under the instrument panel.

The APPS is used only with the 5.7L V-8 engine. The 5.7L engine does not use a mechanical throttle cable.
