Accelerator Pedal Position Sensor

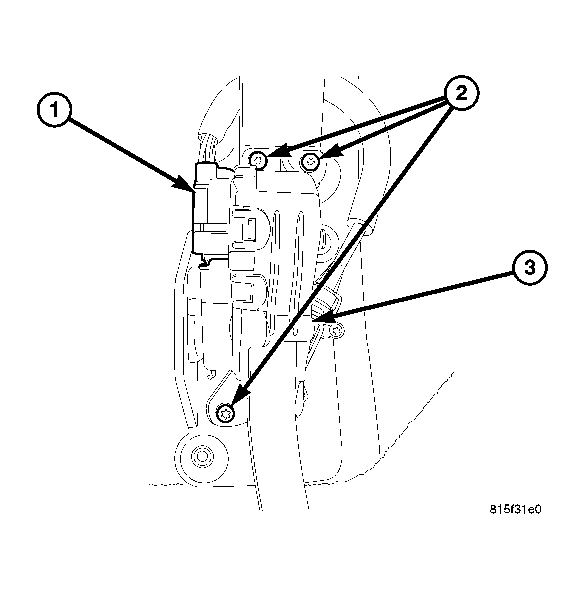

Fig 1: View Of Accelerator Pedal Assembly
GC0039516Courtesy of CHRYSLER LLC
1 - HARNESS CONNECTOR
2 - FASTENERS
3 - ACCELERATOR PEDAL ASSEMBLY
  1. Disconnect the negative battery cable.
  2. Remove the drivers side lower dash board close out panel.
  3. Disconnect the APP sensor electrical connector (1).
  4. Remove the accelerator pedal assembly fasteners (2) and the accelerator pedal assembly (3).
