Rear Washer Nozzle

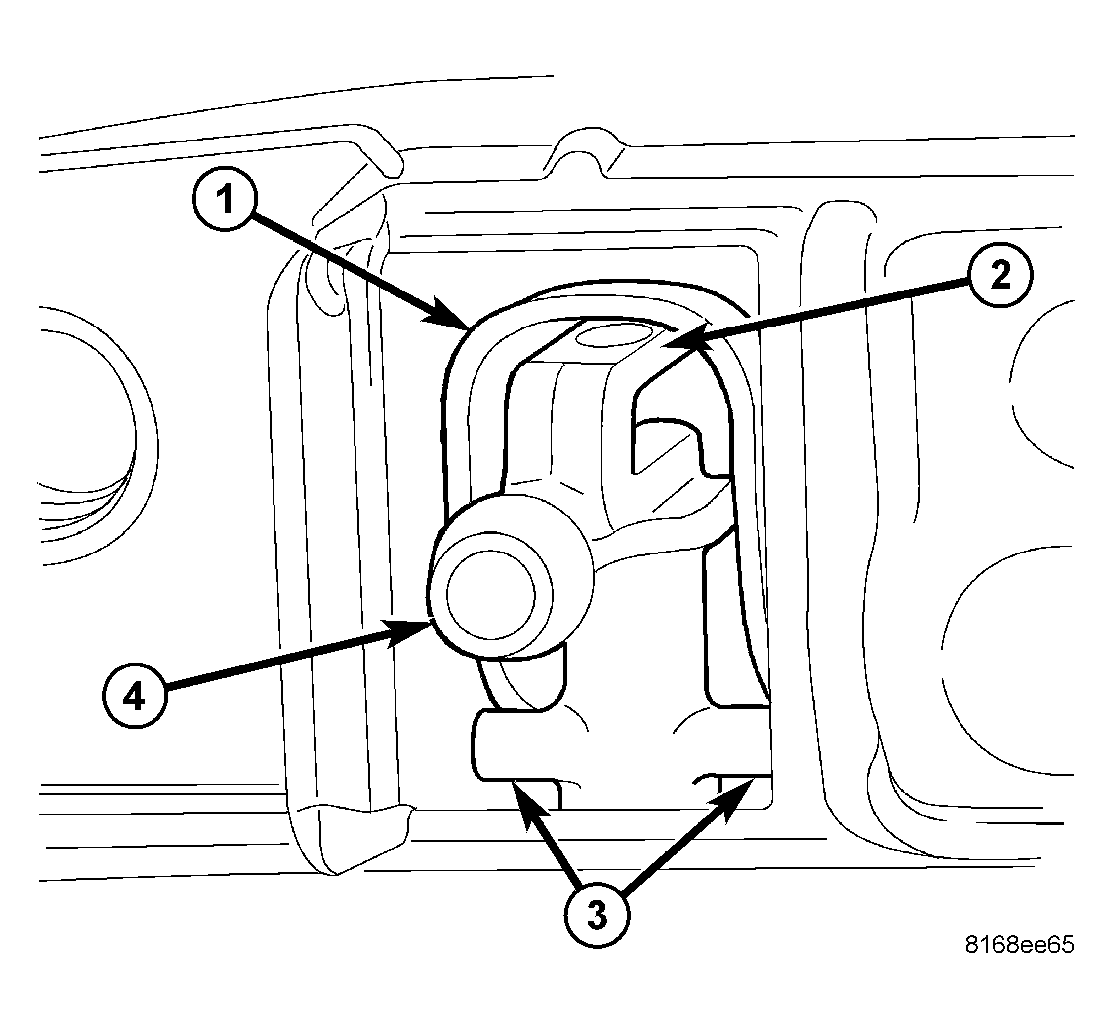

Fig 1: Remove/Instal Nozzle
GC0045751Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the Center High-Mounted Stop Lamp (CHMSL) from the liftgate outer panel. Refer to REMOVAL .
  3. Disconnect the rear washer supply hose from the barbed nipple (4) on the back of the rear washer nozzle.
  4. From the back of the CHMSL housing, depress the integral latch feature (2) of the nozzle, while pushing downward on the nozzle nipple.
  5. Disengage the nozzle alignment pins (3) from the receptacle (1) integral to the back of the CHMSL lens and remove the nozzle.
