Radio Receiver

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury.

Disconnect and isolate the battery negative cable.
Remove the instrument panel bezel. Refer to REMOVAL .
Remove the radio mounting fasteners.

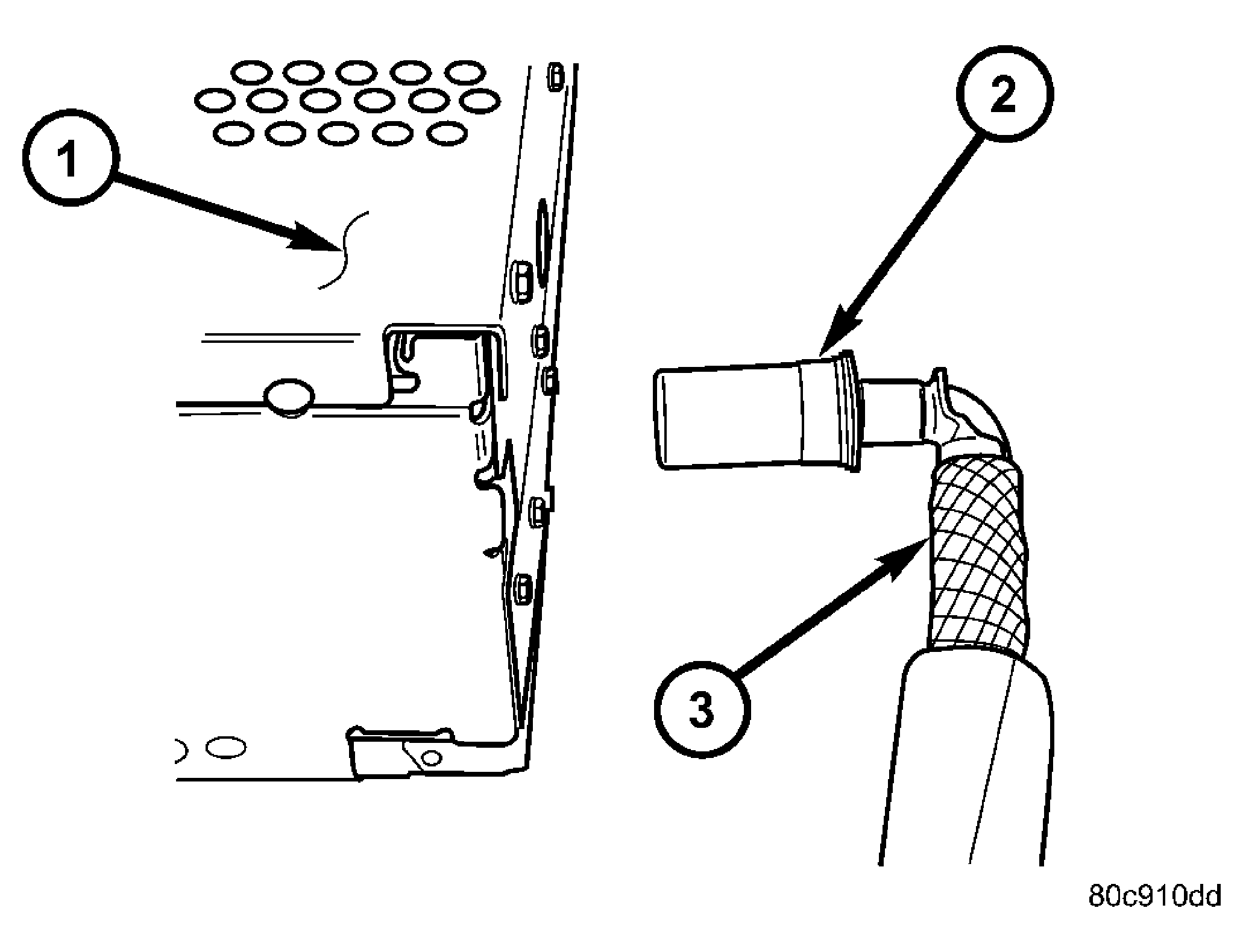

Fig 1: Locating Antenna At Radio
Courtesy of CHRYSLER LLC

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
Disconnect the antenna cable (3) by pulling the locking antenna connector (2) away from the radio (1).

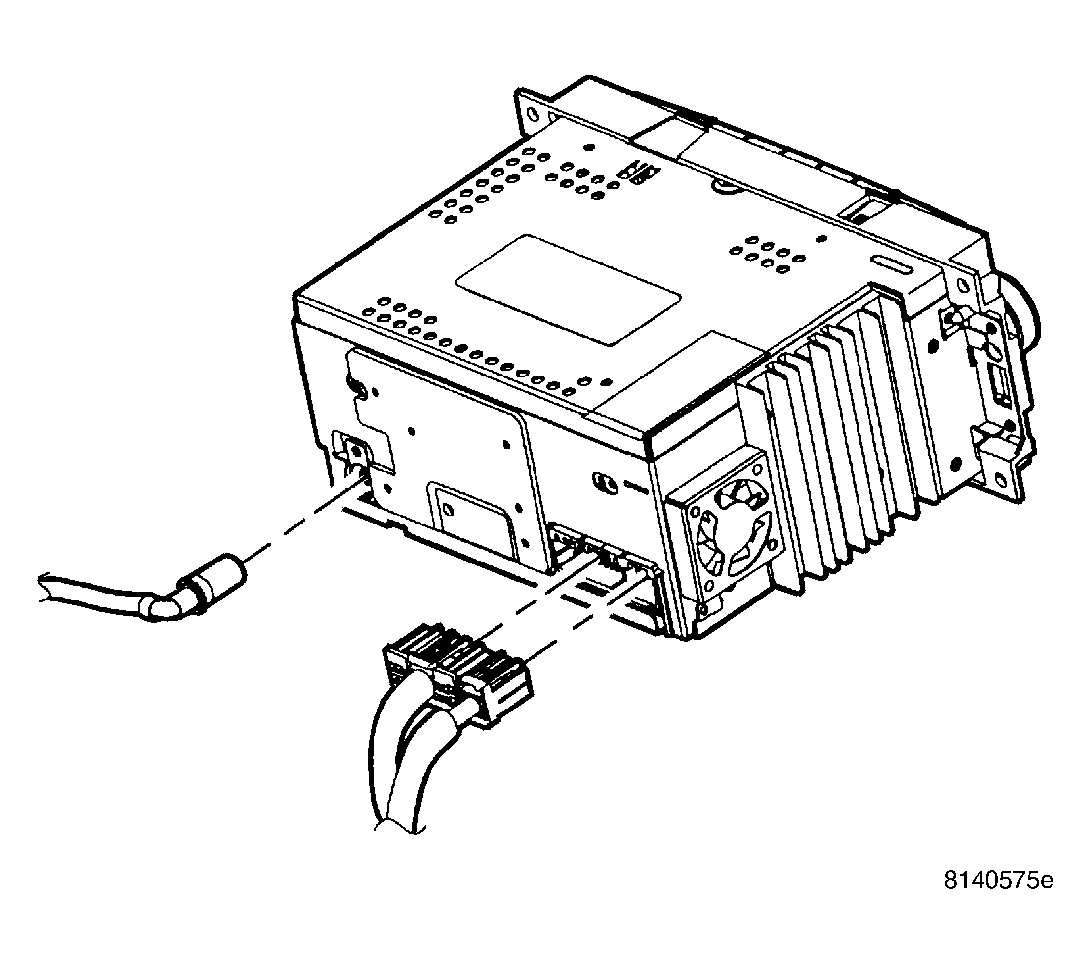

Fig 2: Disconnecting/Connecting Radio Electrical Harness Connector
Courtesy of CHRYSLER LLC
Disconnect the electrical harness connector and remove radio.
