Transmission Control Module - 4.7L/5.7L Vehicles

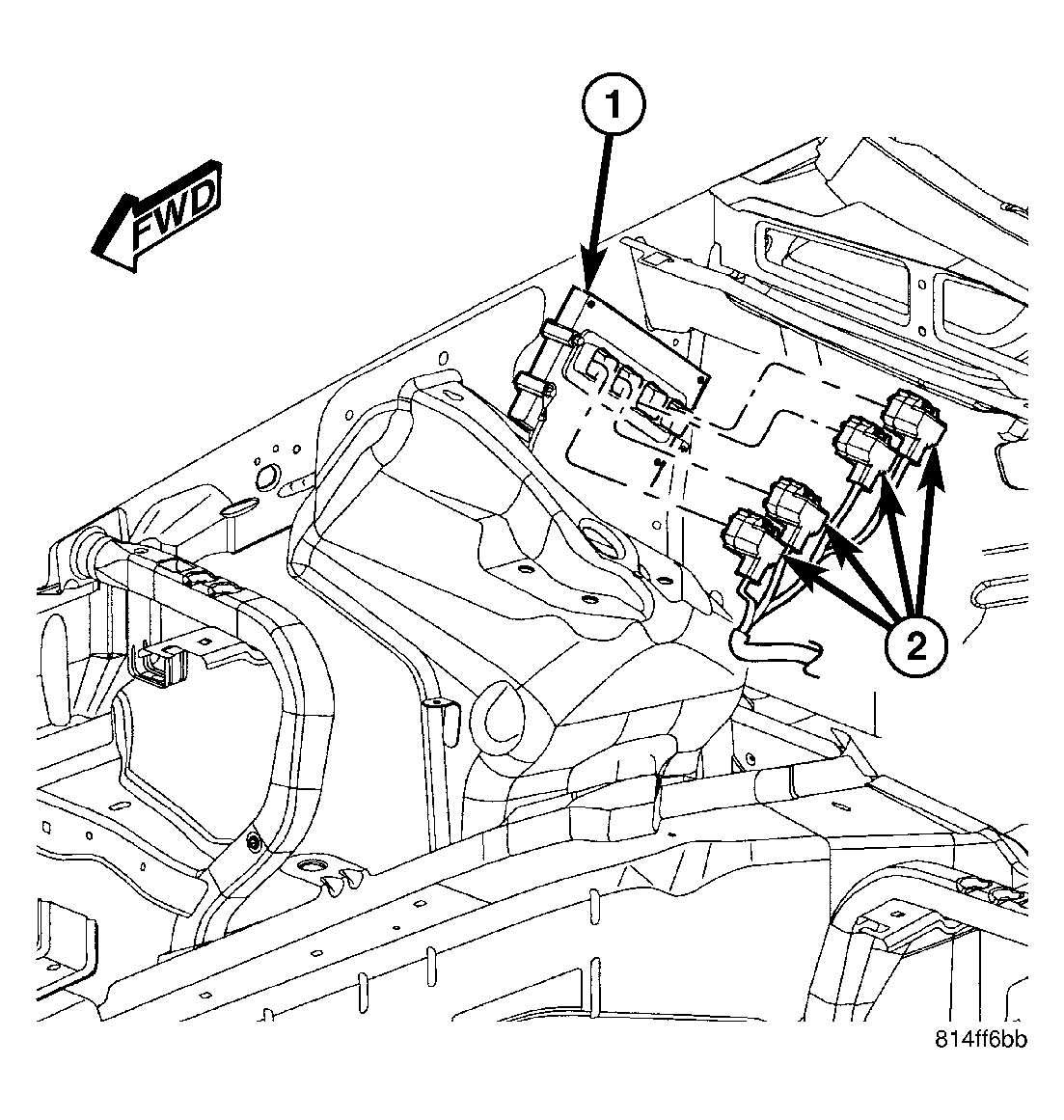

Fig 1: Powertrain Control Module
GC0027624Courtesy of CHRYSLER LLC

The Transmission Control Module (TCM) is a sub-module within the Powertrain Control Module (PCM) (1). See Fig 1. The PCM is located on the right inner fender.
