Controller Antilock Brakes

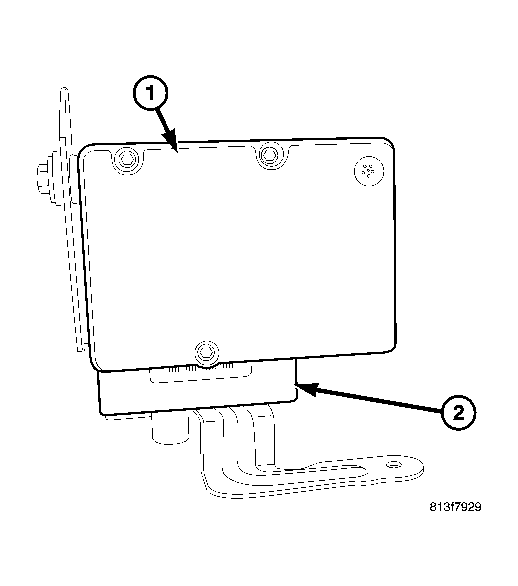

Fig 1: Antilock Brake Module & Hydraulic Control Unit
GC0026855Courtesy of CHRYSLER LLC
1 - ABM
2 - HCU
NOTE: If the ABM module is replaced it must be initialized using the scan tool.

The Antilock Brake Module (ABM) (1) is mounted to the Hydraulic Control Unit (HCU) (2) and operates the ABS system.
