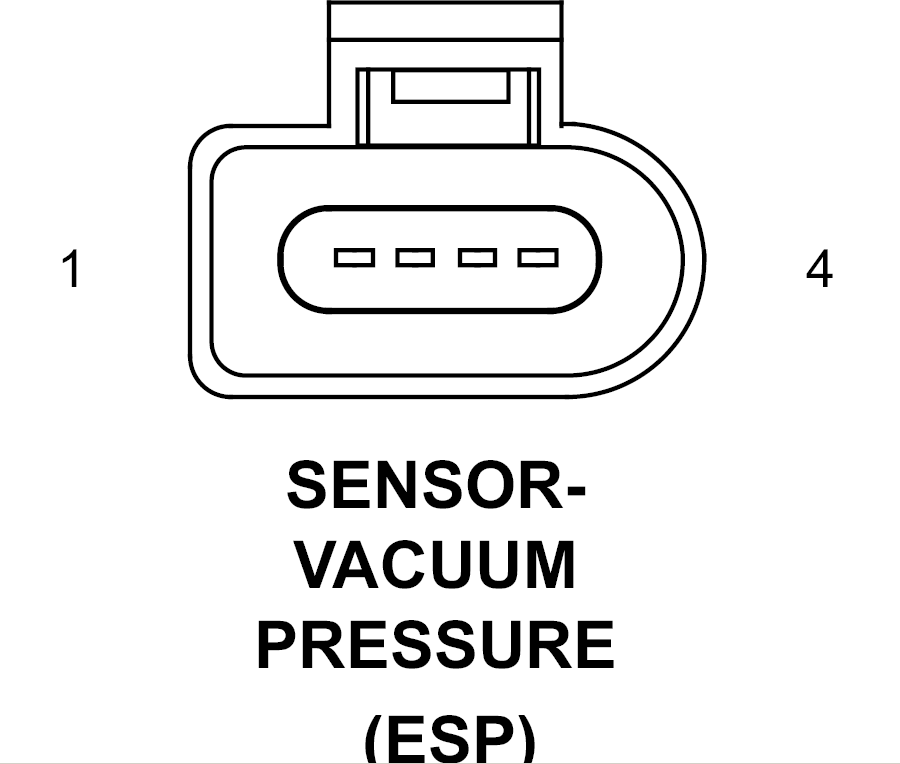

Vacuum Pressure Sensor (Electronic Stability Program) Connector End View
SENSOR-VACUUM PRESSURE - 4-WAY(ESP)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B32 18DG/GY |
VACUUM PRESSURE SENSOR SIGNAL 1 |
| 2 |
B33 18DG/BR |
VACUUM PRESSURE SENSOR RETURN |
| 3 |
B31 18DG/PK |
VACUUM PRESSURE SENSOR SUPPLY |
| 4 |
B34 18DG/OR |
VACUUM PRESSURE SENSOR SIGNAL 2 |
