Throttle Position Sensor (4.7L) Connector End View

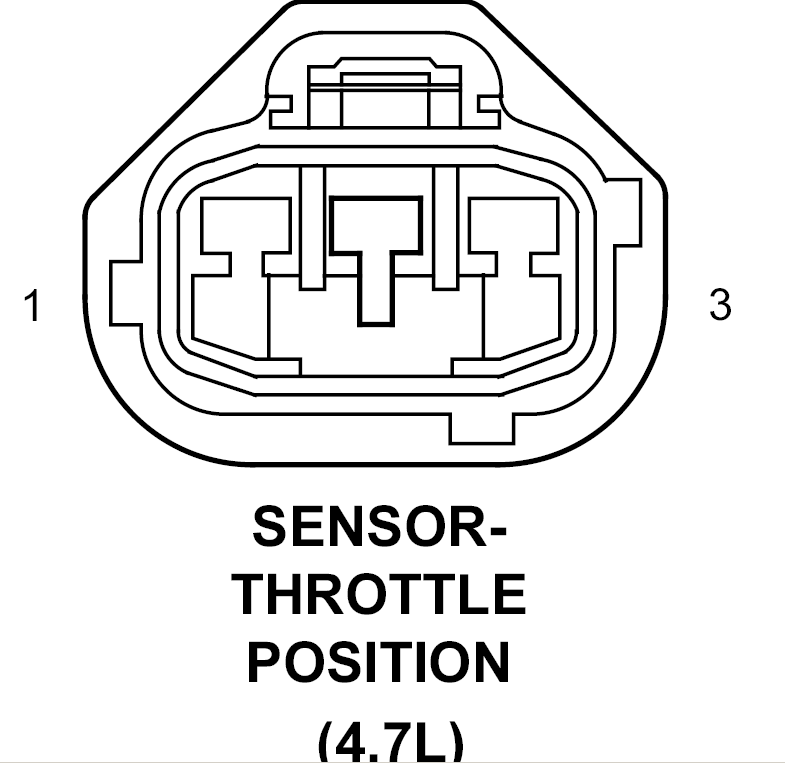

SENSOR-THROTTLE POSITION - 3-WAY(4.7L)

GXK780383Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F855 20PK/YL 5 VOLT SUPPLY
2 K22 18BR/OR TP NO. 1 SIGNAL
3 K900 20DB/DG SENSOR GROUND
