Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>
Right Side Impact Sensor 1 Connector End View
Right Side Impact Sensor 1 Connector End View

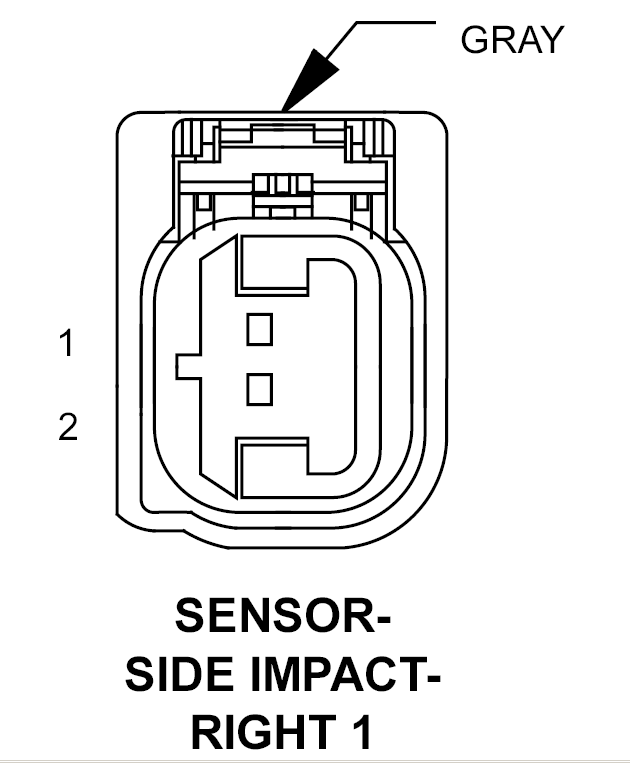

SENSOR-SIDE IMPACT-RIGHT 1 - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R16 20BR/LG
RIGHT SIDE IMPACT SENSOR 1 GROUND
2
R14 20TN/LG
RIGHT SIDE IMPACT SENSOR 1 SIGNAL
Courtesy of CHRYSLER CORP.
