Right Front Overhead Courtesy Lamp Connector End View

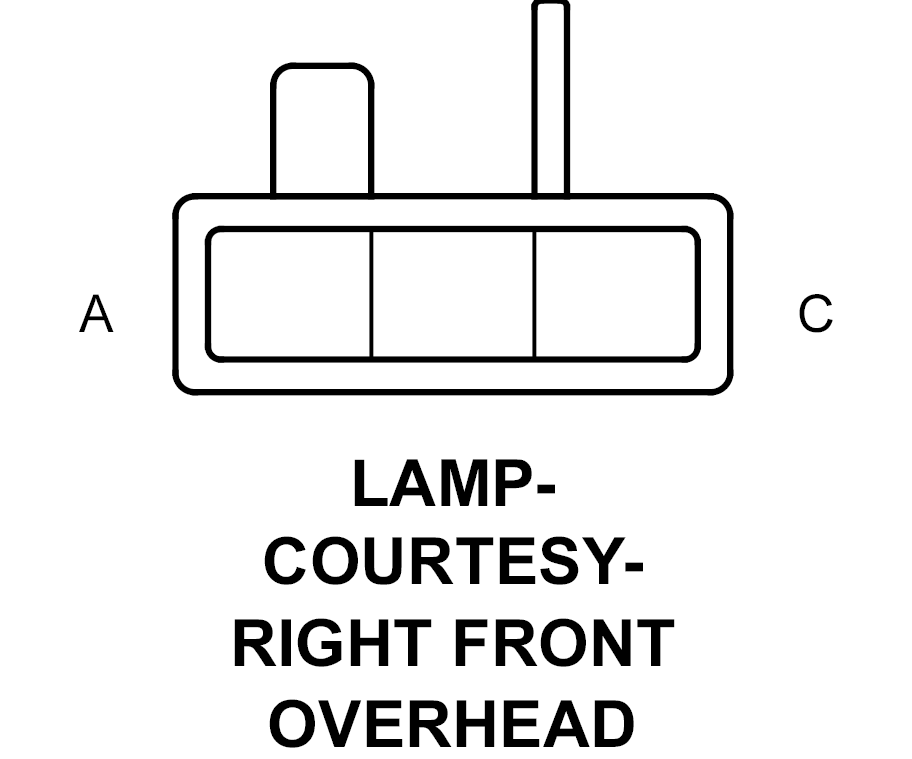

LAMP-COURTESY-RIGHT FRONT OVERHEAD - 3-WAY

GXK780176Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A M22 20YL/OR COURTESY LAMPS DRIVER
B A931 20RD FUSED B(+)
C M28 20YL/TN GLOVE BOX/MAP LAMP DRIVER
