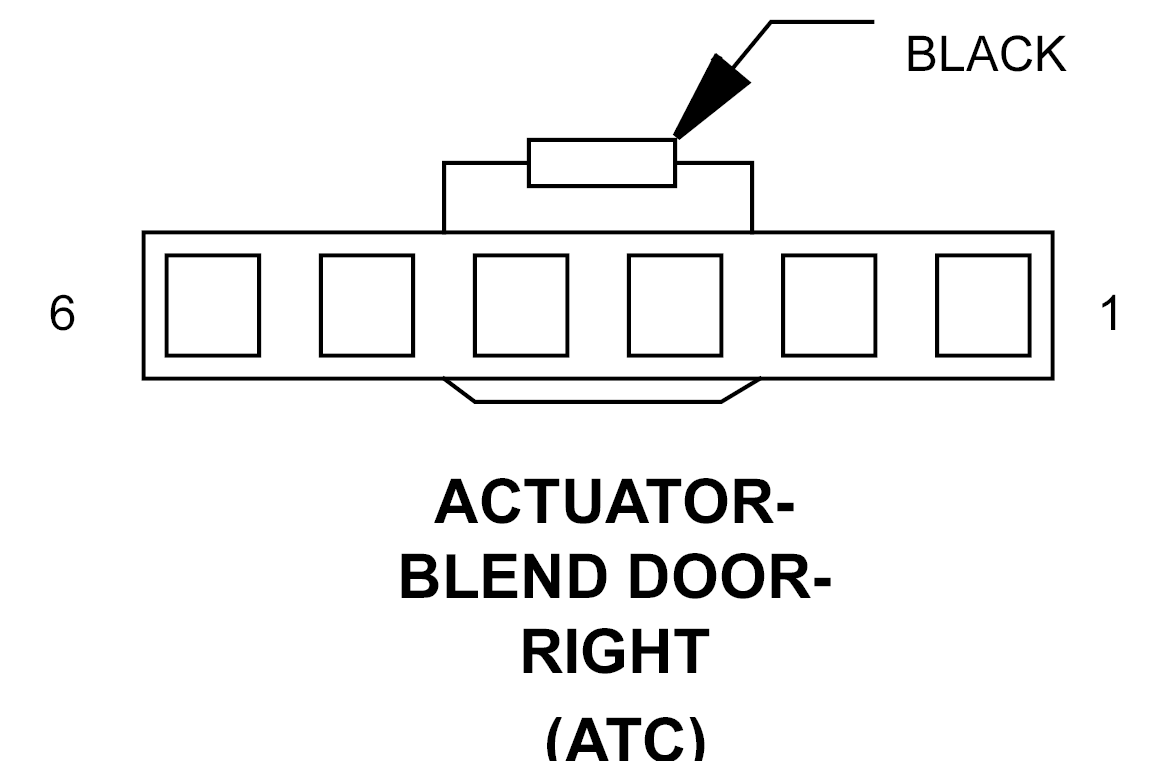

Right Blend Door Actuator (Automatic Temperature Control) Connector End View
ACTUATOR-BLEND DOOR-RIGHT - BLACK 6-WAY(ATC)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
C61 20LB/GY |
RIGHT BLEND DOOR DRIVER |
| 6 |
C161 20LB/BR |
RIGHT BLEND DOOR COMMON DRIVER |
