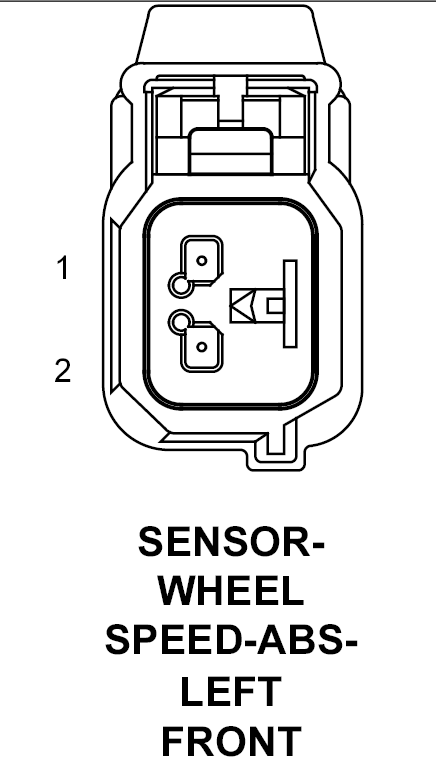

Left Front Wheel Speed Sensor Connector End View
Left Front Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-LEFT FRONT - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B9 18DG/LG
LEFT FRONT WHEEL SPEED SENSOR SUPPLY
2
B8 18DG/TN
LEFT FRONT WHEEL SPEED SENSOR SIGNAL
