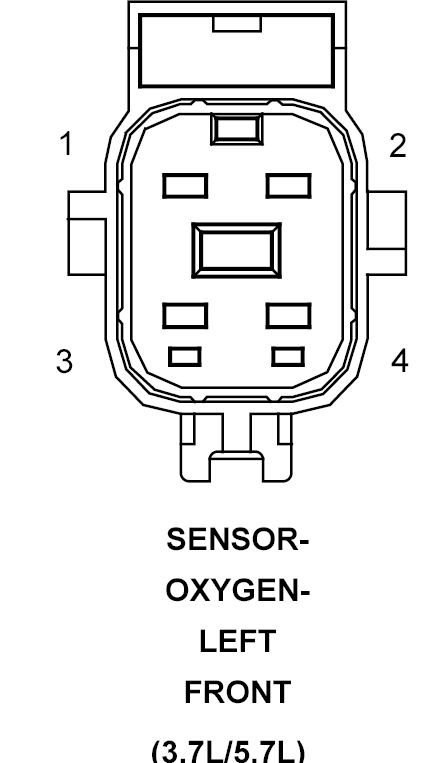

Left Front Oxygen Sensor (3.7L/5.7L) Connector End View
SENSOR-OXYGEN-LEFT FRONT - 4-WAY(3.7L/5.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z42 16BK/LG |
GROUND |
| 2 |
K99 20BR/TN |
O2 1/1 HEATER CONTROL |
| 3 |
K902 20BR/DG |
O2 RETURN (UPSTREAM) |
| 4 |
K41 20DB/LB |
O2 1/1 SIGNAL |
