Knock Sensor 1 (3.7L/5.7L) Connector End View

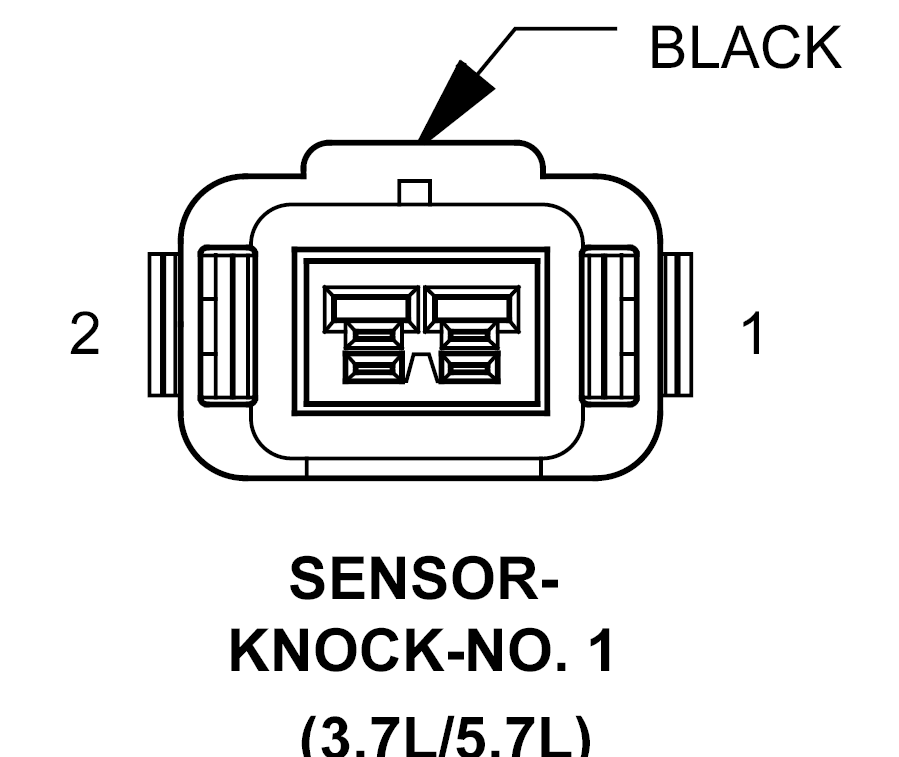

SENSOR-KNOCK-NO. 1 - BLACK 2-WAY(3.7L/5.7L)

GXK780335Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K42 20DB/OR KNOCK SENSOR NO. 1 SIGNAL
2 K942 20BR/LG KNOCK SENSOR NO. 1 RETURN
