Intake Air Temperature Sensor (Diesel) Connector End View

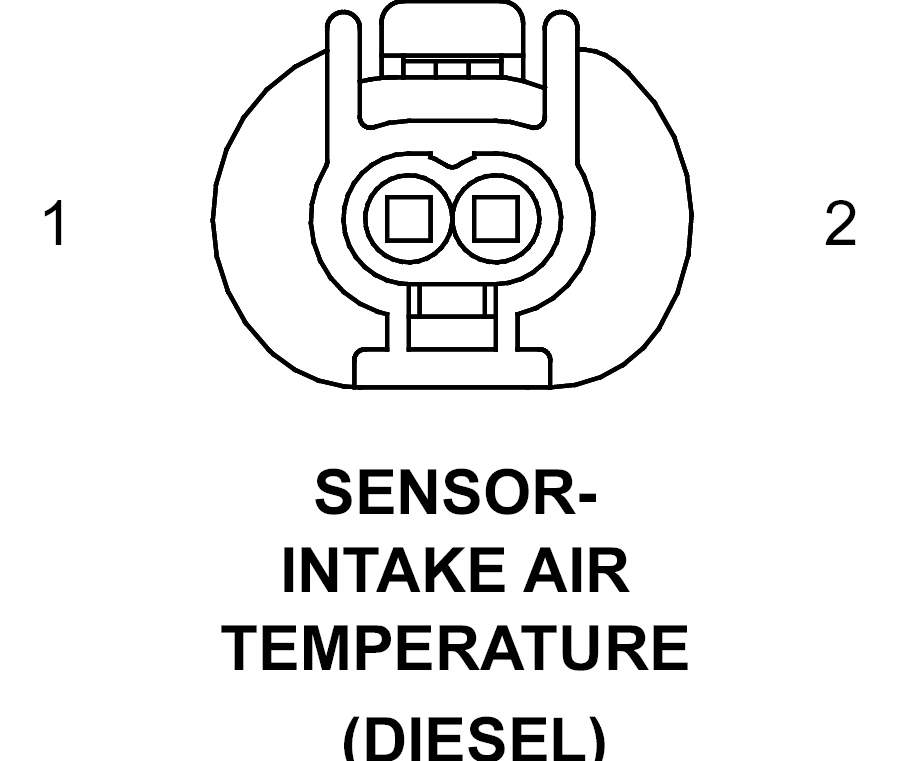

SENSOR-INTAKE AIR TEMPERATURE - 2-WAY(DIESEL)

GXK780332Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K960 18BR/VT IAT GROUND
2 K21 20DG/WT IAT SIGNAL
