Inline Connector End View (C324 )

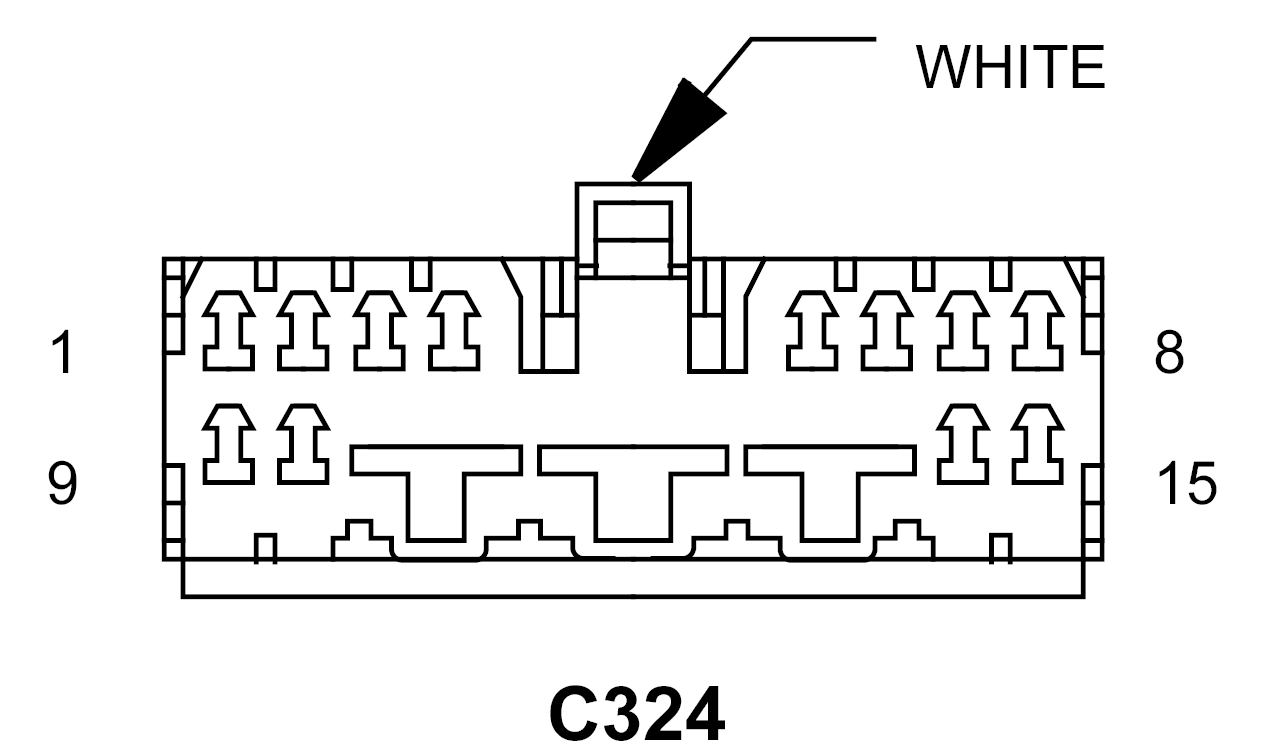

C324 - WHITE 15-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	Q79 20OR/LB	SECTOR SWITCH SENSE
3	W13 20BR/LG	REAR WIPER MOTOR CONTROL
4	W14 20BR/LB	REAR WIPER MOTOR DELAY SIGNAL
5	M22 20YL/OR	COURTESY LAMPS DRIVER
6	A931 20RD	FUSED B(+)
7	P30 20TN/DG	LIFTGATE HANDLE SWITCH SENSE
8	Q94 20TN/LG	LIFTGATE CHIME DRIVER
9	-	-
10	A46 18RD/GY	REAR WIPER RELAY OUTPUT
11	-	-
12	Z800 12BK	GROUND
13	C515 12LB/OR	REAR WINDOW DEFOGGER RELAY OUTPUT
14	Q75 20OR/LB	LEFT PINCH SENSOR SIGNAL
15	-	-

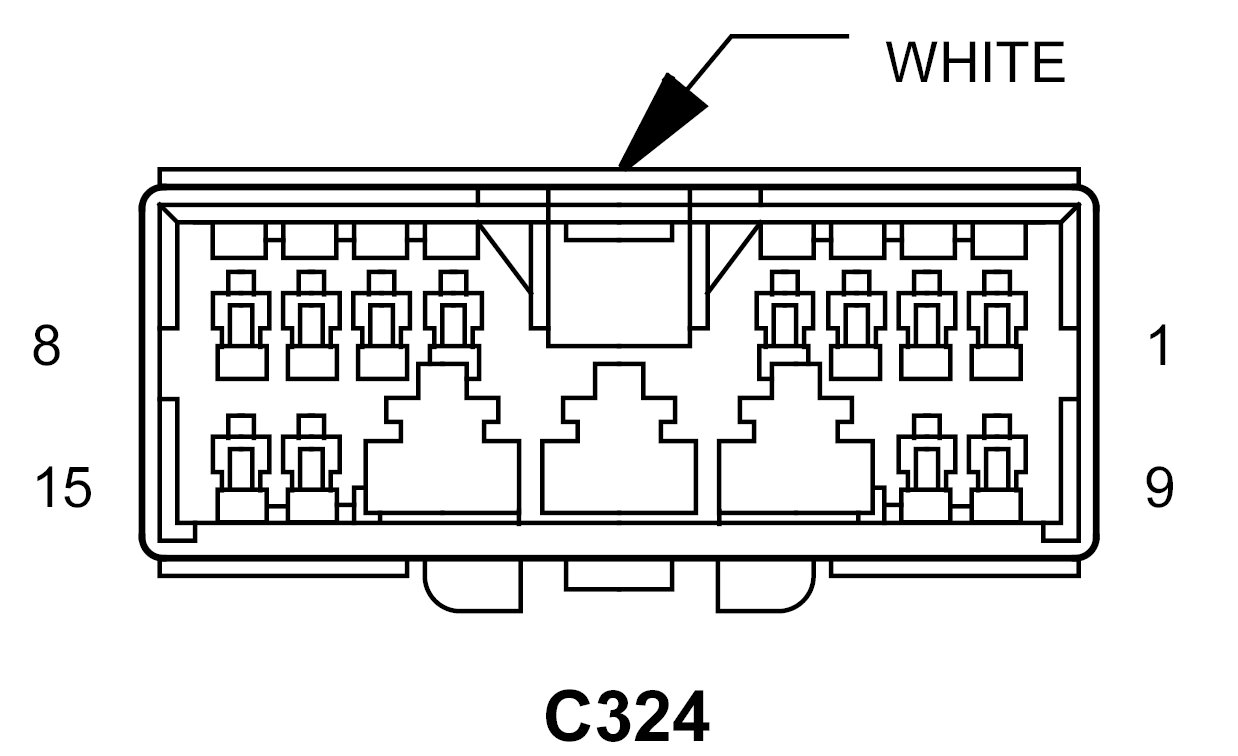

C324 - WHITE 15-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	W13 20BR/LG	REAR WIPER MOTOR CONTROL
4	W14 20BR/LB	REAR WIPER MOTOR DELAY SIGNAL
5	M22 20YL/OR	COURTESY LAMPS DRIVER
6	A931 20RD	FUSED B(+)
7	-	-
8	-	-
9	-	-
10	A46 18RD/GY	REAR WIPER RELAY OUTPUT
11	-	-
12	Z800 12BK	GROUND
13	C515 12LB/OR	REAR WINDOW DEFOGGER RELAY OUTPUT
14	-	-
15	-	-
