Inline Connector End View (C320 )

C320 - LT. GRAY 10-WAYFEMALE

GXK780083Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q6 20OR/LG SUNROOF SWITCH SUPPLY
2 - -
3 A932 18RD/DG FUSED B(+)
4 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
5 Z914 16BK
6 D55 20WT/OR CAN B BUS (+)
7 D54 20WT CAN B BUS (-)
8 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
9 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
10 - -

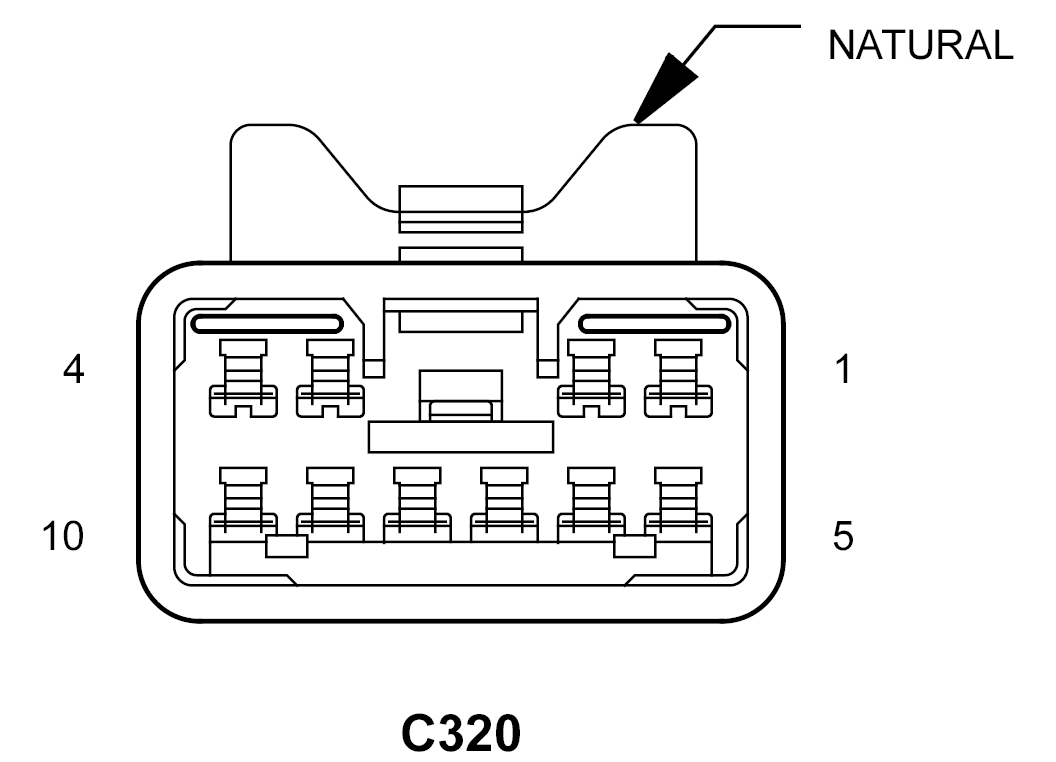

C320 - NATURAL 10-WAYMALE

GXK780084Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q6 20OR/LG SUNROOF SWITCH SUPPLY
2 - -
3 A932 18RD FUSED B(+)
4 Q5 20OR/LB SUNROOF CLOSE SWITCH SENSE
5 Z914 18BK GROUND
6 D55 20WT/OR CAN B BUS (+)
7 D54 20WT CAN B BUS (-)
8 Q3 20OR/TN SUNROOF OPEN SWITCH SENSE
9 Q4 20OR/YL SUNROOF VENT SWITCH SENSE
10 - -
