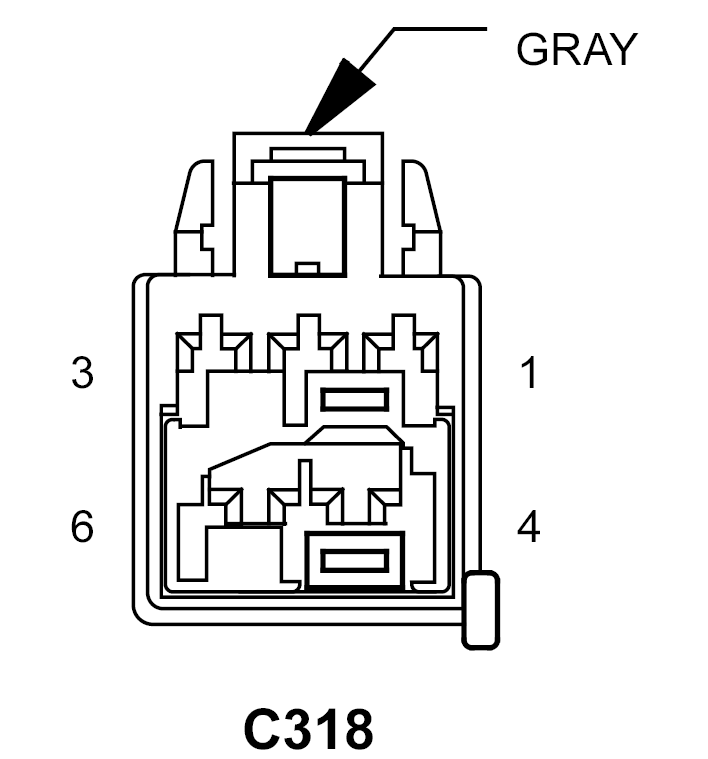

Inline Connector End View (C318 )
C318 - GRAY 6-WAYFEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | P41 16LG/GY | DRIVER SEAT RECLINER DOWN DRIVER (EXCEPT MEMORY) |
| 1 | P141 16LG/BR | DRIVER SEAT RECLINER UP DRIVER (MEMORY) |
| 2 | P43 16LG/VT | DRIVER SEAT RECLINER UP DRIVER (EXCEPT MEMORY) |
| 2 | P143 16LG/GY | DRIVER SEAT RECLINER DOWN DRIVER (MEMORY) |
| 3 | G403 20VT/OR | DRIVER SEAT RECLINER POSITION SENSE (MEMORY) |
| 4 | G493 20OR/VT | DRIVER SEAT RECLINER POSITION SENSOR GROUND (MEMORY) |
| 5 | P187 16LG/BR | LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS) |
| 6 | Z911 16BK | GROUND (HEATED SEATS) |
C318 - GRAY 6-WAYMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | P41 16LG/GY | DRIVER SEAT RECLINER DOWN DRIVER (EXCEPT MEMORY) |
| 1 | P141 16LG/BR | DRIVER SEAT RECLINER UP DRIVER (MEMORY) |
| 2 | P43 16LG/VT | DRIVER SEAT RECLINER UP DRIVER (EXCEPT MEMORY) |
| 2 | P143 16LG/GY | DRIVER SEAT RECLINER DOWN DRIVER (MEMORY) |
| 3 | G403 20VT/OR | DRIVER SEAT RECLINER POSITION SENSE (MEMORY) |
| 4 | G493 20OR/VT | DRIVER SEAT RECLINER POSITION SENSOR GROUND (MEMORY) |
| 5 | P187 16LG/BR | LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS) |
| 6 | Z911 16BK | GROUND (HEATED SEATS) |
