Inline (Except Export) Connector End View (C322)

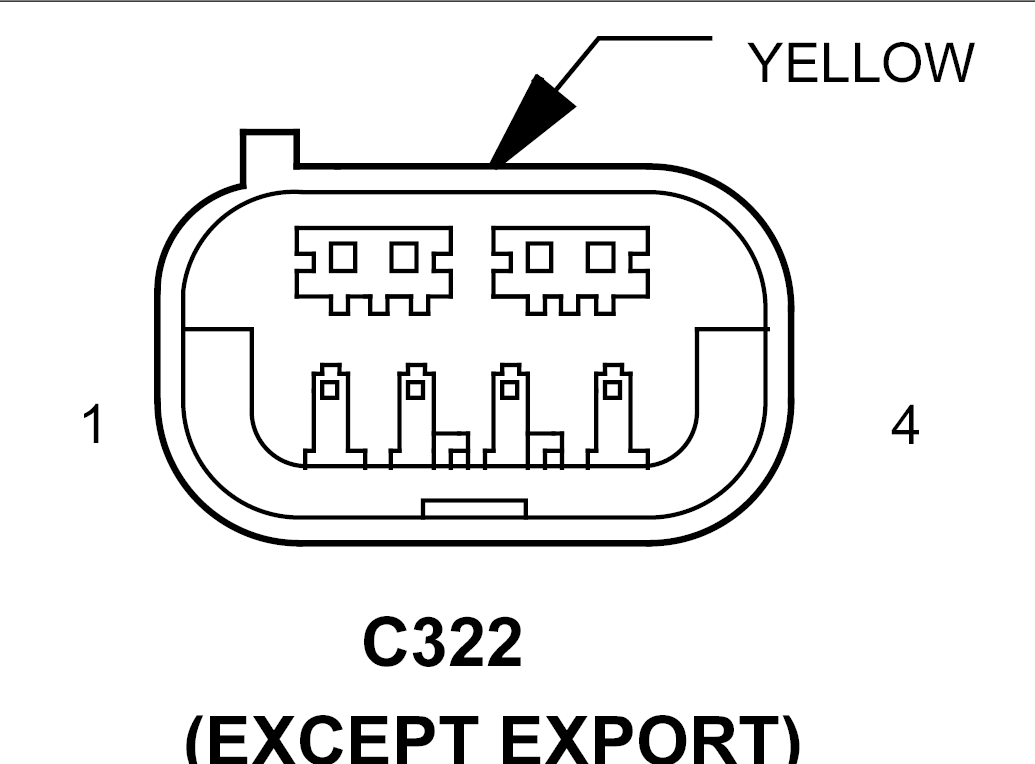

C322 - YELLOW 4-WAY(EXCEPT EXPORT) FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R54 20LB/YL |
PASSENGER SEAT BELT TENSIONER LINE 2 |
| 2 |
R56 20LB/DG |
PASSENGER SEAT BELT TENSIONER LINE 1 |
| 3 |
Z911 20BK |
GROUND |
| 4 |
G210 20VT/BR |
PASSENGER SEAT BELT SWITCH SENSE |

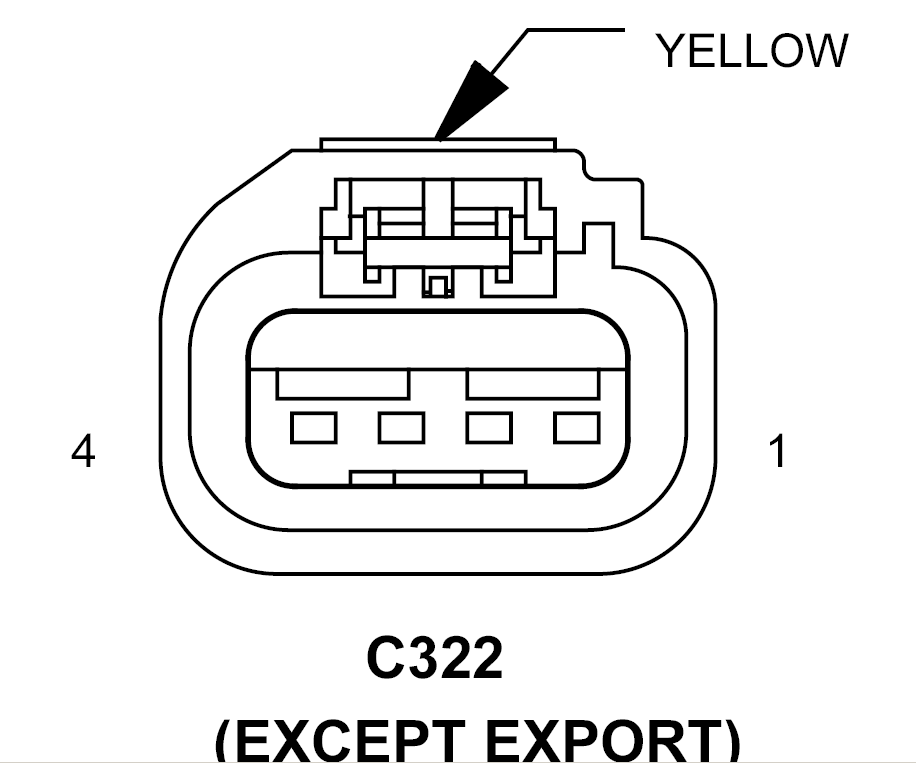

C322 - YELLOW 4-WAY(EXCEPT EXPORT) MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R54 20LB/YL |
PASSENGER SEAT BELT TENSIONER LINE 2 |
| 2 |
R56 20LB/DG |
PASSENGER SEAT BELT TENSIONER LINE 1 |
| 3 |
Z911 20BK |
GROUND |
| 4 |
G210 20VT/BR |
PASSENGER SEAT BELT SWITCH SENSE |
