Generator (Diesel) Connector End View

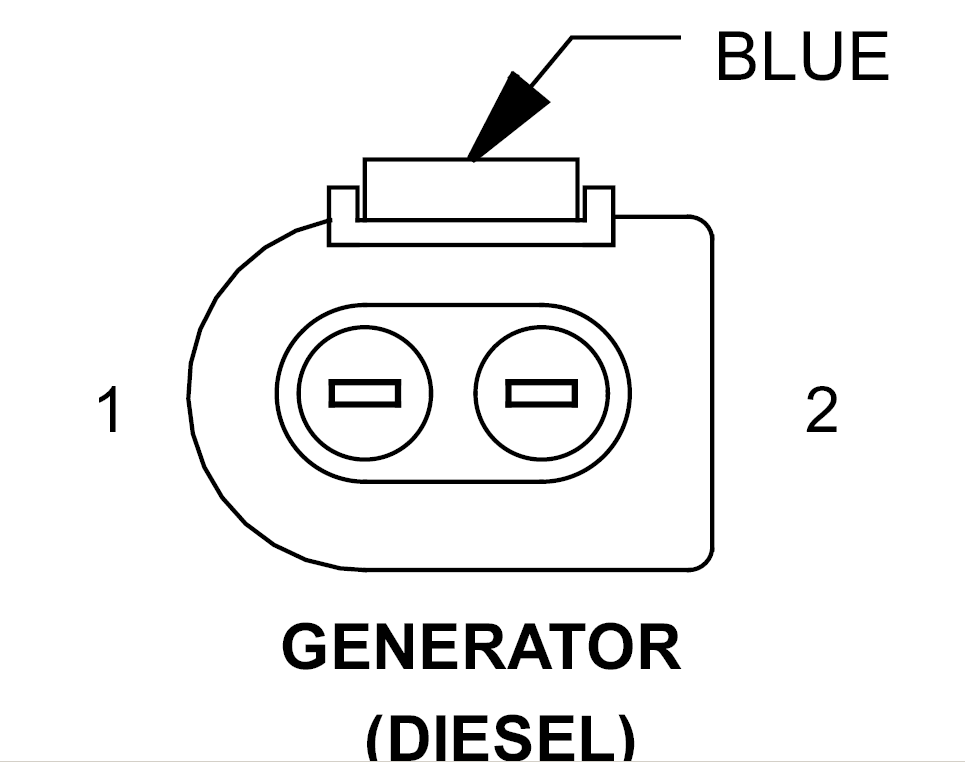

GENERATOR - BLUE 2-WAY(DIESEL)

GXK780131Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 D509 20WT/BL LIN BUS
2 A923 10RD FUSED B(+)
