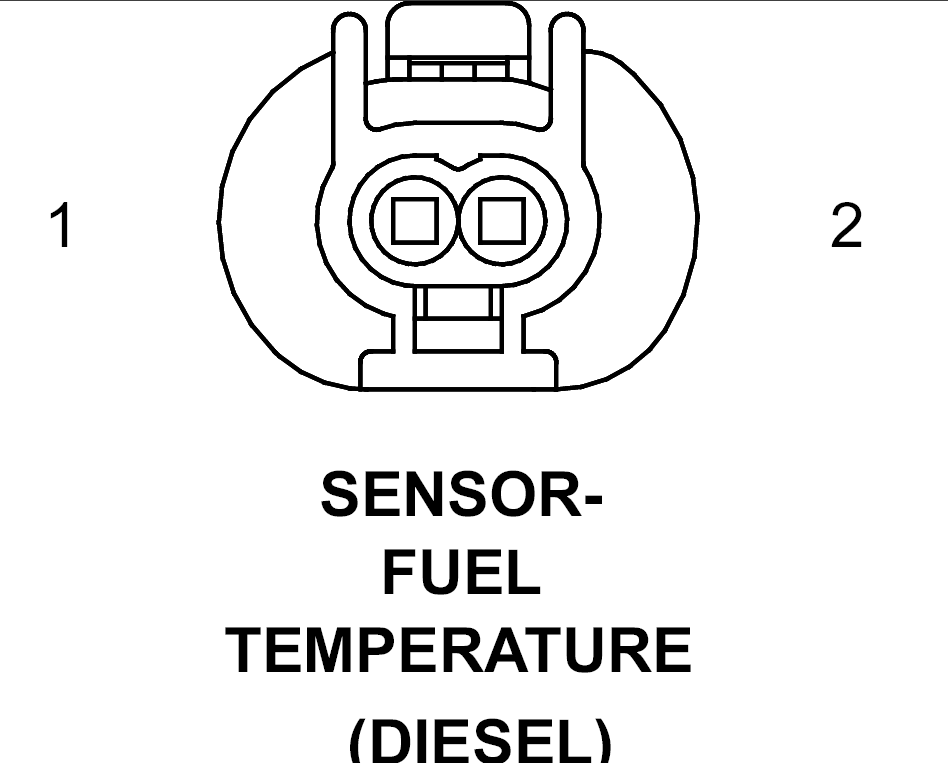

Fuel Temperature Sensor (Diesel) Connector End View
Fuel Temperature Sensor (Diesel) Connector End View
SENSOR-FUEL TEMPERATURE - 2-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K914 20BL/DG
FUEL TEMPERATURE SENSOR GROUND
2
K156 20BL/RD
FUEL TEMPERATURE SENSOR SIGNAL
Courtesy of CHRYSLER CORP.
