| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A916 16RD/GY |
FUSED B(+) |
| 85 |
K31 20BR |

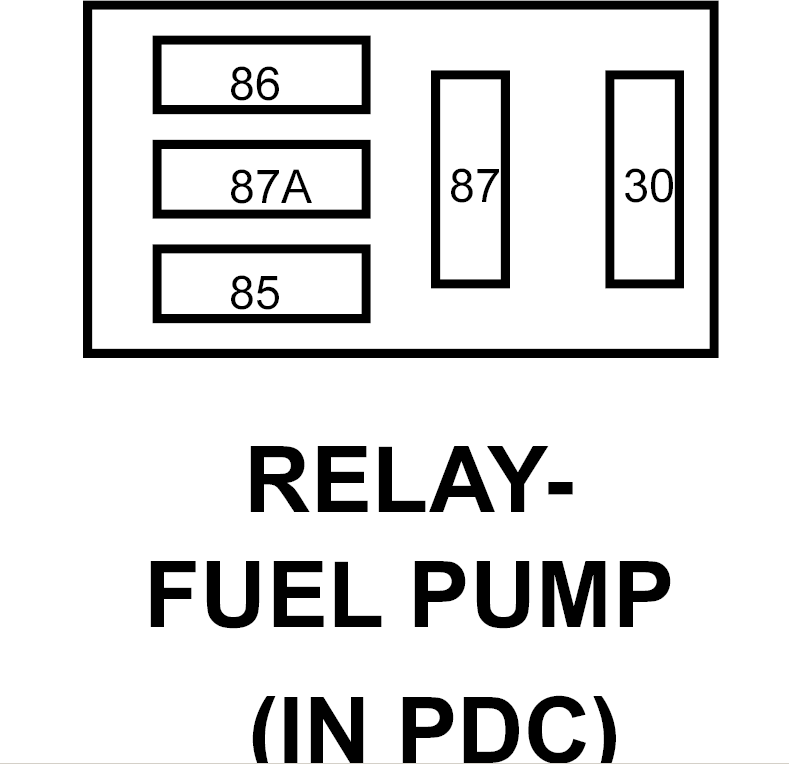

FUEL PUMP RELAY CONTROL |
| 86 |
A15 16RD/TN |
FUSED ASD RELAY OUTPUT DIESEL |
| 86 |
F942 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) GAS |
| 87 |
A109 16OR/RD |
FUEL PUMP RELAY OUTPUT |
| 87A |
- |
- |
