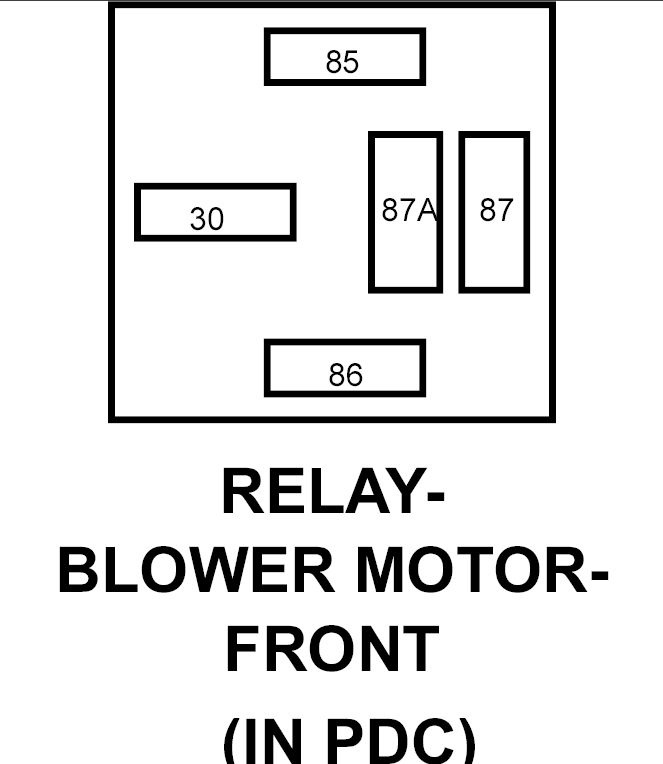

Front Blower Motor Relay Connector End View
RELAY-BLOWER MOTOR-FRONT - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A502 12RD/LG |
FUSED B(+) |
| 85 |
Z387 20BK |
GROUND |
| 86 |
F921 20PK/GY |
FUSED RUN RELAY OUTPUT |
| 87 |
C7 12DB |
FRONT BLOWER MOTOR RELAY OUTPUT |
| 87A |
- |
- |
