Front Blower Motor (Manual Temperature Control) Connector End View

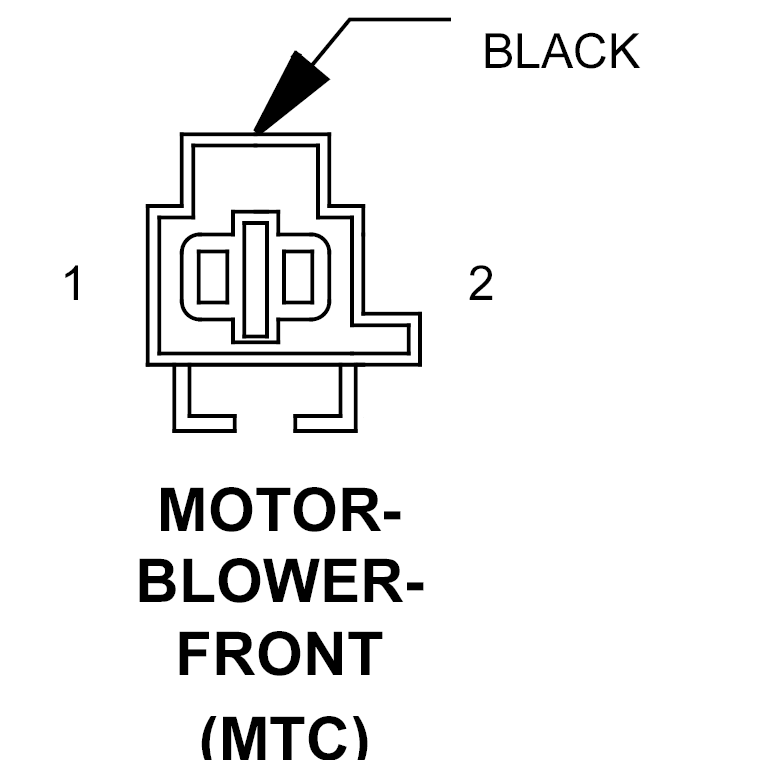

MOTOR-BLOWER-FRONT - BLACK 2-WAY(MTC)

GXK780274Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C7 12DB FRONT BLOWER MOTOR RELAY OUTPUT
2 C75 12LB BLOWER HIGH SPEED
