Engine Coolant Temperature Sensor (Diesel) Connector End View

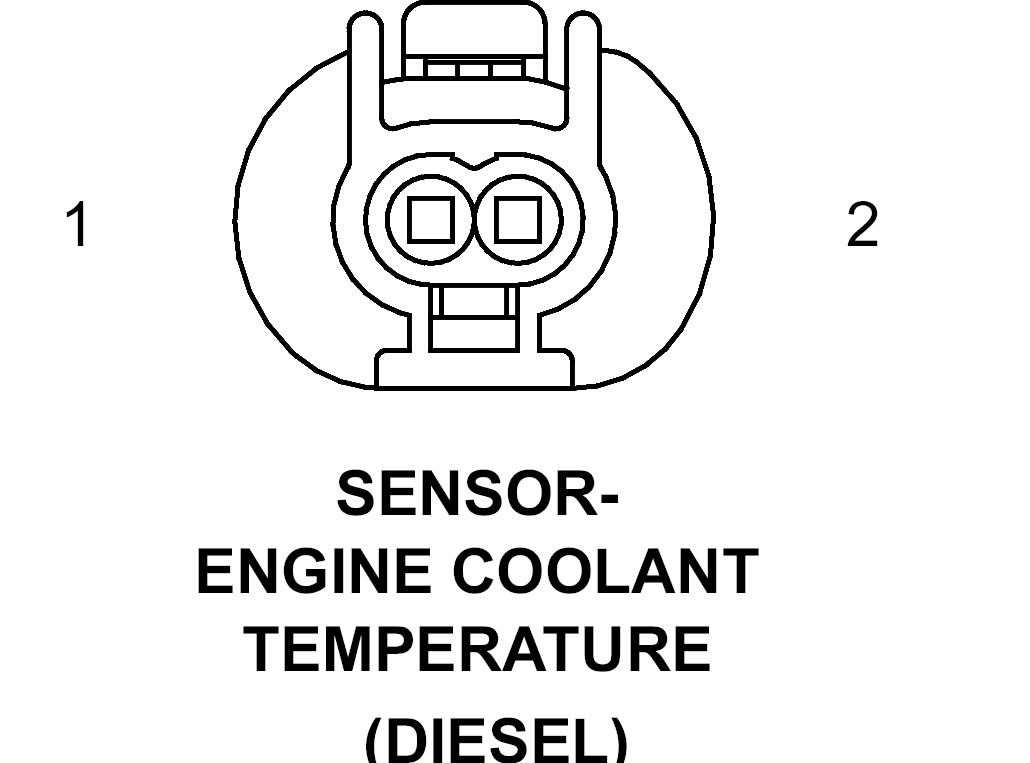

SENSOR-ENGINE COOLANT TEMPERATURE - 2-WAY(DIESEL)

GXK780322Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K222 18BR/RD ECT GROUND
2 K2 20DG/RD ECT SIGNAL
