Engine Coolant Temperature Sensor (3.7L/4.7L) Connector End View

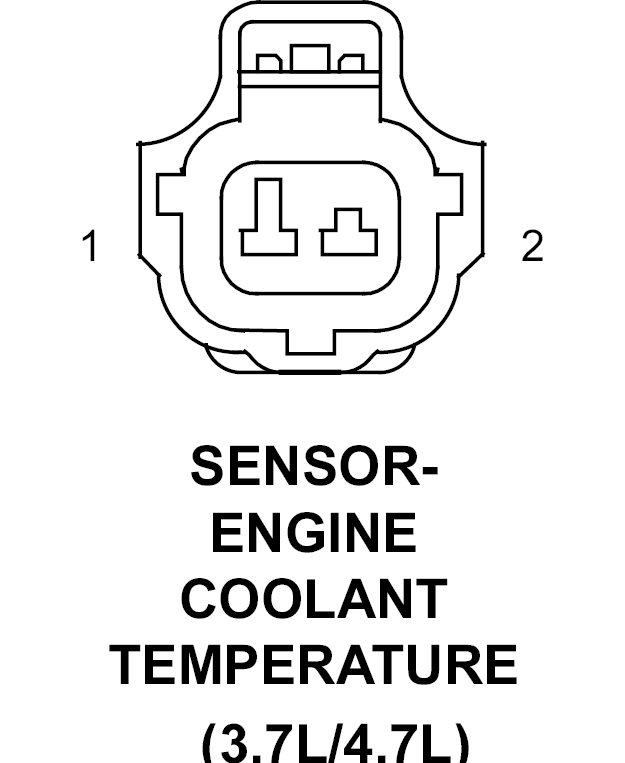

SENSOR-ENGINE COOLANT TEMPERATURE - 2-WAY(3.7L/4.7L)

GXK780320Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K2 20VT/OR ECT SIGNAL
2 K900 20DB/DG SENSOR GROUND
