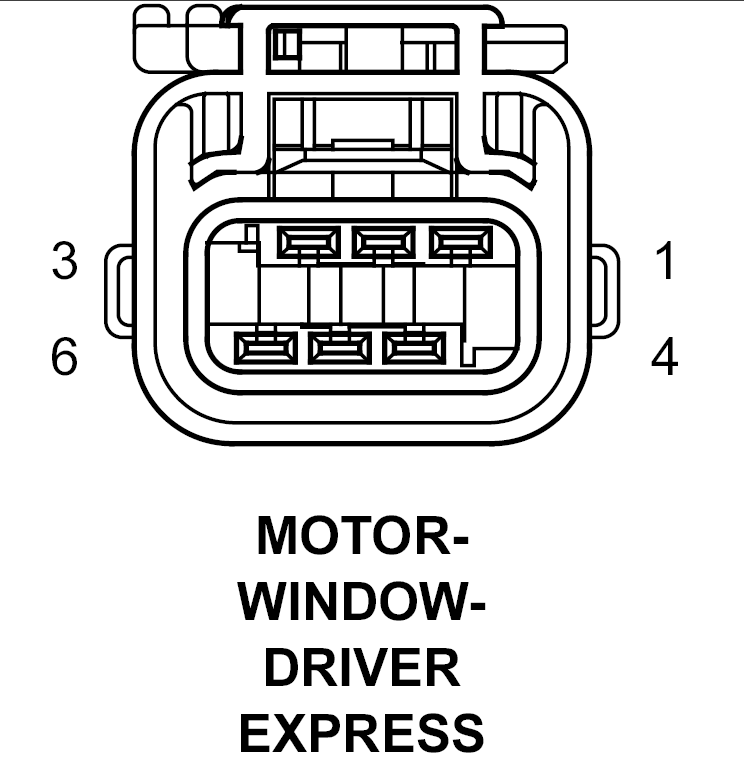

Driver Window Express Motor Connector End View
MOTOR-WINDOW-DRIVER EXPRESS - 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q311 16OR/LB | DRIVER WINDOW EXPRESS UP DRIVER |
| 2 | Q303 20WT/OR | DRIVER WINDOW HALL SENSOR B SIGNAL |
| 3 | Q321 16OR/DB | DRIVER WINDOW EXPRESS DOWN DRIVER |
| 4 | Q991 20BK/OR | DRIVER WINDOW HALL SENSOR RETURN |
| 5 | Q305 20OR | DRIVER WINDOW HALL SENSOR SUPPLY |
| 6 | Q301 20OR/WT | DRIVER WINDOW HALL SENSOR A SIGNAL |
