Driver Seat Track Position Sensor Connector End View

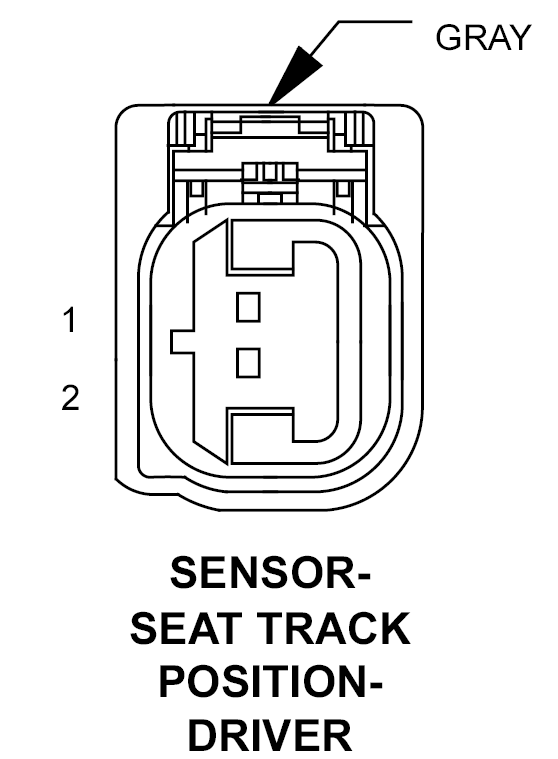

SENSOR-SEAT TRACK POSITION-DRIVER - GRAY 2-WAY

GXK780370Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 R261 20LB/BK DRIVER SEAT POSITION SENSOR DATA
2 R263 20LB/VT DRIVER SEAT POSITION SENSOR VOLTAGE
