Brake Fluid Level Sensor Connector End View

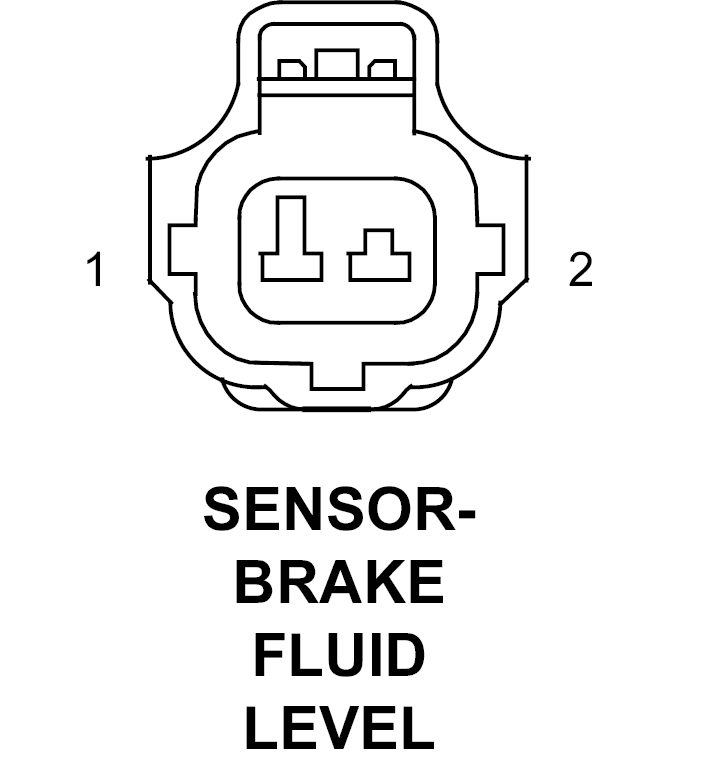

SENSOR-BRAKE FLUID LEVEL - 2-WAY

GXK780312Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
2 Z387 20BK GROUND
