Automatic Headlamp Sensor Connector End View

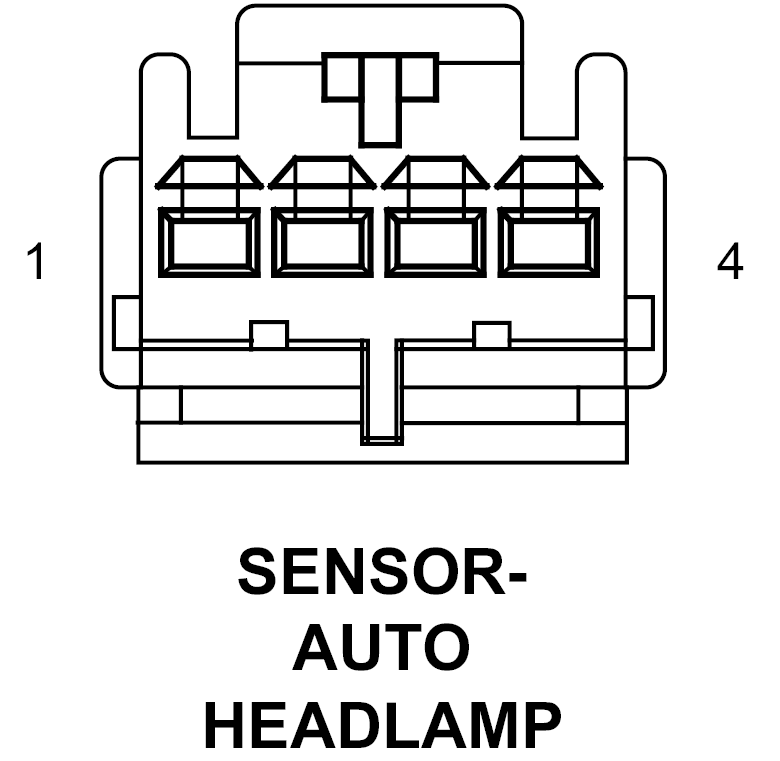

SENSOR-AUTO HEADLAMP - 4-WAY

GXK780310Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 L924 20WT/TN AUTO HEADLAMPS SIGNAL RETURN
3 L24 20WT/VT AUTO HEADLAMPS SIGNAL
4 - -
