Front Control Panel

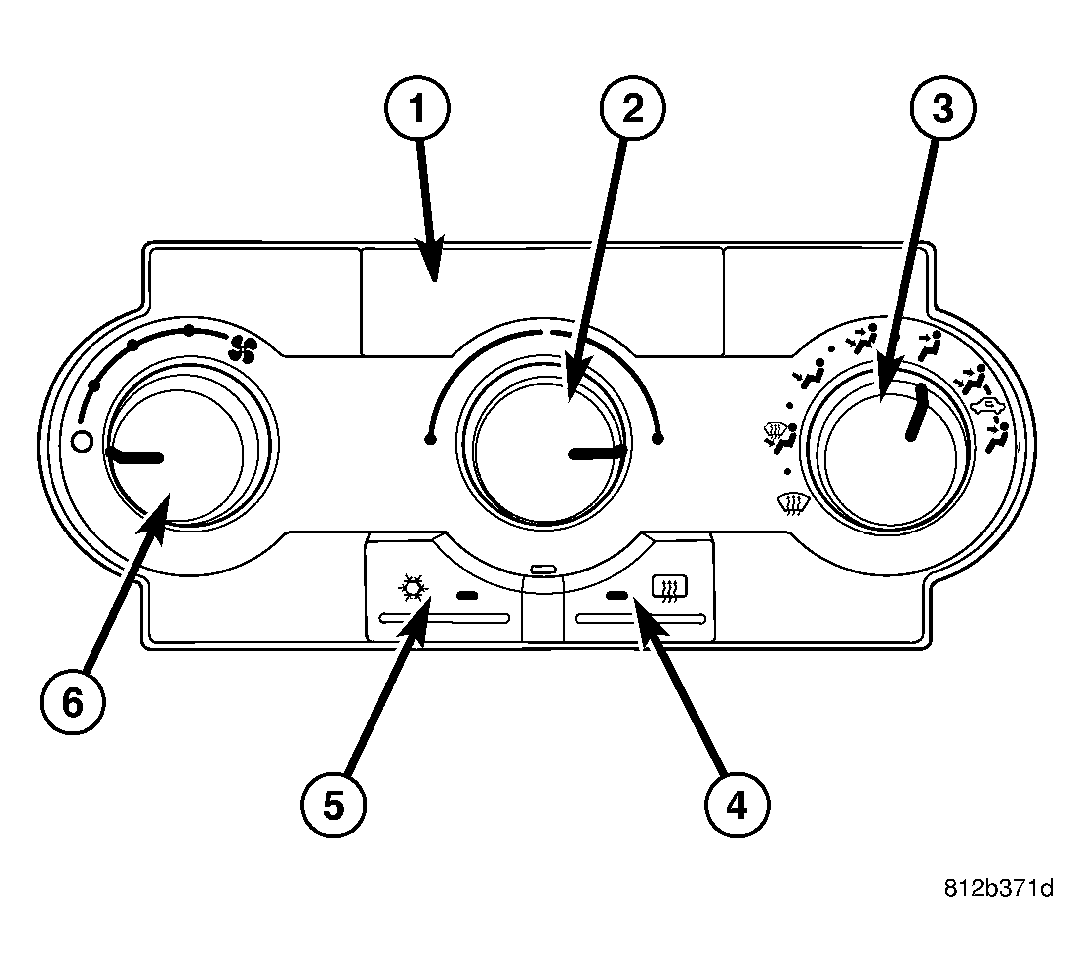

Fig 1: Identifying A/C Heater Control (Manual)
GC0013930Courtesy of CHRYSLER LLC

The front A/C-heater control and integral computer is located in the instrument panel and contains:

  1. a rotary control knob for temperature control of the discharged air (2).
  2. a rotary control knob for recirculation and mode control of the discharged air (3).
  3. a push button rear window defogger on/off control (4). The defogger button contains an LED that illuminates when the rear window defogger system is in operation.
  4. a push button A/C on/off control (5). The Snowflake button contains an LED that illuminates when the A/C system is in operation.
  5. a rotary control knob for fan speed selection and turning the front heating-A/C system off (6).

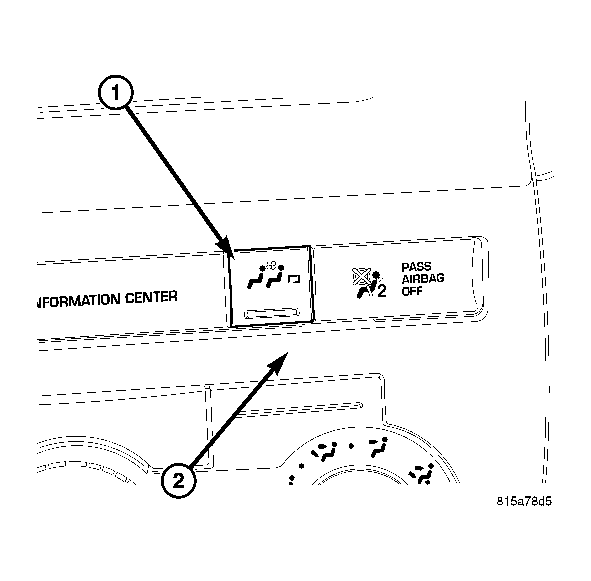

Fig 2: Identifying Rear Blower Motor
GC0045248Courtesy of CHRYSLER LLC

Primary on/off control for the rear blower motor is provided by a switch (1) located in the accessory switch bezel (2) above the front A/C-heater control.
