Remote Start Antenna Module: Removal: Removal

Fig 1: Remote Start Antenna Module Assembly

Courtesy of CHRYSLER LLC

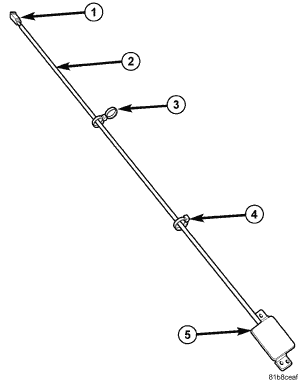

The Remote Start Antenna Module Assembly consists of an electrical connection to the WCM/SKREEM (1), a length of coax cable (2), mounting clips or tie wraps (3) and (4), and a control module/antenna (5).

Fig 2: Location Remote Start Module

Courtesy of CHRYSLER LLC

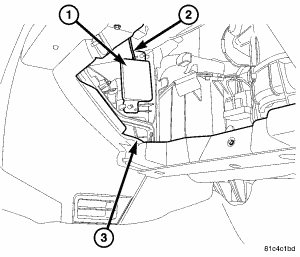

The control module (1) is located behind and to the left side of the glove box opening (3). The module electrical connector plugs into the WCM/SKREEM attached to the ignition switch located near the right side of the steering column.

1. Disconnect and isolate negative cable from battery.
2. Remove glove box. Refer to Glove Box Assembly REMOVAL .
3. Remove radio to gain access to coax cable tie wraps. Refer to Radio REMOVAL .
   Fig 3: Ignition Switch Bezel

   Courtesy of CHRYSLER LLC
4. Use a plastic trim removal stick (2) to remove ignition switch bezel (1). Bezel snaps on.
   Fig 4: Instrument Panel Cluster Bezel

   Courtesy of CHRYSLER LLC
5. Use a plastic trim removal stick (2) to remove I.P. cluster bezel (1). Bezel snaps on.
   Fig 5: Silencer

   Courtesy of CHRYSLER LLC
6. Remove silencer pad (1) (two screws).
   Fig 6: Knee Blocker

   Courtesy of CHRYSLER LLC
7. Remove knee blocker (1).
   Fig 7: Ignition Switch Mount Screws - Front

   Courtesy of CHRYSLER LLC

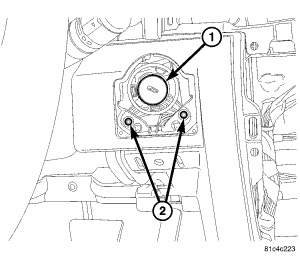

8. Remove two ignition switch front mounting Torque screws (2).
   Fig 8: Ignition Switch Mounting Screw - Top

   Courtesy of CHRYSLER LLC

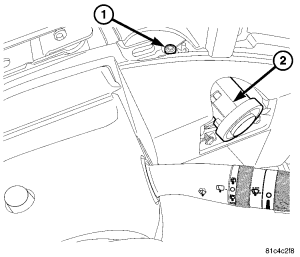

9. Remove one ignition switch top mounting Torque screw (1).
   Fig 9: Removing/Installing Starter Coax At WCM/SKREEM

   Courtesy of CHRYSLER LLC
10. Rotate ignition switch assembly (1) to gain access to module electrical connector (2).
11. Disconnect coax cable electrical connector (2) at WCM/SKREEM.
    Fig 10: Mounting Clips For Remote Start Module

    Courtesy of CHRYSLER LLC

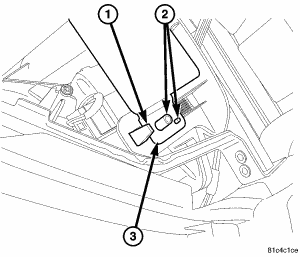

12. Remove module (3) from IP by prying on release tabs (1) while sliding module from locating pins (2).
    Fig 11: Remote Start Antenna Module Assembly

    Courtesy of CHRYSLER LLC

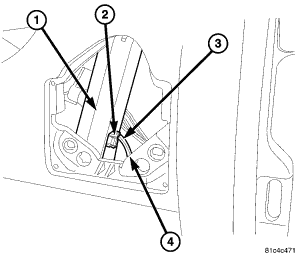

13. Locate and carefully cut coax cable tie wraps (3) and (4). Before removing the assembly, note locations of these tie wraps.
14. Fish coax cable (2) through IP openings.
