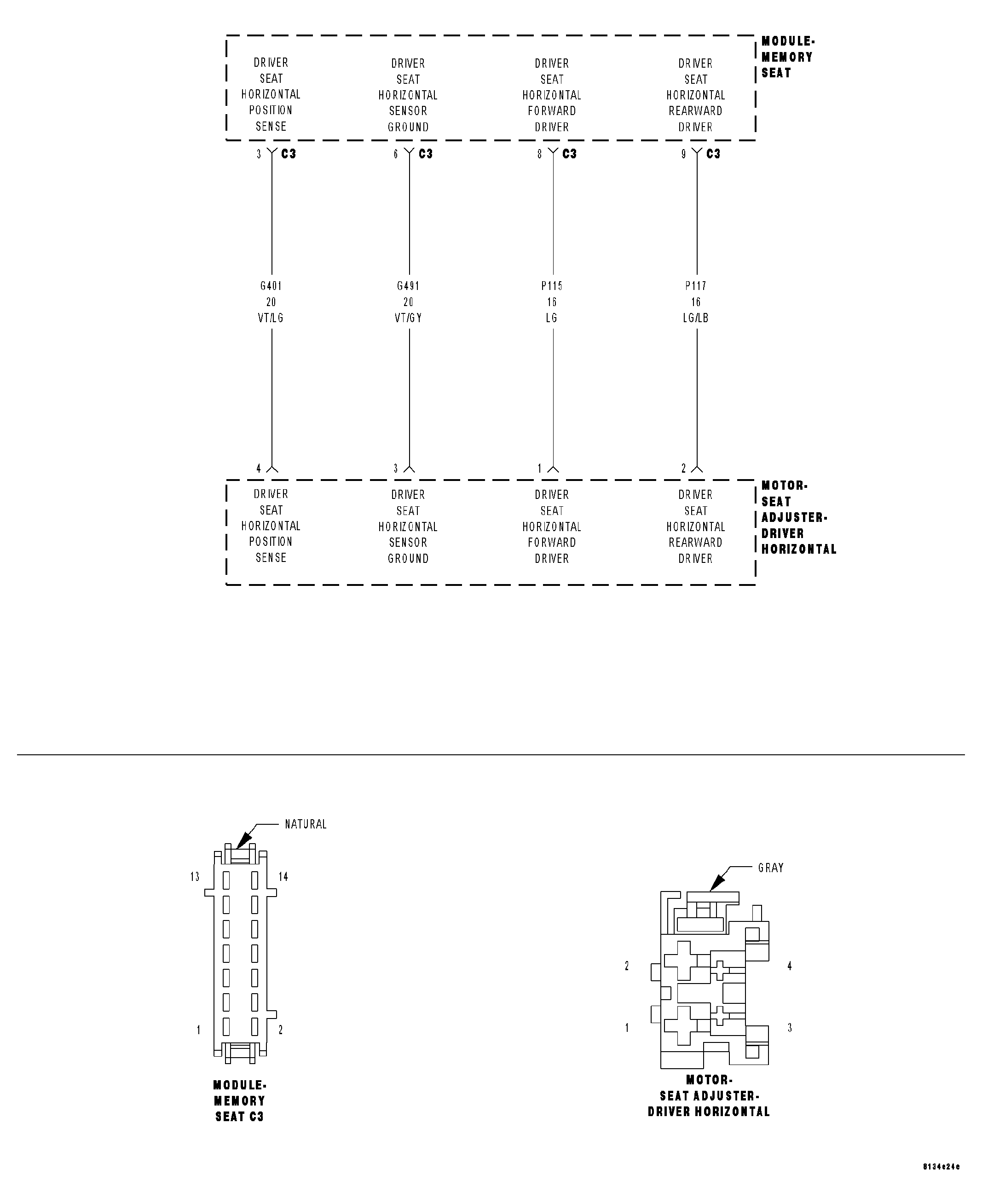

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Power Seat System - Electrical Diagnostics >> Power Seats - Electrical Diagnostics >> DTC Troubleshooting >> B1D7B-Seat Horizontal Motor Control Circuit Performance >> Circuit Schematic
