Cradle-Rear Body

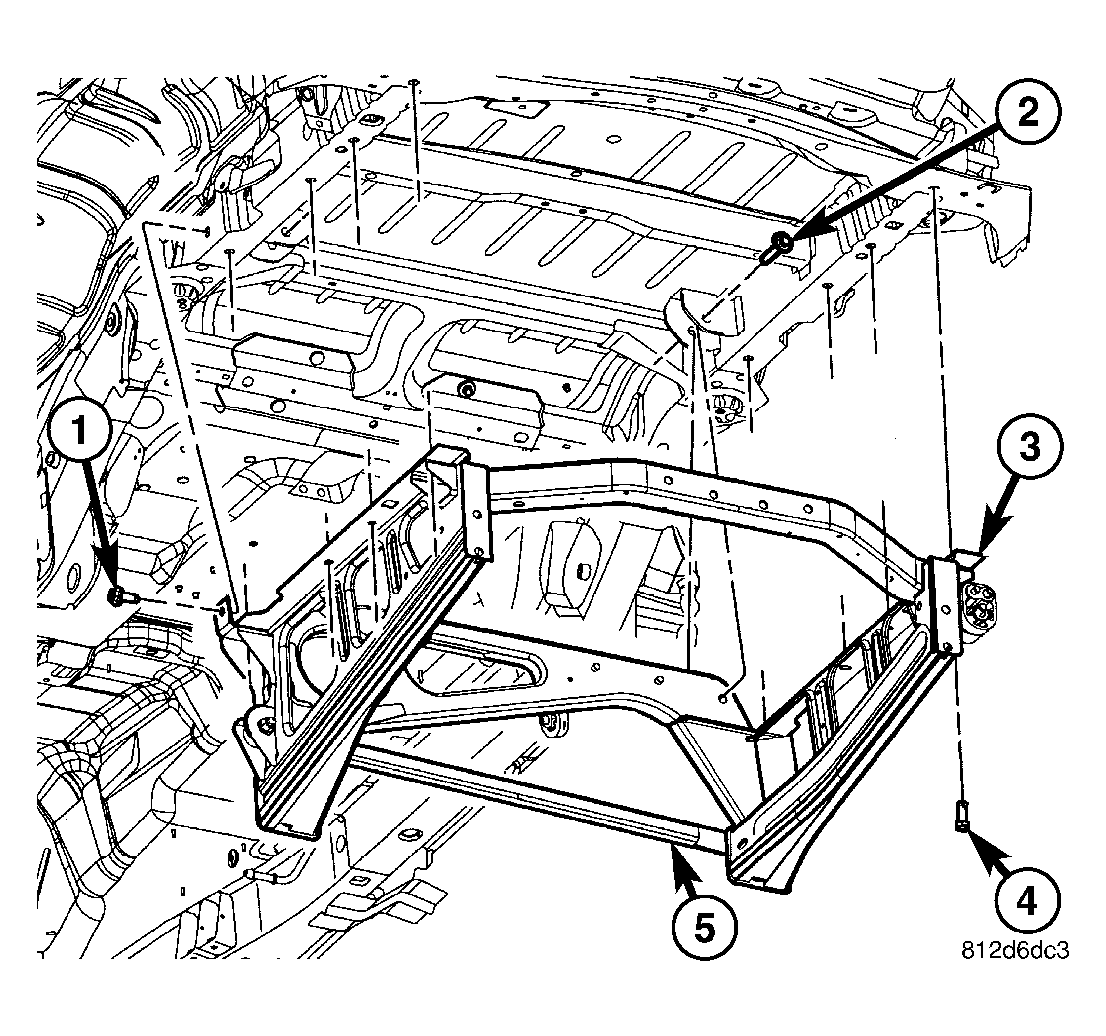

Fig 1: Cradle
GC0027788Courtesy of CHRYSLER LLC
  1. Install the cradle and install the rail bolts (4).
  2. Align the cradle to the marks made previously.
  3. Tighten the bolts (4) to 108 N.m (80 ft. lbs.).
  4. Install the side cradle bolt (1).
  5. Tighten the bolt (1) to 108 N.m (80 ft. lbs.).
  6. Install the upper cradle bolts (2).
  7. Tighten the bolts (2) to 102 N.m (75 ft. lbs.).

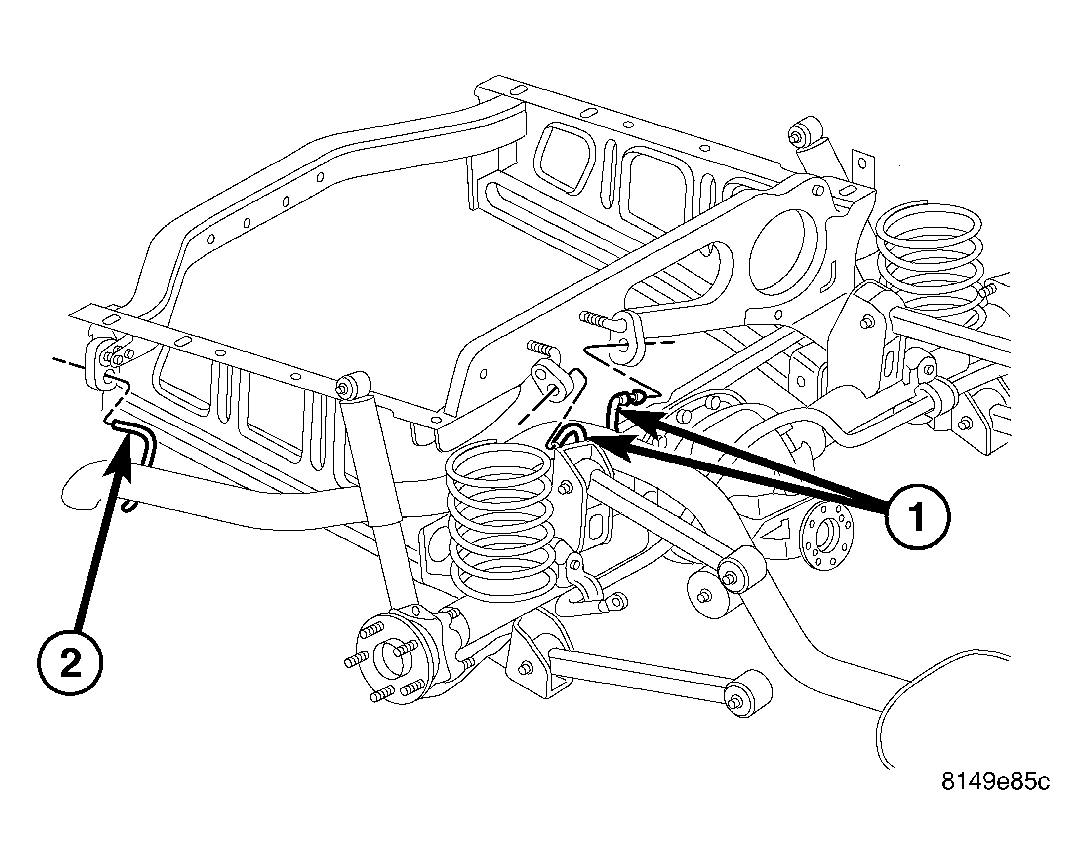

    Fig 2: Exhaust Hangers
    GC0027789Courtesy of CHRYSLER LLC
  8. Connect the exhaust hangers (1 and 2).

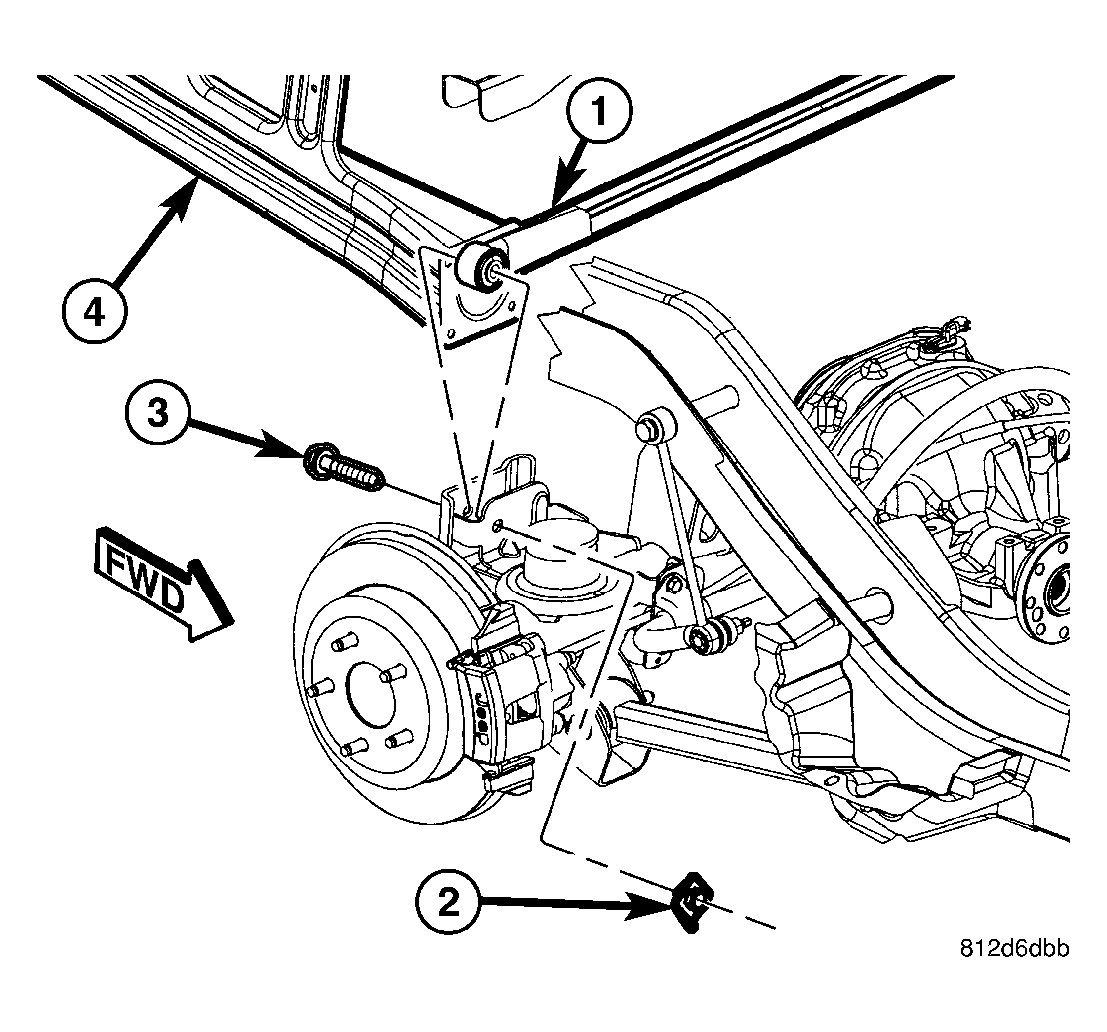

    Fig 3: Sway Bar Attachments
    GC0027787Courtesy of CHRYSLER LLC
  9. Attach the track bar (1) and install the outer bolt (3) and nut (2).
  10. Tighten the bolt (3) to 190 N.m (140 ft. lbs.).

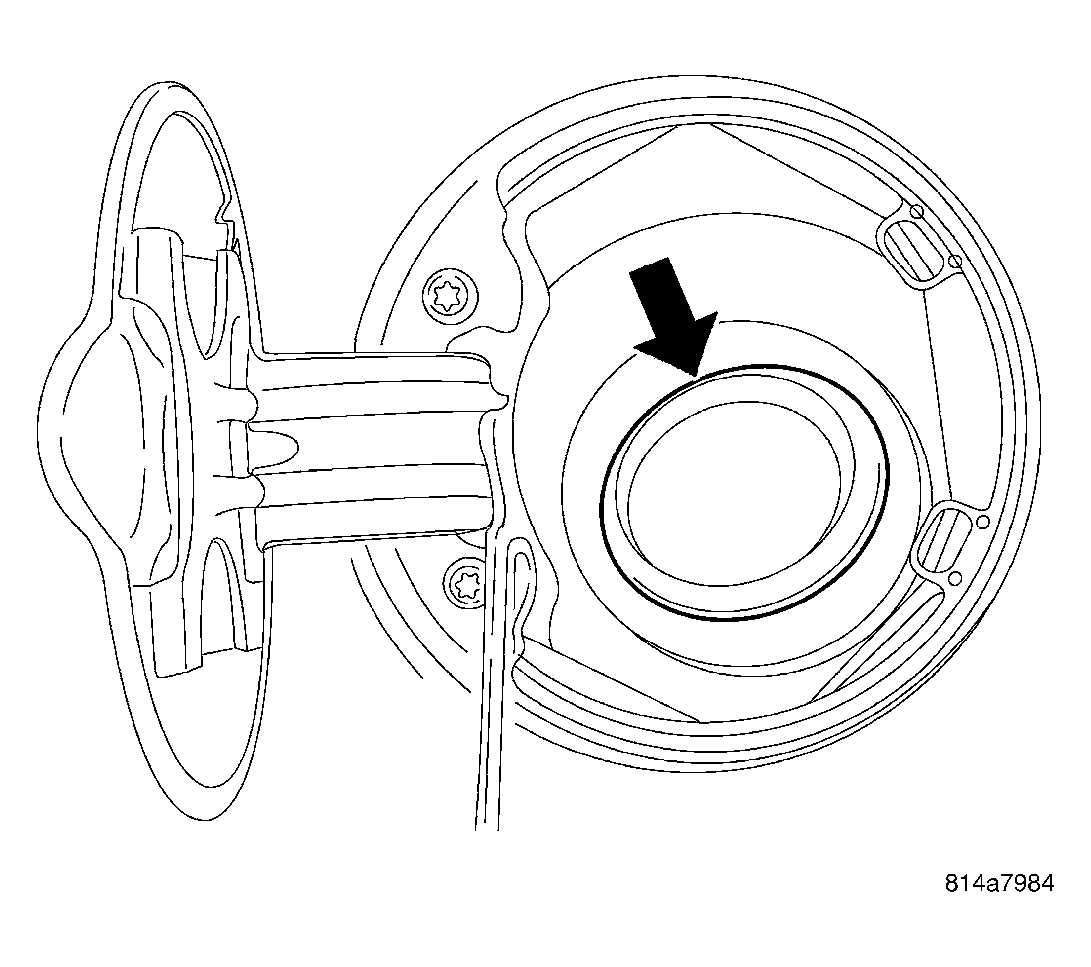

    Fig 4: Filler Tube Grommet
    GC0027795Courtesy of CHRYSLER LLC
  11. Verify that the fuel filler tube grommet is in place and lube the grommet to aid installation of the filler tube.

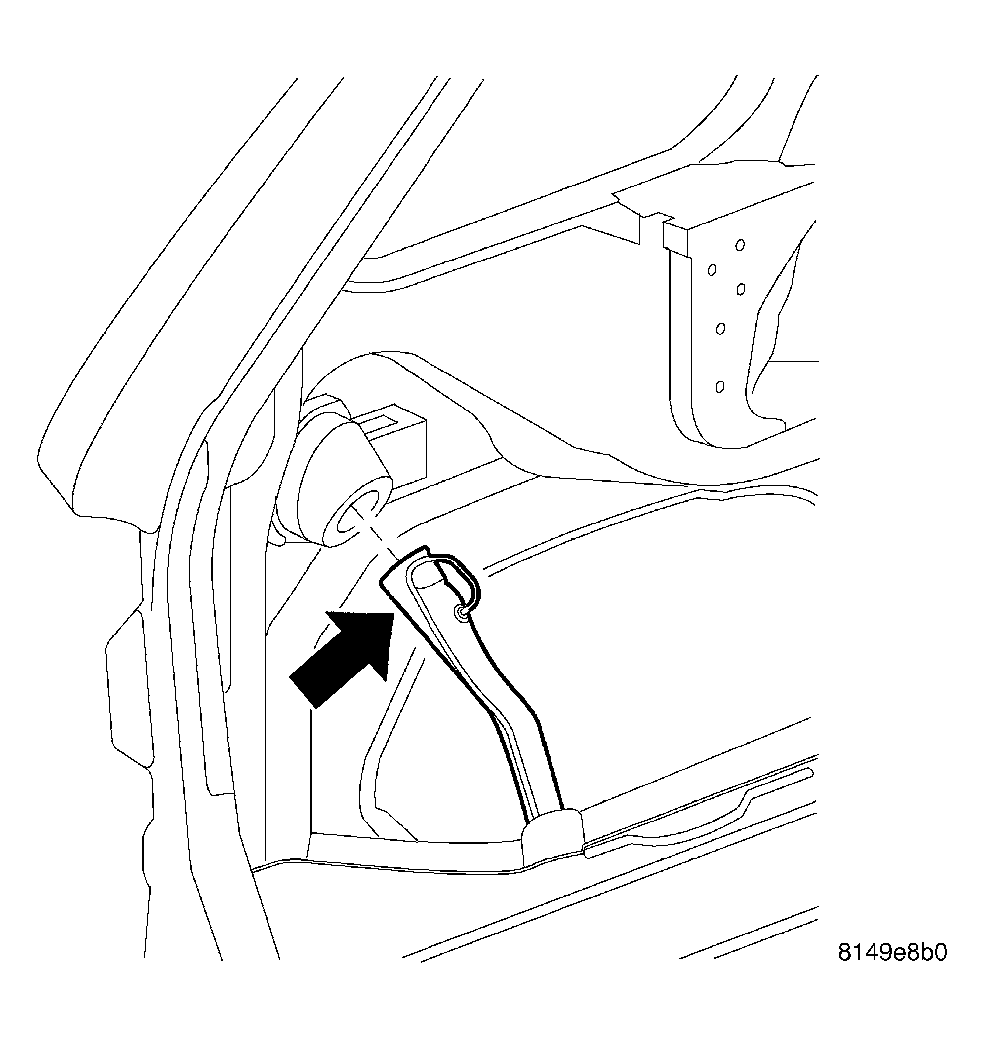

    Fig 5: Fuel Filler Neck
    GC0027791Courtesy of CHRYSLER LLC
  12. Install the filler tube through the grommet.

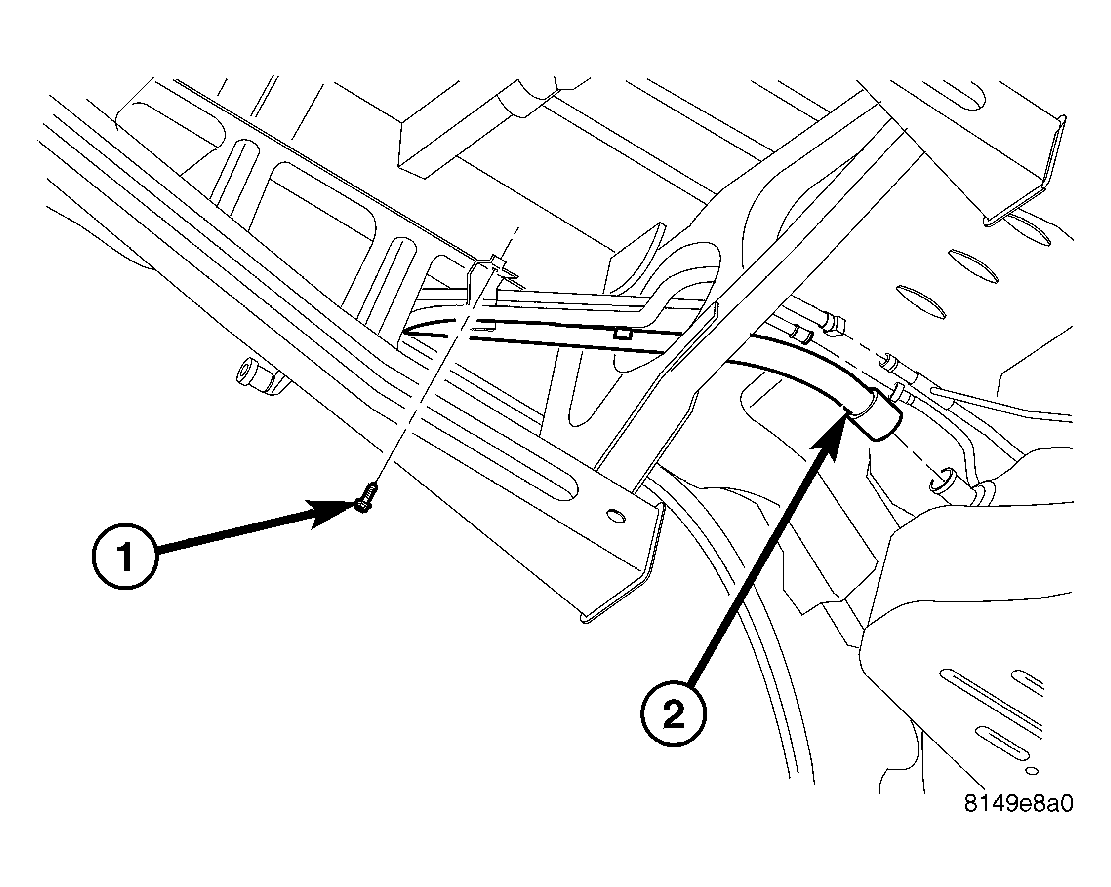

    Fig 6: Fuel Filler Tube & Fastener
    GC0027790Courtesy of CHRYSLER LLC
  13. Install the bolt (1) supporting the fuel filler tube (2) and tighten to 14 N.m (10 ft. lbs.).

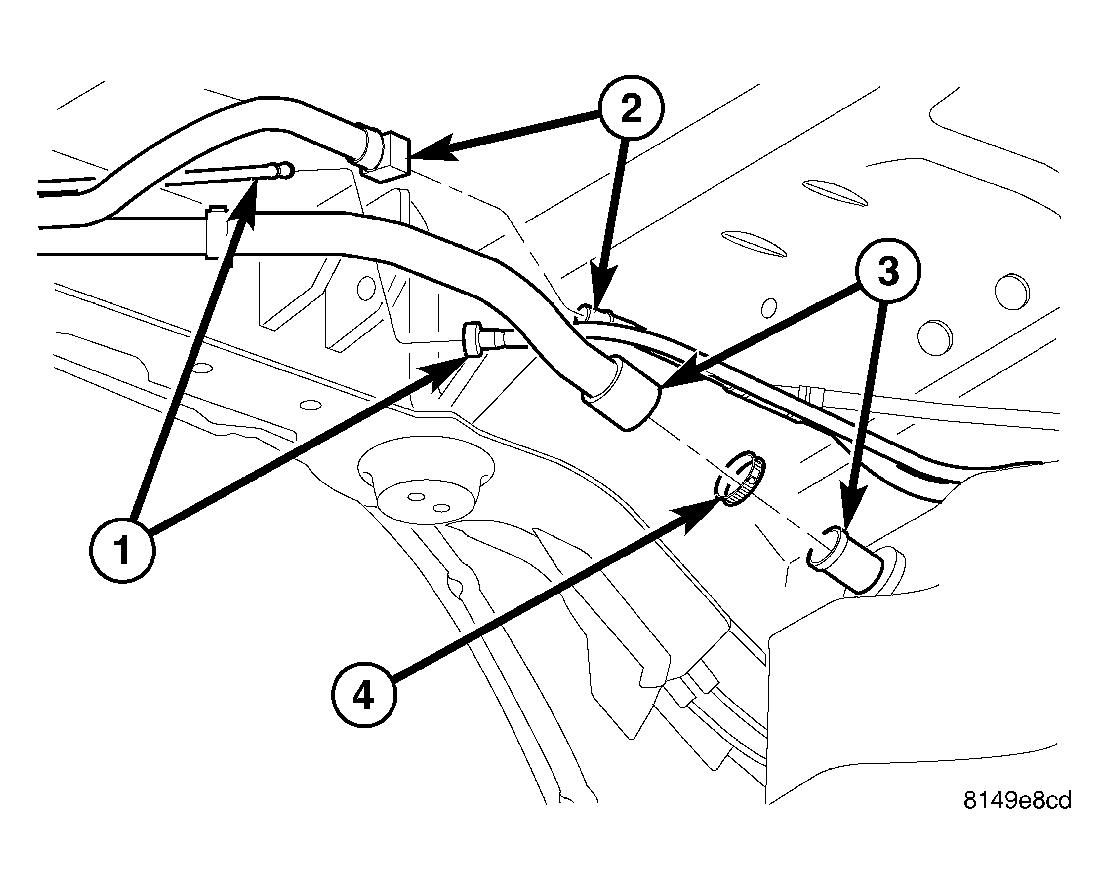

    Fig 7: Fuel Filler Hoses & Components
    GC0027792Courtesy of CHRYSLER LLC
  14. Connect the fuel filler hose (3) to the fuel tank and install the clamp (4).
  15. Connect the fuel line (1).
  16. Connect the vapor canister line (2).

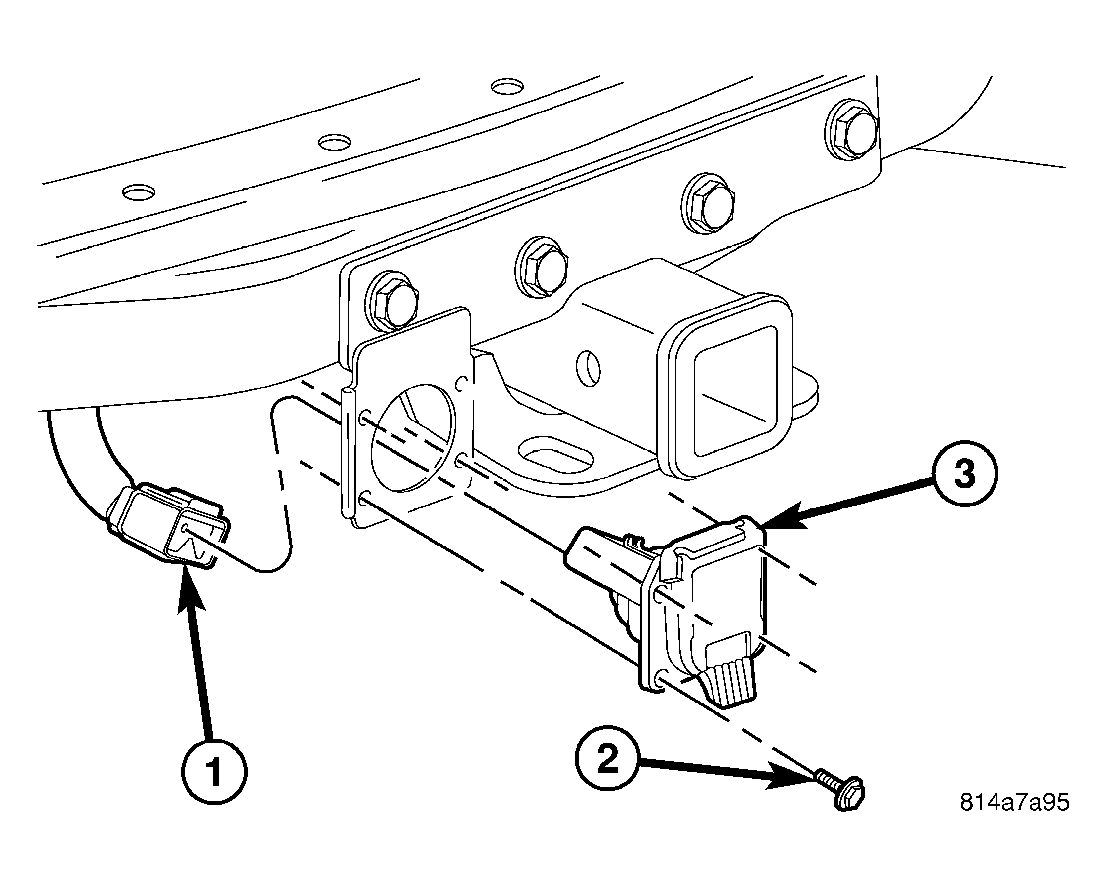

    Fig 8: Trailer Wiring
    GC0027800Courtesy of CHRYSLER LLC
  17. Connect the trailer wiring electrical connector (1).

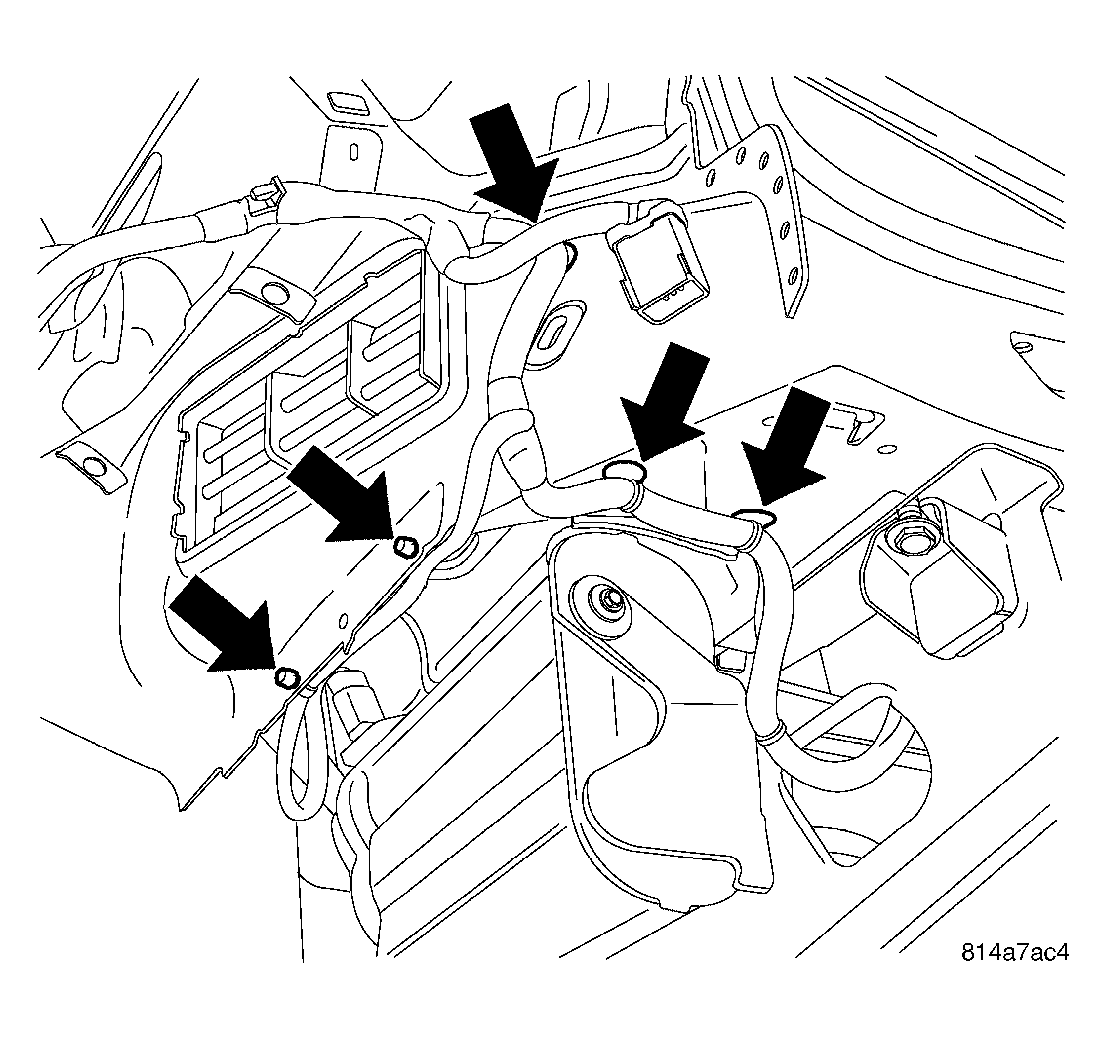

    Fig 9: Left Harness
    GC0027801Courtesy of CHRYSLER LLC
  18. Position the left wire harness through the cradle and secure the harness hangers.

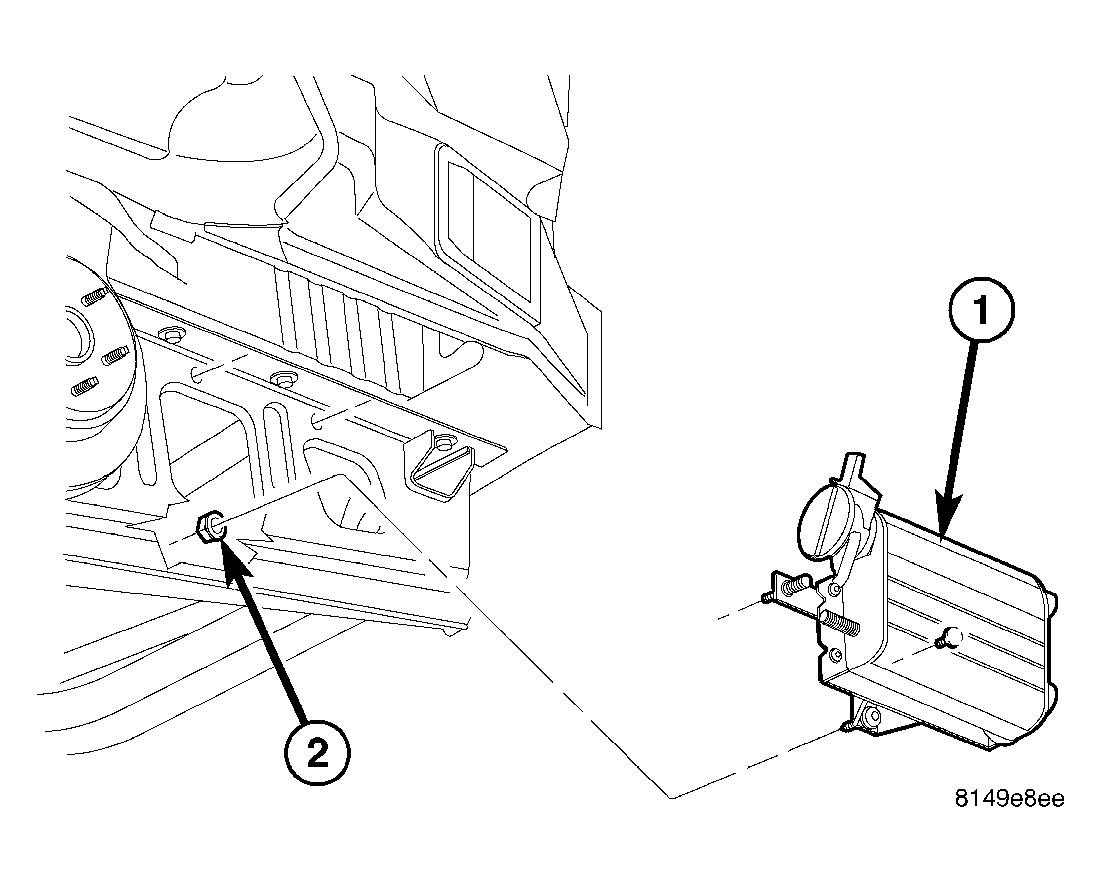

    Fig 10: Vapor Canister
    GC0027793Courtesy of CHRYSLER LLC
  19. Install the vapor canister (1) and install the lower canister nut (2).
  20. Tighten the nuts to 24 N.m (17 ft. lbs.).

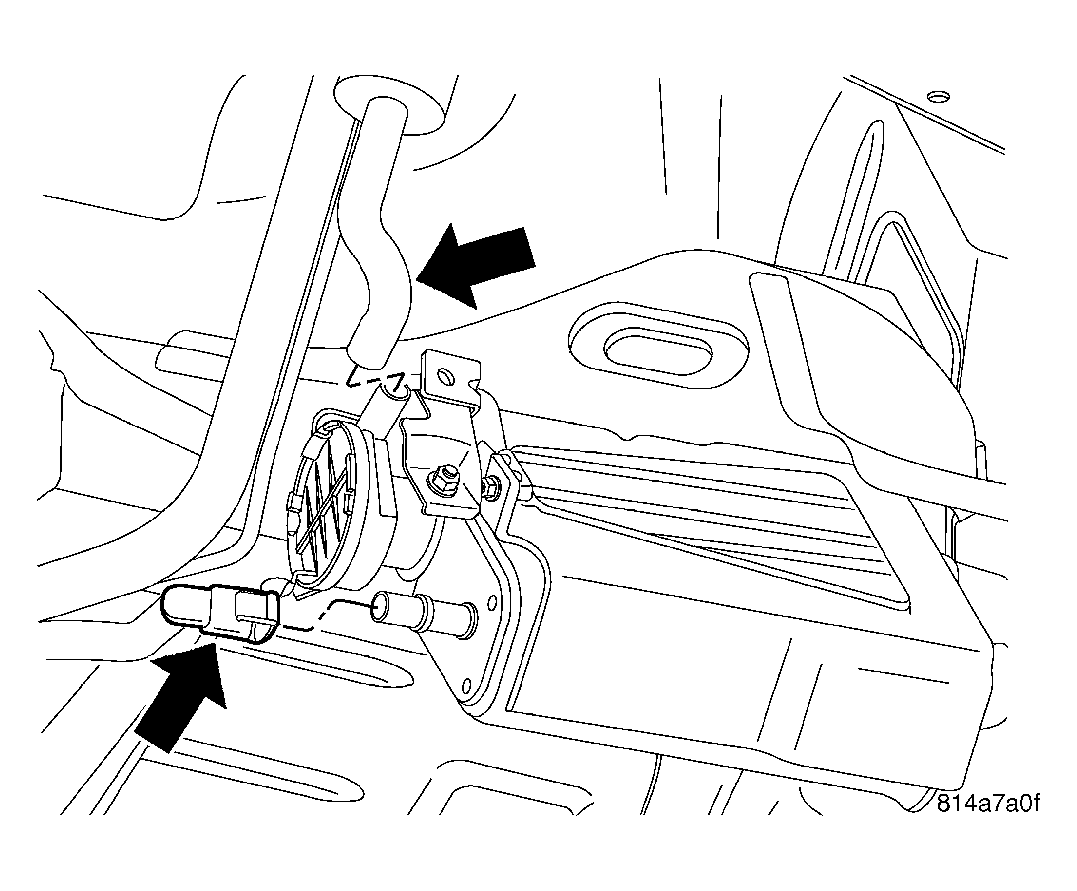

    Fig 11: Canister Hoses
    GC0027799Courtesy of CHRYSLER LLC
  21. Connect the vapor canister hoses.

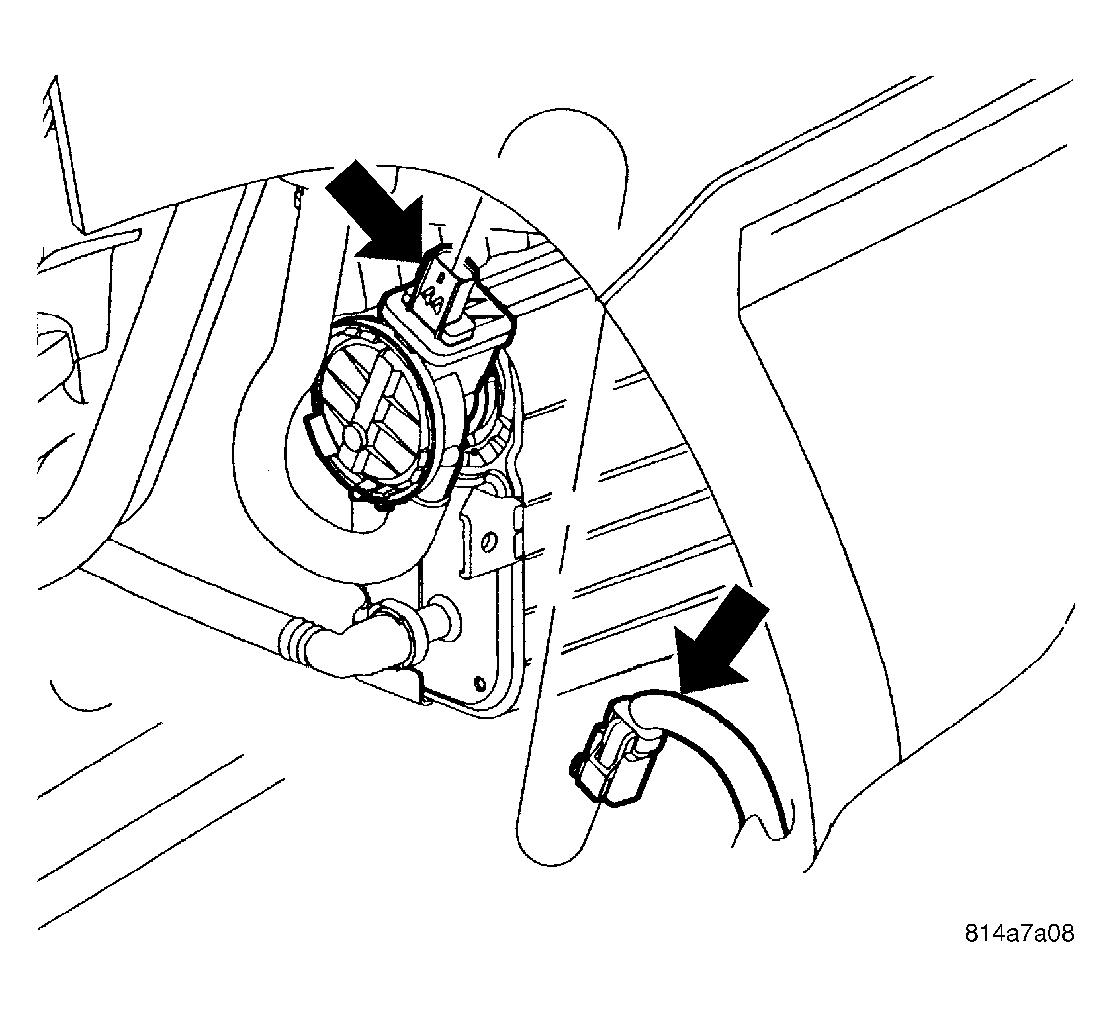

    Fig 12: Identifying Vapor Canister Electrical Connector
    GC0027798Courtesy of CHRYSLER LLC
  22. Connect the vapor canister electrical connector.

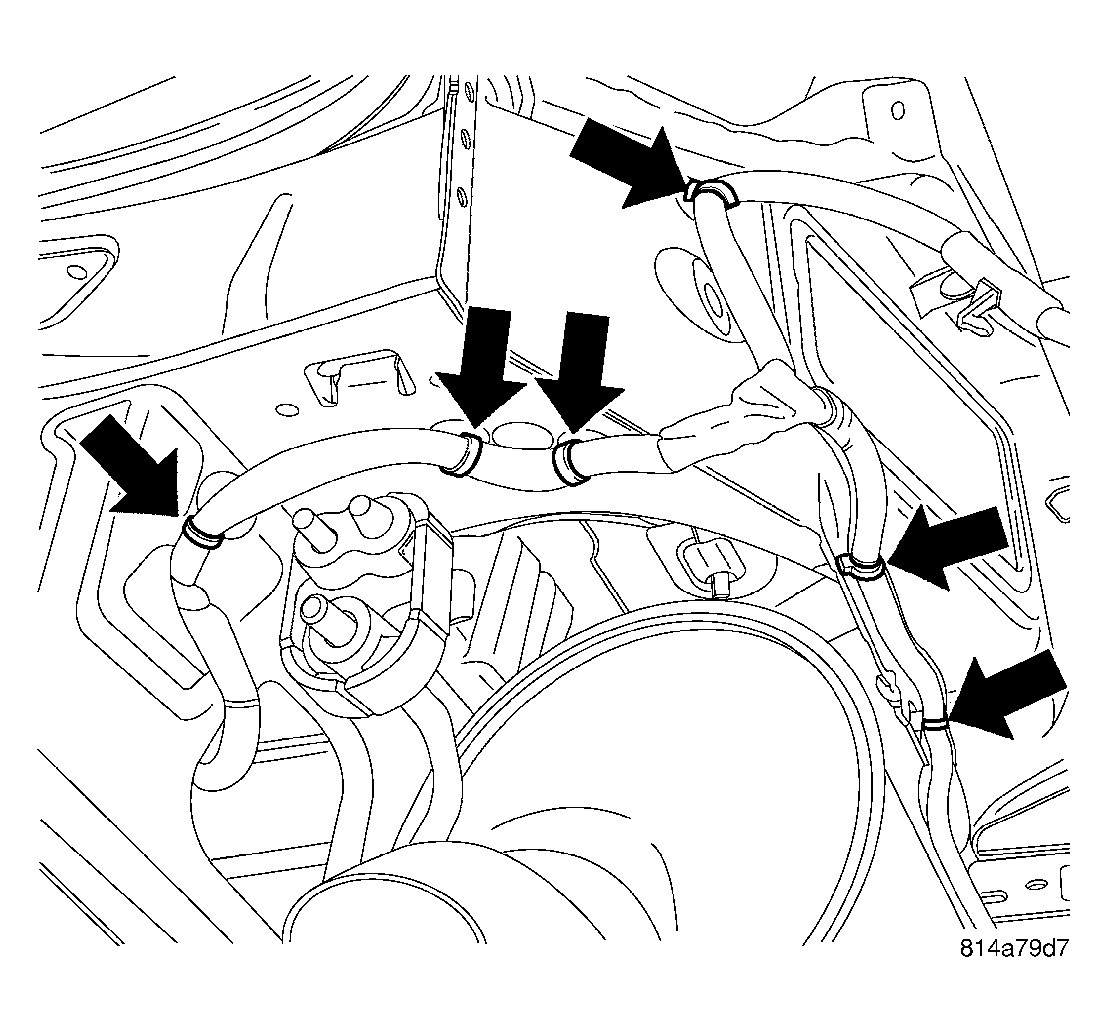

    Fig 13: Right Harness
    GC0027796Courtesy of CHRYSLER LLC
  23. Position the right wire harness through the cradle and secure the harness hangers.

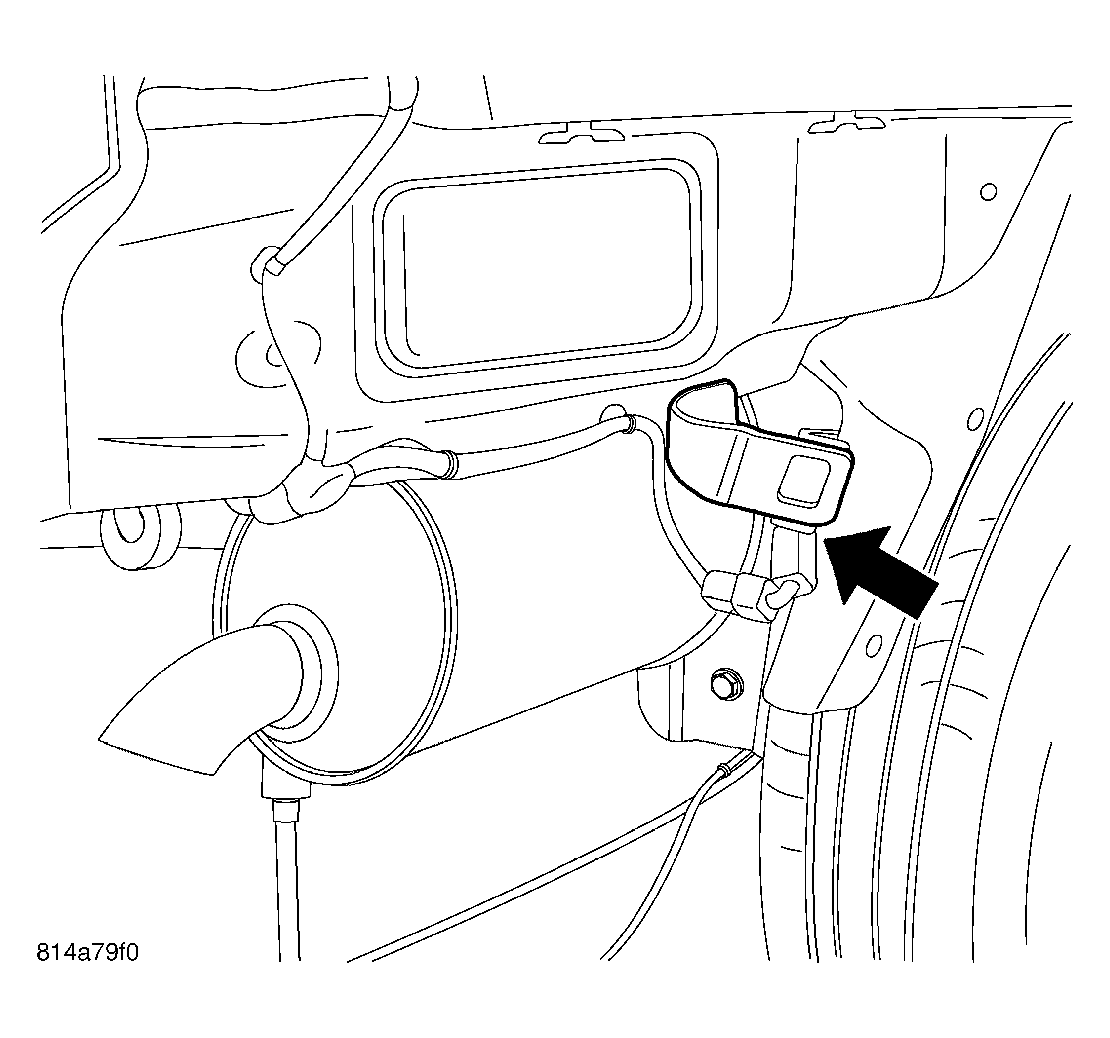

    Fig 14: Tire Pressure Monitor Sensor
    GC0027797Courtesy of CHRYSLER LLC
  24. Connect the tire pressure monitor sensor, if equipped.
  25. Install the fascia. See INSTALLATION .
  26. Install the spare wheel.
