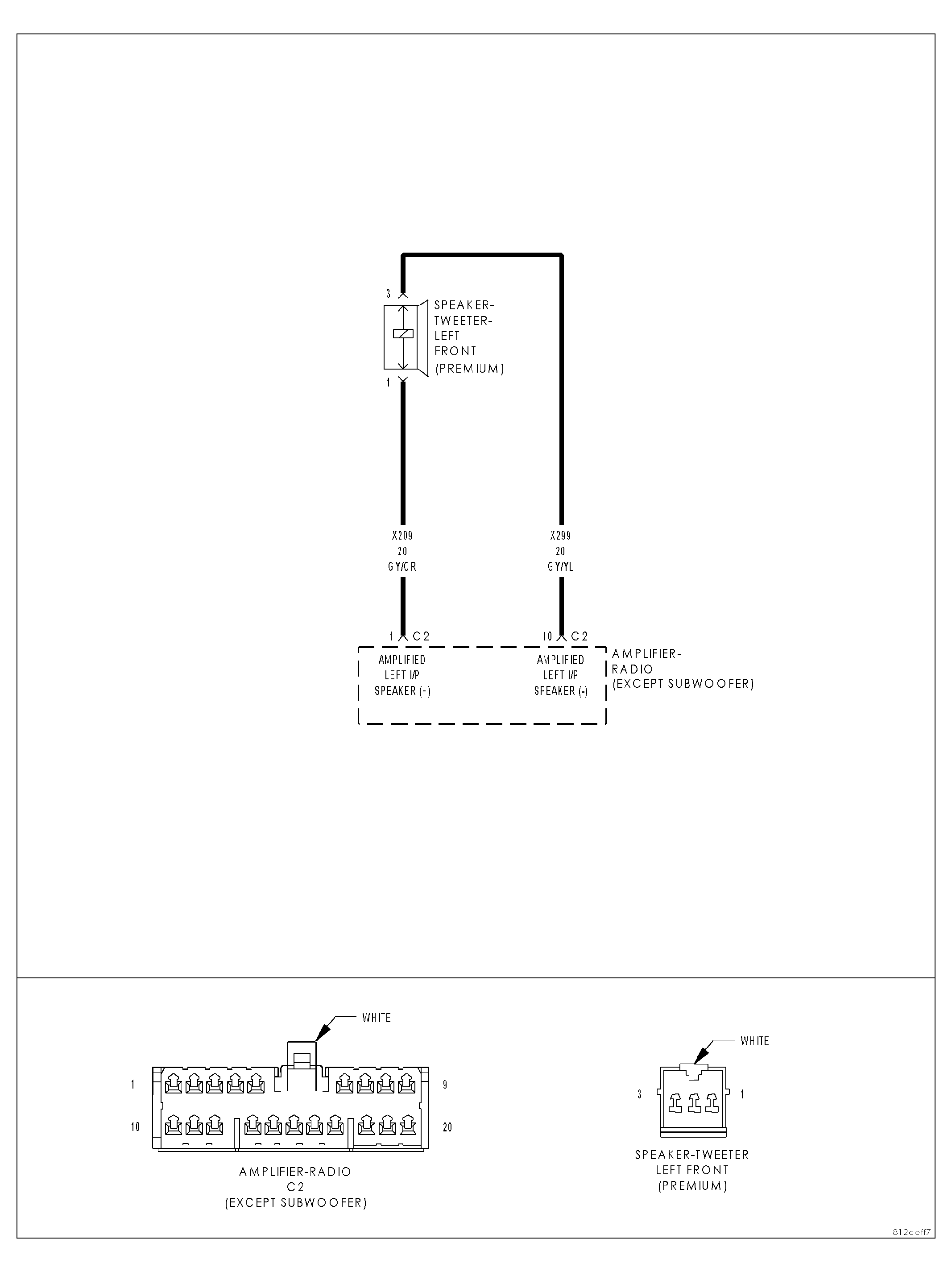

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio System & Video System - Electrical Diagnosis >> Audio/Video Systems - Electrical Diagnosis >> Diagnosis And Testing >> B1463-Channel 1 Audio Speaker Output Circuit Open >> Circuit Schematic
