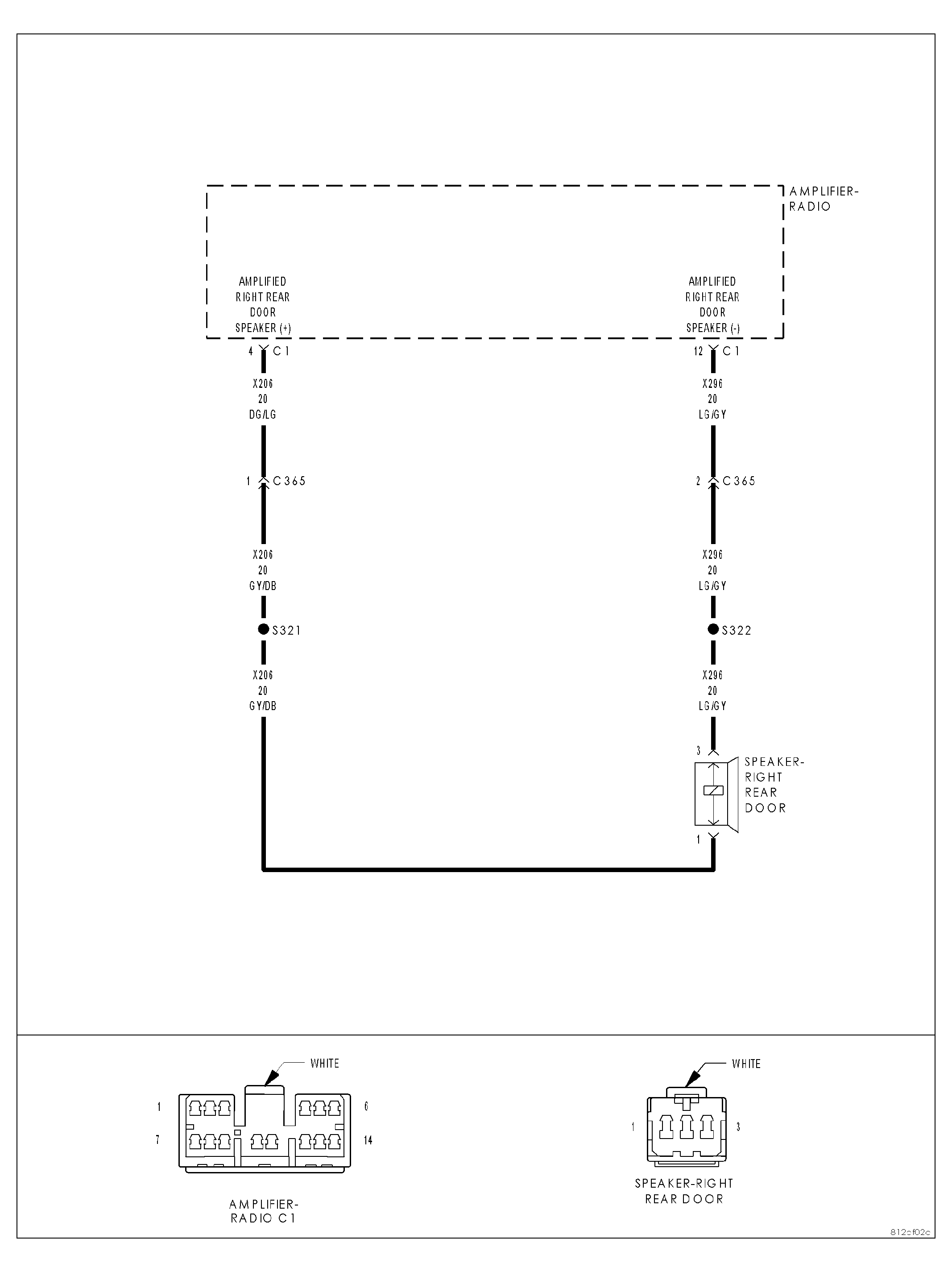

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio System & Video System - Electrical Diagnosis >> Audio/Video Systems - Electrical Diagnosis >> Diagnosis And Testing >> B145F-Rear Right Audio Speaker Output Circuit Shorted Together >> Circuit Schematic
