Diagnostic Test

1) CHECK FOR ACTIVE DTCS
With the scan tool, read the active DTC's.

Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.

With the scan tool, read the active DTC's.

Does the scan tool display this DTC as active?

Yes
1. Go to 2).
No
1. If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.
2) CHECK FRONT CONTROL MODULE DTC's
With the scan tool, read Front Control Module active DTC's

Does the scan tool display any CAN B BUS DTC's - ACTIVE?

Yes
1. Refer to DIAGNOSIS AND TESTING .
No
1. Go to 3).
3) (D55) CAN B BUS (+) CIRCUIT OPEN

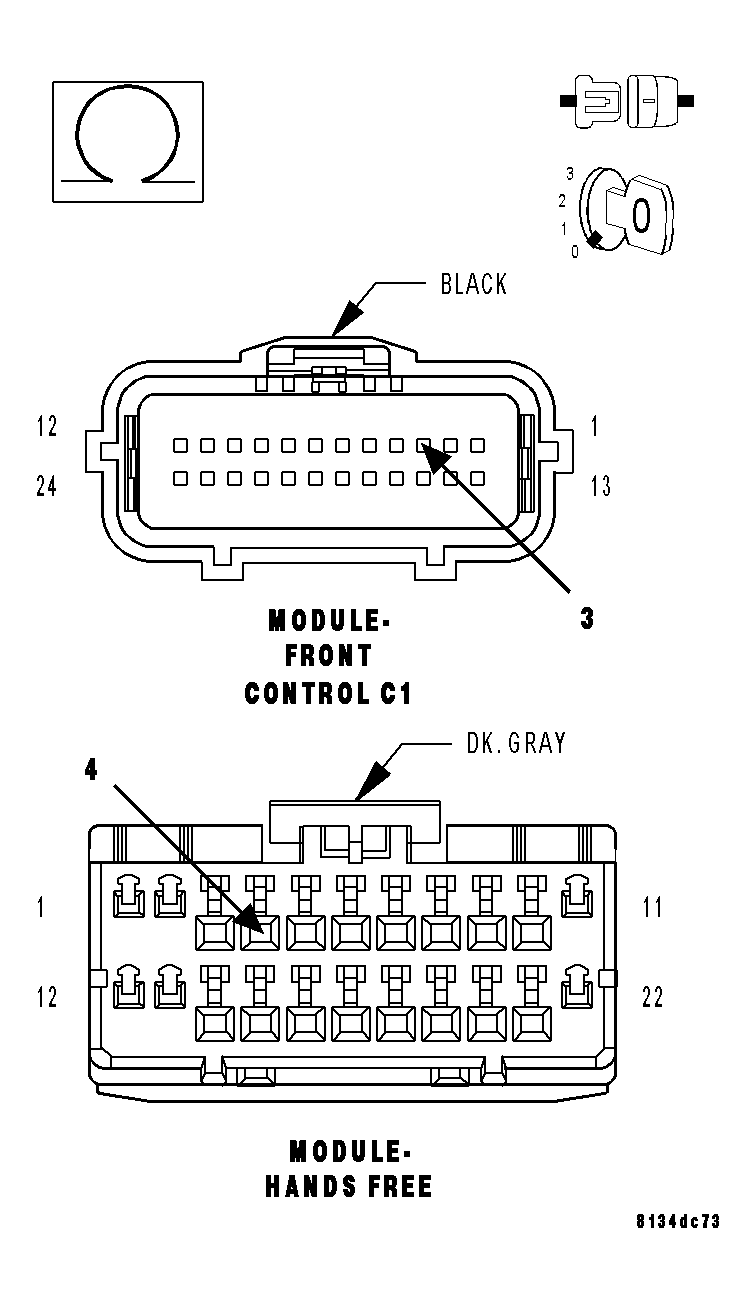

Fig 1: Checking CAN B BUS (+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the negative battery cable.

Disconnect the Hands Free Module connector.

Disconnect the Front Control Module C1 connector.

Measure the resistance of the (D55) CAN B Bus (+) circuit between the Front Control Module C1 connector and the Hands Free Module connector.

Is the resistance below 2.0 ohms?

Yes
1. Go to 4).
No
1. Repair the (D55) CAN B Bus (+) circuit for an open.
2. Perform BODY VERIFICATION TEST .
4) (D54) CAN B BUS (-) CIRCUIT OPEN

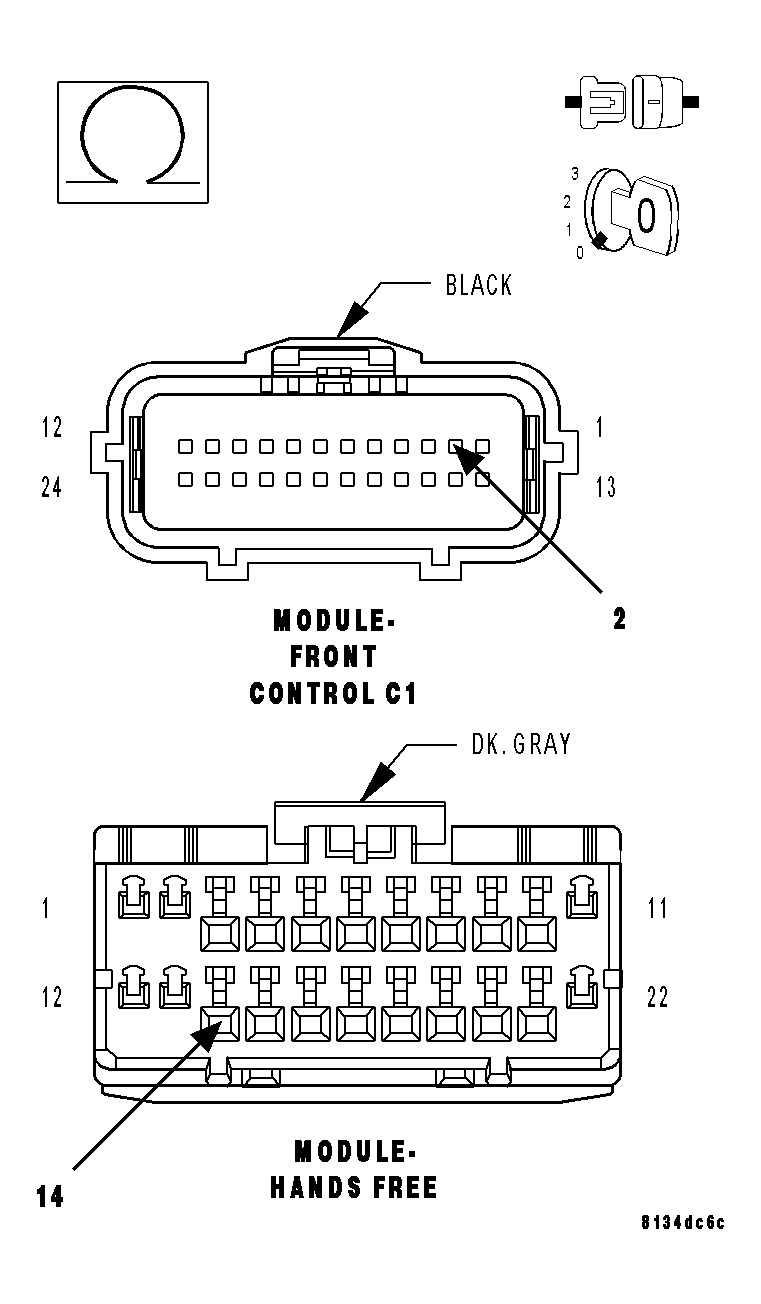

Fig 2: Checking CAN B BUS (-) Circuit
Courtesy of CHRYSLER LLC

Measure the resistance of the (D54) CAN B Bus (-) circuit between the Front Control Module C1 connector and the Hands Free Module connector.

Is the resistance below 2.0 ohms?

Yes
1. Replace the Hands Free Module in accordance with the service information.
2. Perform BODY VERIFICATION TEST .
No
1. Repair the (D54) CAN B Bus (-) circuit for an open.
2. Perform BODY VERIFICATION TEST .
