Right Seat Back Component Side Heater Connector End View

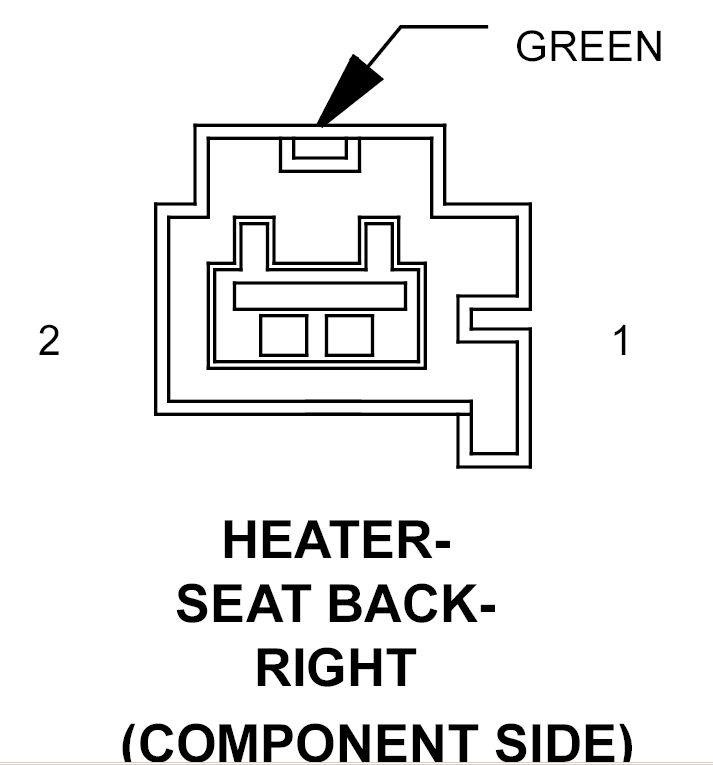

HEATER-SEAT BACK-RIGHT - GREEN 2-WAY(COMPONENT SIDE)

GXK780151Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BK GROUND
2 18LG/RD RIGHT SEAT HEATER B(+) DRIVER
