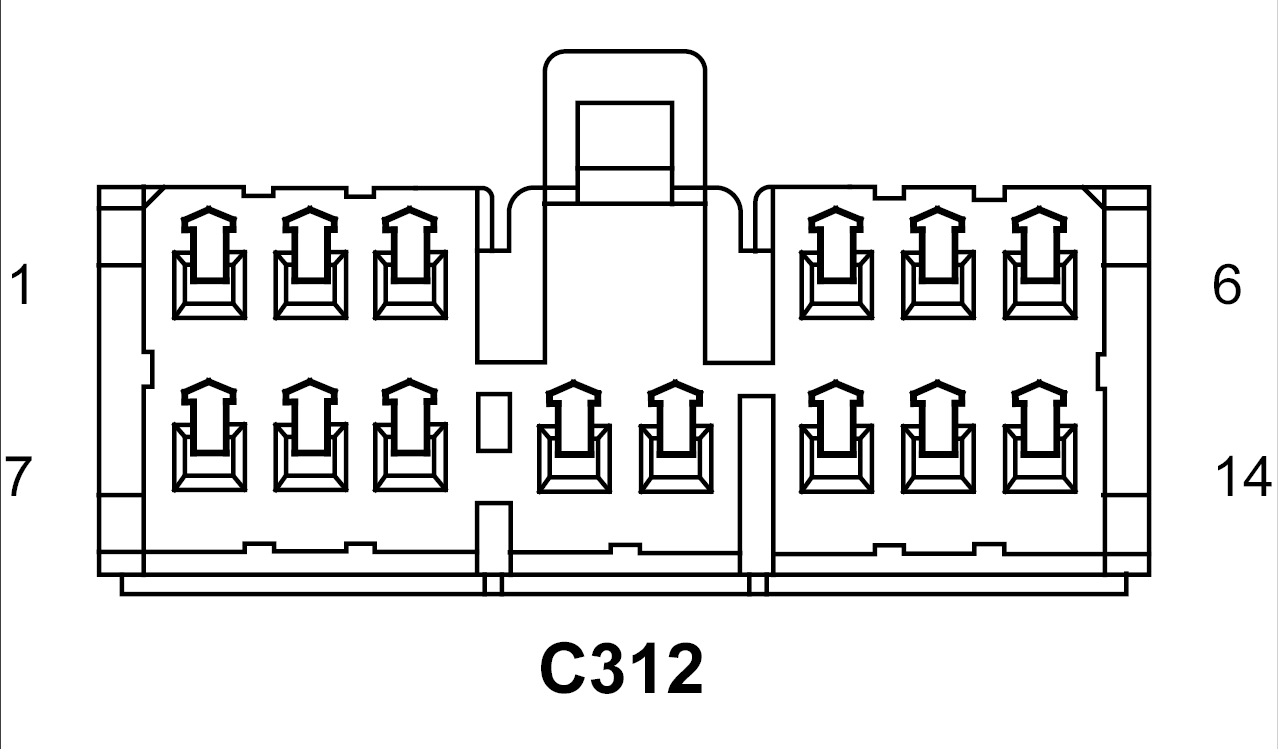

Inline Connector End View (C312 )

C312 - 14-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	M22 20YL/OR	COURTESY LAMPS DRIVER
2	G946 20LG/VT	SENSOR GROUND
3	F921 20PK/YL	FUSED RUN RELAY OUTPUT
4	D500 20WT	LIN BUS
5	-	-
6	M28 20YL/TN	GLOVE BOX/MAP LAMP DRIVER
7	G460 20DG/VT	INTRUSION RECEIVER SENSOR SIGNAL
8	A934 20RD/OR	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
9	A931 20RD	FUSED B(+)
10	A932 18RD/DG	FUSED B(+) (SUNROOF)
11	Z915 18BK	GROUND
12	A114 18GY/RD	FUSED B(+) (ELECTRONIC OVERHEAD)
13	G945 20VT/DG	SENSOR GROUND
14	Z914 16BK	GROUND (SUNROOF)

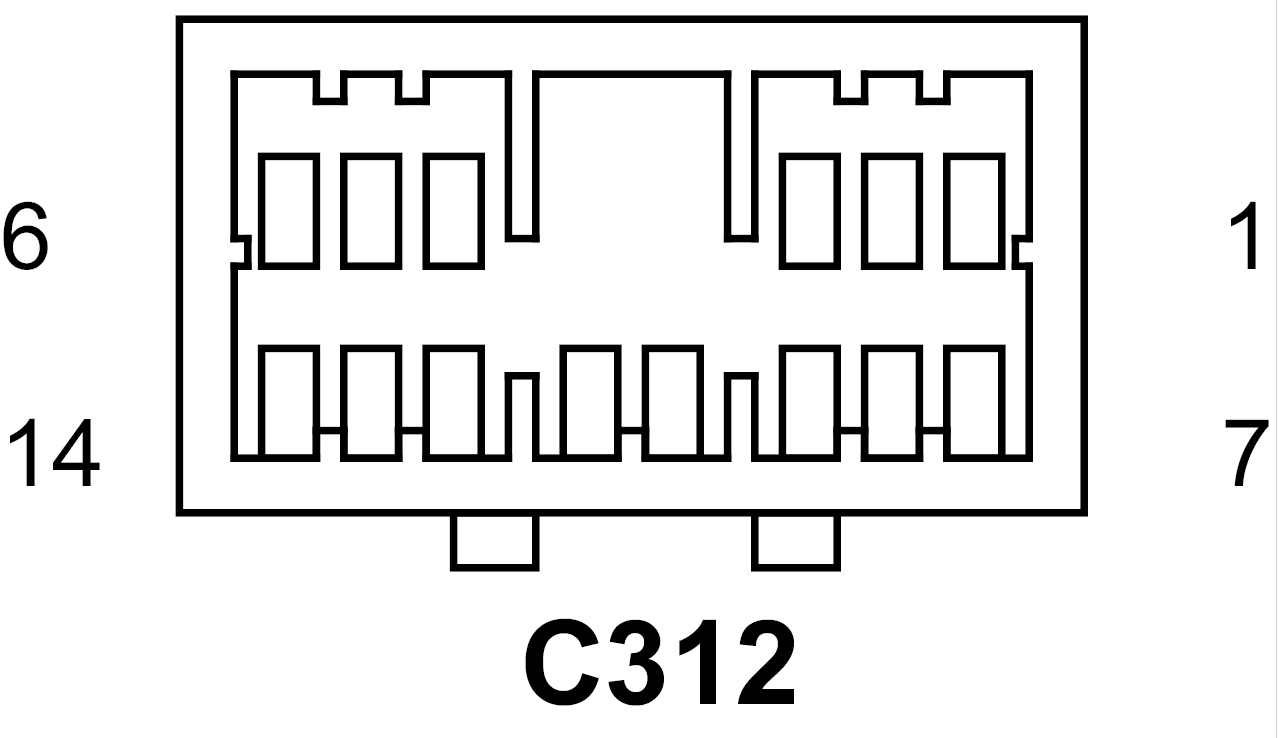

C312 - 14-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	M22 20YL/OR	COURTESY LAMPS DRIVER
2	G946 20LG/VT	SENSOR GROUND
3	F921 20PK/YL	FUSED RUN RELAY OUTPUT
4	D500 20WT	LIN BUS
5	G25 20VT/TN	DECKLID/LIFTGATE RELEASE SWITCH SENSE (POWER LIFTGATE)
6	M28 20YL/TN	GLOVE BOX/MAP LAMP DRIVER
7	G460 20DG/VT	INTRUSION RECEIVER SENSOR SIGNAL (EXPORT)
8	A934 18RD	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
9	A931 20RD	FUSED B(+)
10	A932 18RD	FUSED B(+)
11	Z915 16BK	GROUND (EXCEPT EXPORT EXCEPT DVD)
11	Z915 18BK	GROUND (EXPORT/EXCEPT EXPORT DVD)
12	A114 18GY/RD	FUSED B(+)
13	G945 20VT/DG	SENSOR GROUND (EXPORT)
14	Z914 16BK	GROUND
