Fuel Quantity Solenoid (Diesel) Connector End View
Fuel Quantity Solenoid (Diesel) Connector End View

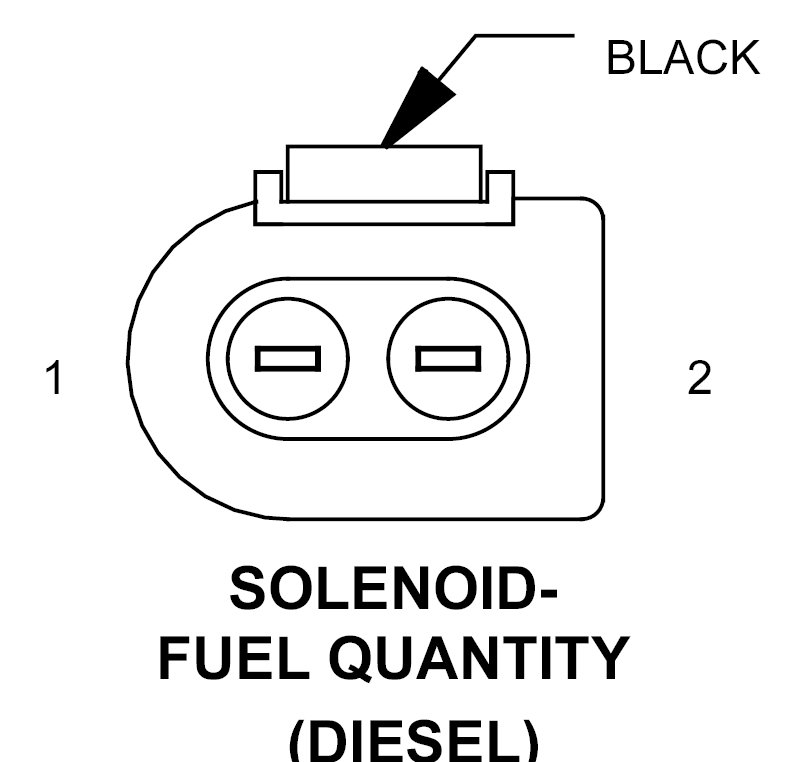

SOLENOID-FUEL QUANTITY - BLACK 2-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K365 18YL/BK
FUEL QUANTITY SOLENOID CONTROL
2
K366 18BK/BL/DG
FUEL QUANTITY SOLENOID 12 VOLT SUPPLY
Courtesy of CHRYSLER CORP.
