Transfer Case - NV140

WARNING: This page is about a different variant/trim than selected.

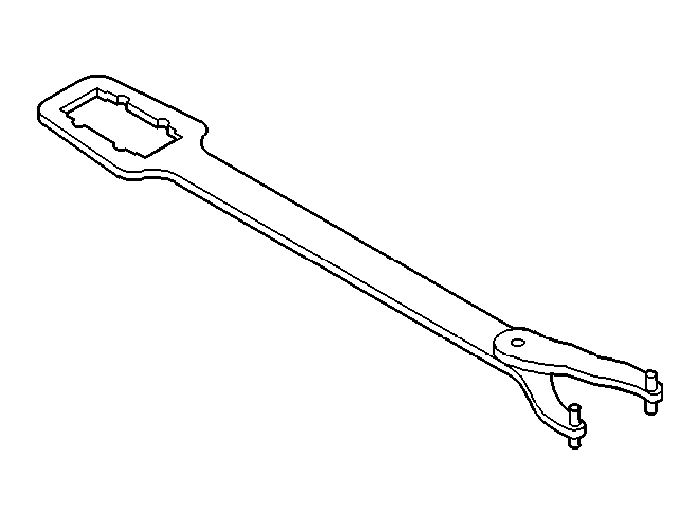

Fig 1: Flange Wrench C-3281

Courtesy of CHRYSLER LLC

Fig 2: Installer C-3972-A

Courtesy of CHRYSLER LLC

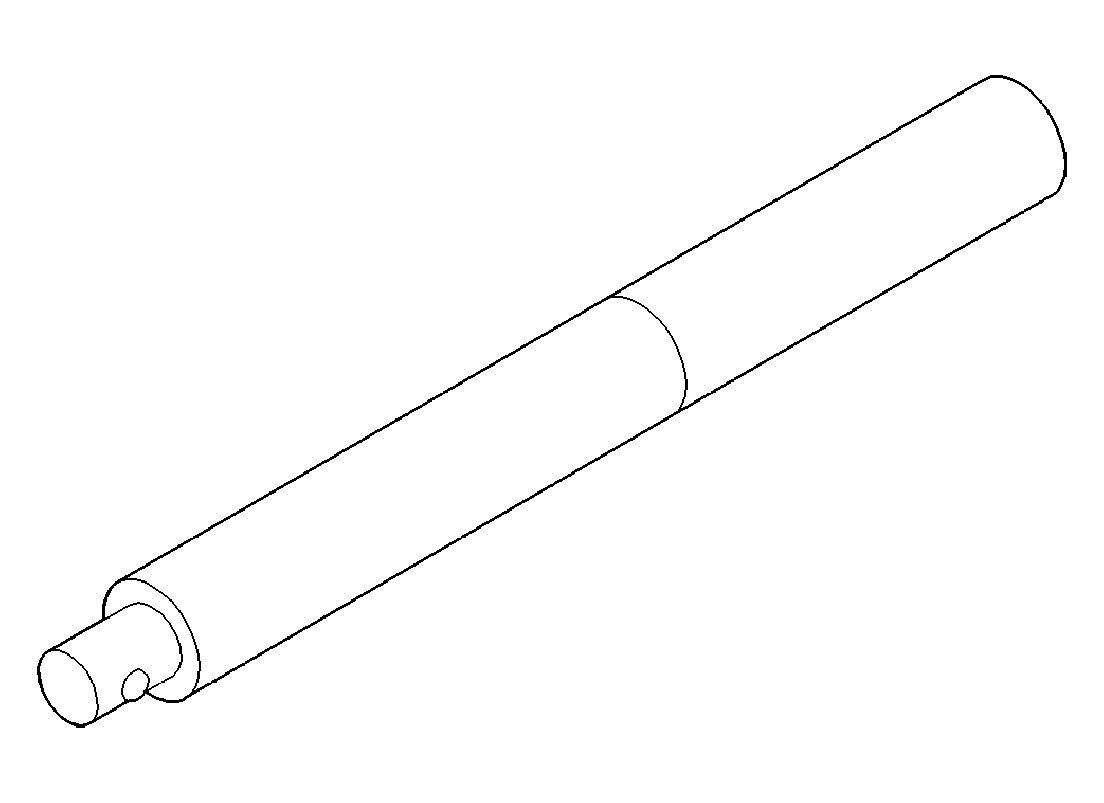

Fig 3: Universal Driver Handle - C4171

Courtesy of CHRYSLER LLC

Fig 4: Bearing & Bushing Installer 5066

Courtesy of CHRYSLER LLC

Fig 5: Installer, Seal - 6560

Courtesy of CHRYSLER LLC

Fig 6: Installer - 7829A

Courtesy of CHRYSLER LLC

Fig 7: Installer - 8152

Courtesy of CHRYSLER LLC

Fig 8: Installer - 8693A

Courtesy of CHRYSLER LLC

Fig 9: Installer, Seal - 9672

Courtesy of CHRYSLER LLC
