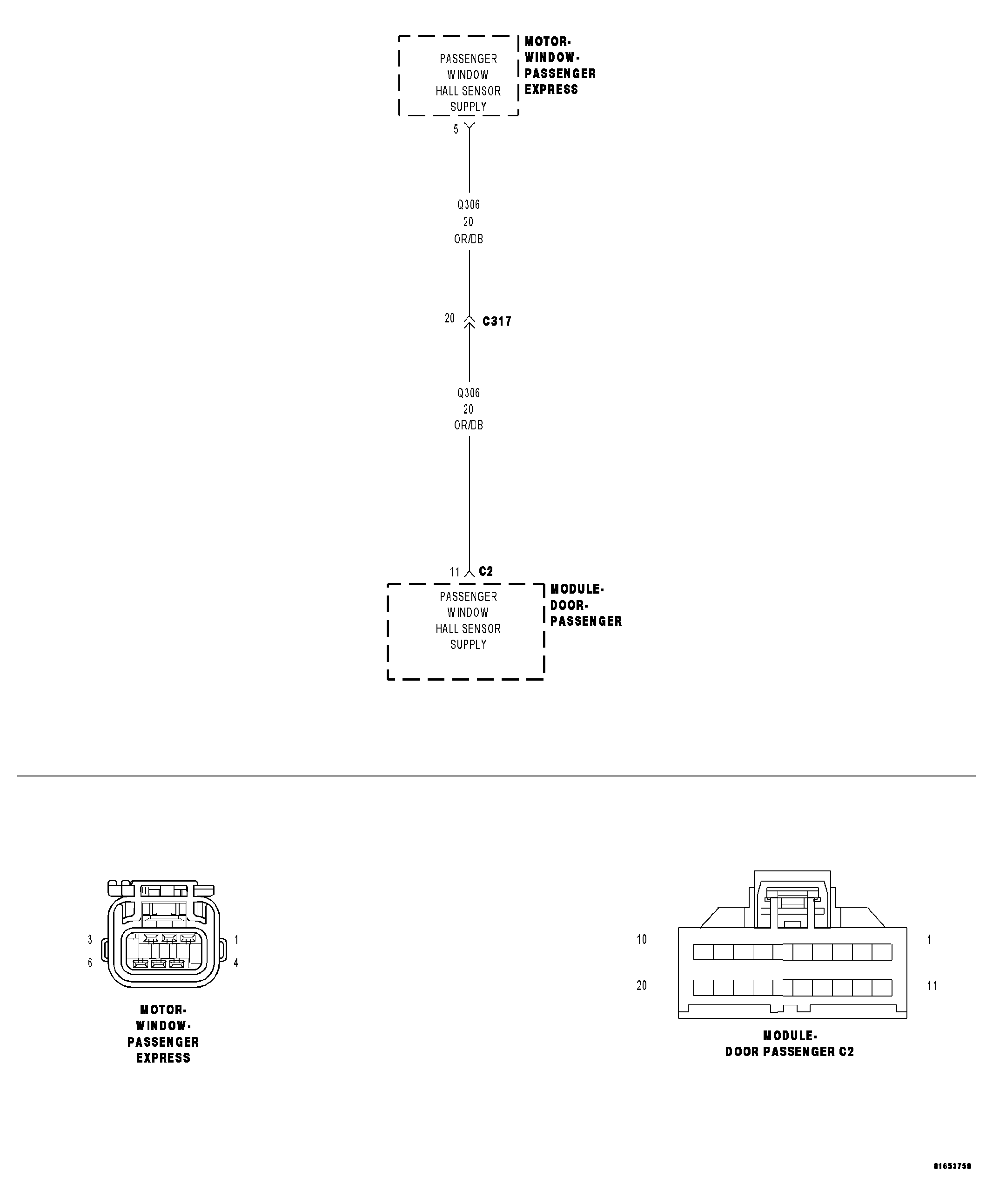

Home >> Jeep >> 2007 >> Commander Base, 4.7 P, 4WD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> Power Windows - Electrical Diagnostics >> DTC Troubleshooting >> B1863-Window Position Sensor Power Supply Low - PDM >> Circuit Schematic
