Inline Connector End View (C313 )

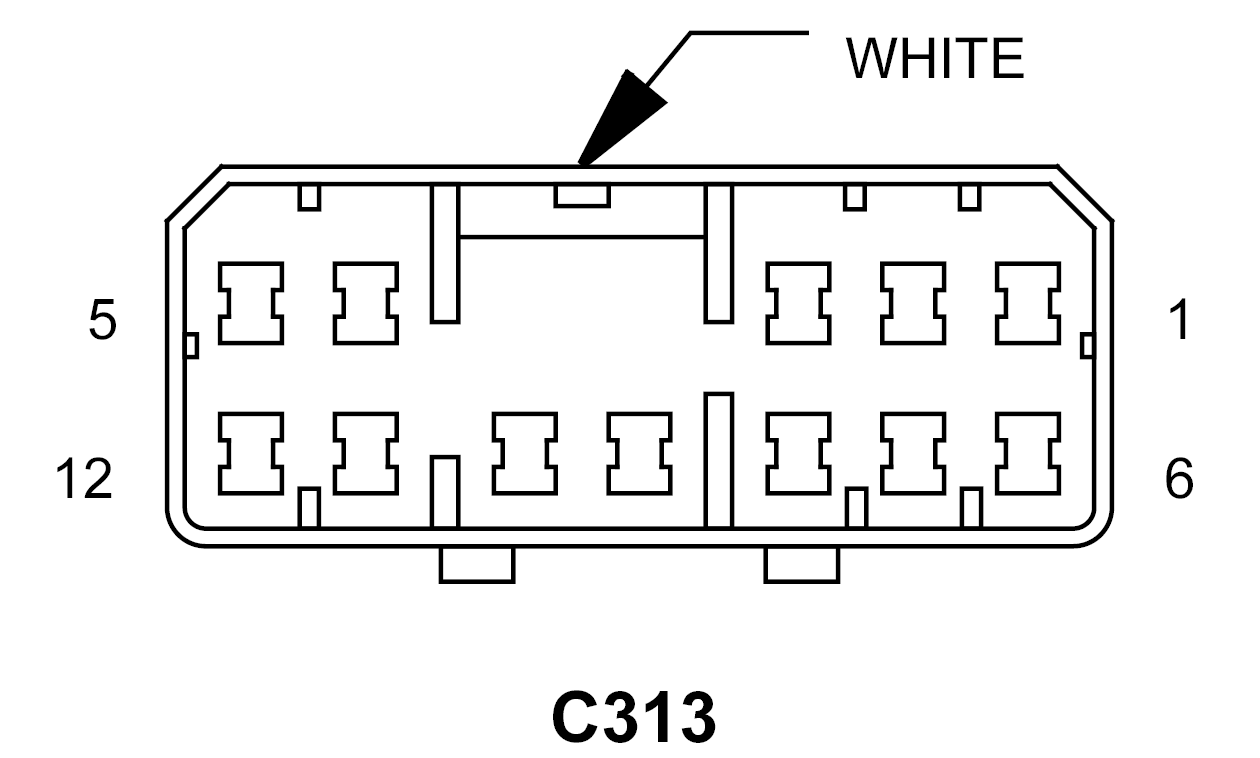

C313 - WHITE 12-WAYFEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | S50 20GY/WT | DHS 5 VOLT SUPPLY (DHS) |
| 2 | S51 20GY/DB | SUSPENSION SENSOR LATERAL ACCELERATION SENSE (DHS) |
| 3 | S950 20GY/TN | DHS SENSOR RETURN (DHS) |
| 4 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) (AUTO DAY/NIGHT MIRROR) |
| 5 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) (AUTO DAY/NIGHT MIRROR) |
| 6 | L1 18WT/LG | BACKUP LAMP FEED (AUTO DAY/NIGHT MIRROR) |
| 7 | D54 20WT | CAN B BUS (-) |
| 8 | D55 20WT/OR | CAN B BUS (+) |
| 9 | A645 20RD/VT | INTRUSION TRANSMITTER SENSOR SIGNAL |
| 10 | D777 20WT/GY | REAR PARK ASSIST DISPLAY SIGNAL (PARK ASSIST) |
| 11 | Z171 20GY/BK | GROUND (PARK ASSIST) |
| 12 | X777 20LG/GY | PARK ASSIST DISPLAY SUPPLY (PARK ASSIST) |

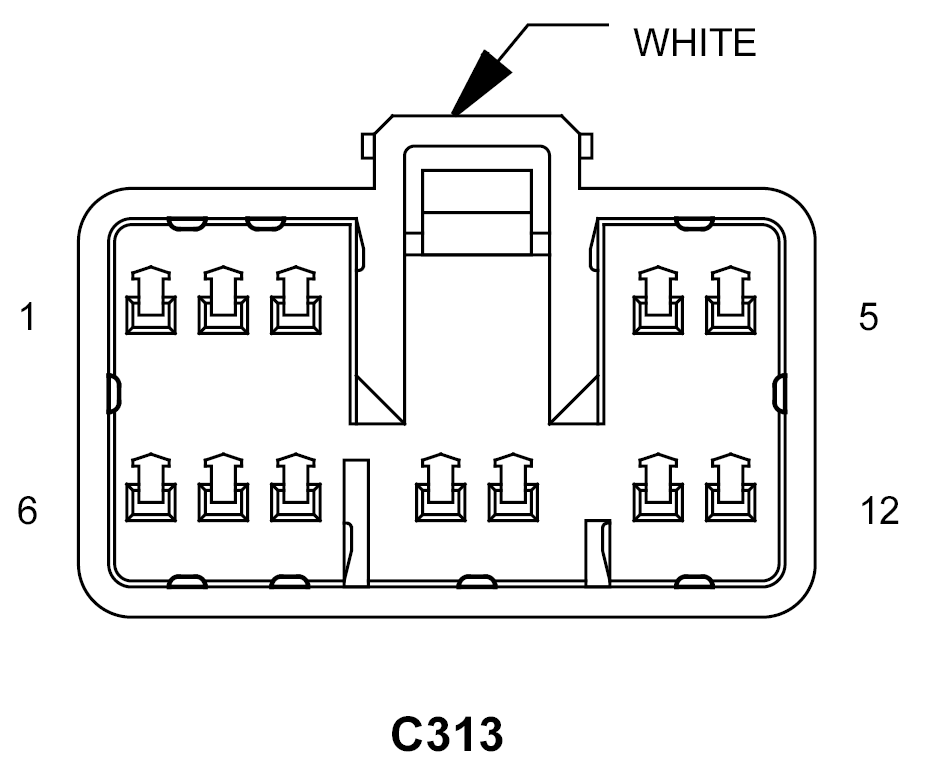

C313 - WHITE 12-WAYMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) (AUTO DAY/NIGHT MIRROR) |
| 5 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) (AUTO DAY/NIGHT MIRROR) |
| 6 | L1 16WT/LG | BACKUP LAMP FEED |
| 7 | D54 20WT | CAN B BUS (-) |
| 8 | D55 20WT/OR | CAN B BUS (+) |
| 9 | A645 20RD/VT | INTRUSION TRANSMITTER SENSOR SIGNAL |
| 10 | D777 20WT/GY | REAR PARK ASSIST DISPLAY SIGNAL (PARK ASSIST) |
| 11 | Z171 20GY/BK | GROUND (PARK ASSIST) |
| 12 | X777 20LG/GY | PARK ASSIST DISPLAY SUPPLY (PARK ASSIST) |
