Inline (Export) Connector End View (C322)

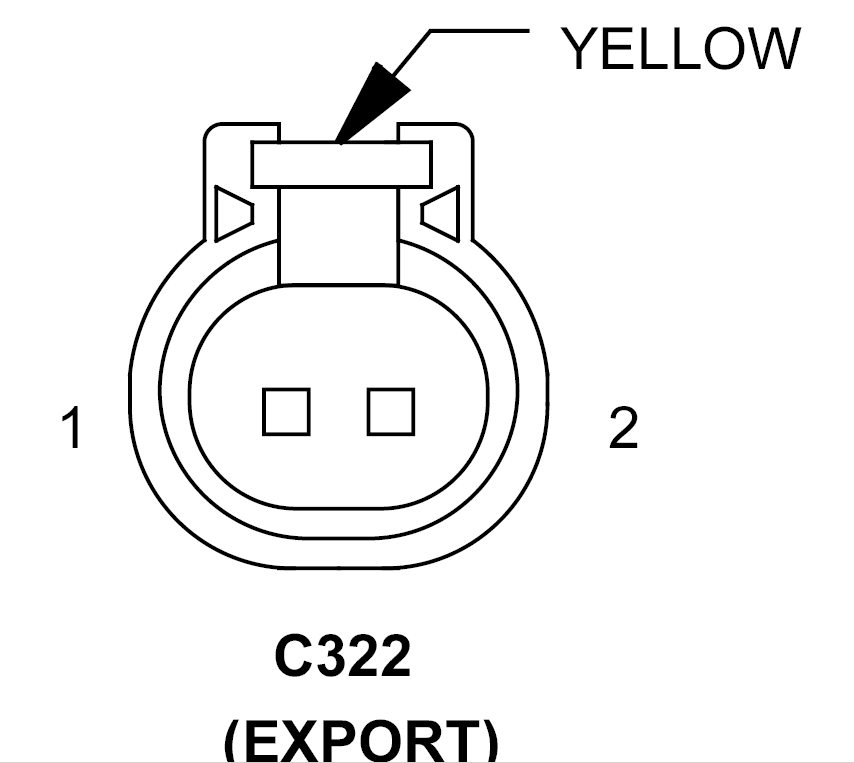

C322 - YELLOW 2-WAY(EXPORT) FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R54 20LB/YL |
PASSENGER SEAT BELT TENSIONER LINE 2 |
| 2 |
R56 20LB/DG |
PASSENGER SEAT BELT TENSIONER LINE 1 |

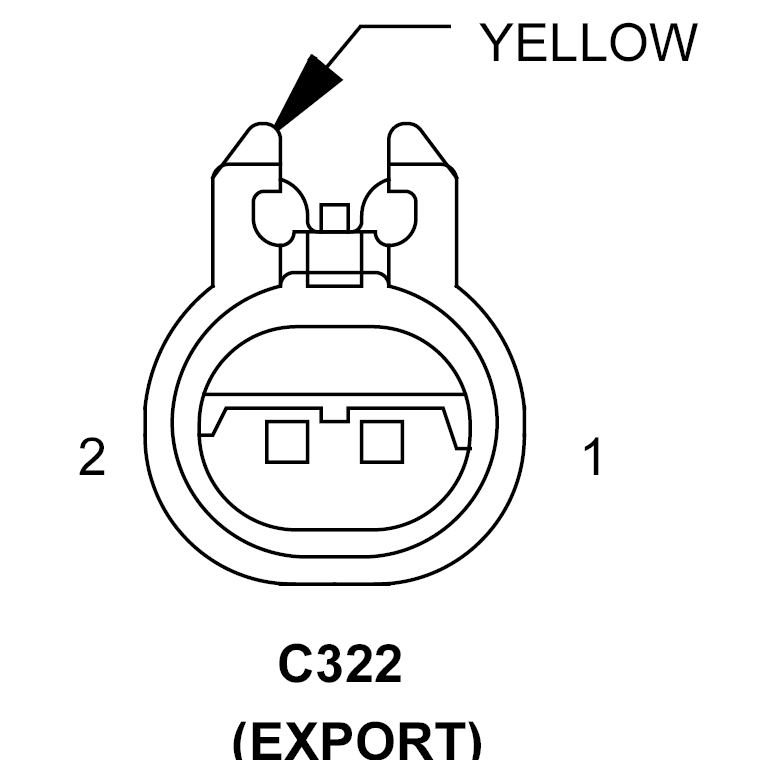

C322 - YELLOW 2-WAY(EXPORT) MALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R54 20LB/YL |
PASSENGER SEAT BELT TENSIONER LINE 2 |
| 2 |
R56 20LB/DG |
PASSENGER SEAT BELT TENSIONER LINE 1 |
