Home >> Jeep >> 2007 >> Commander Base, 4.7 N, AWD >> Repair and Diagnosis >> Engine Performance >> Mode 6 - CHRYSLER >> 1996

Mode 6 - CHRYSLER: 1996

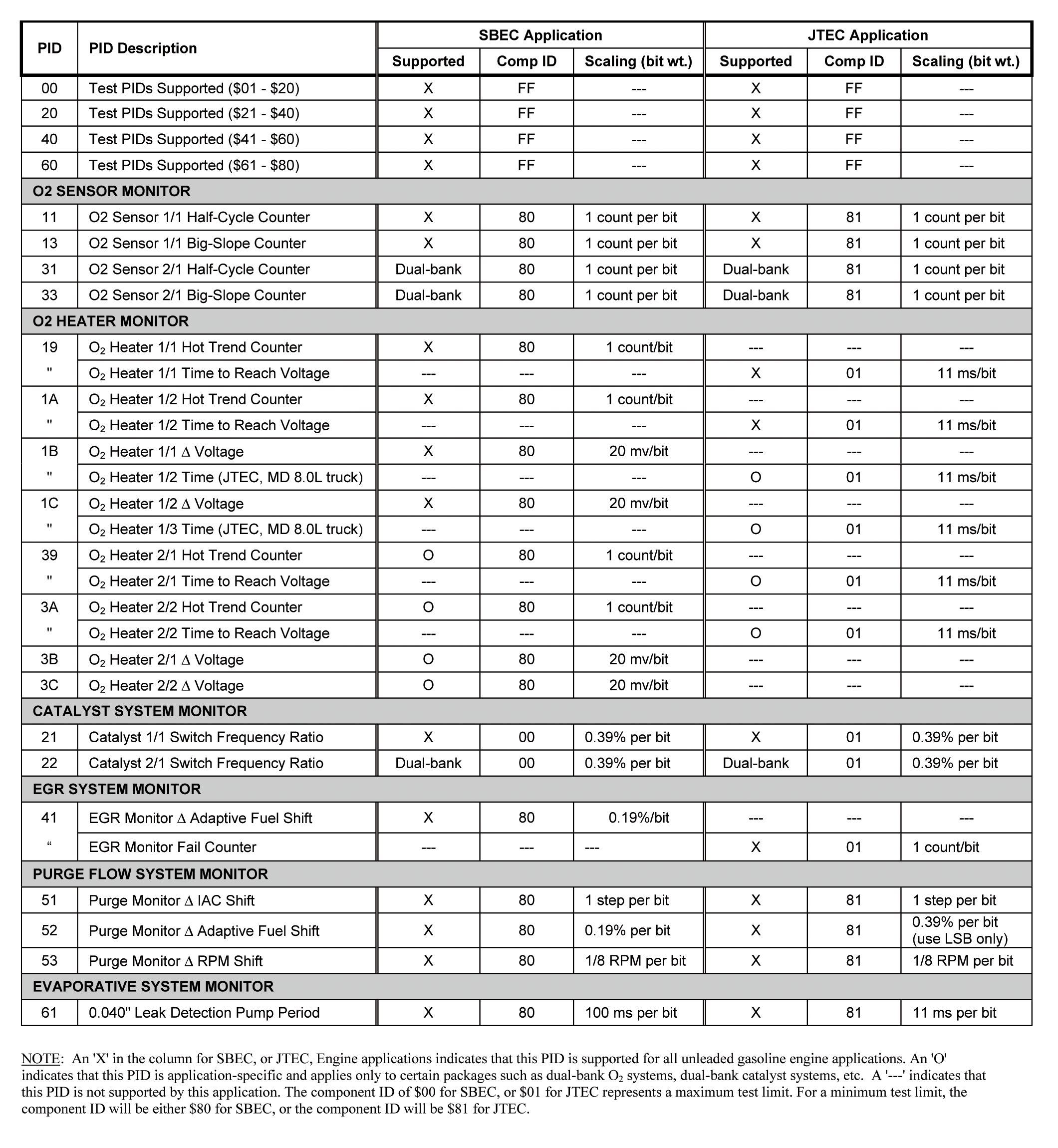

Fig 1: Mode $06 Data For SBEC & JTEC Engine Controllers

G00414403

Courtesy of CHRYSLER CORP.
